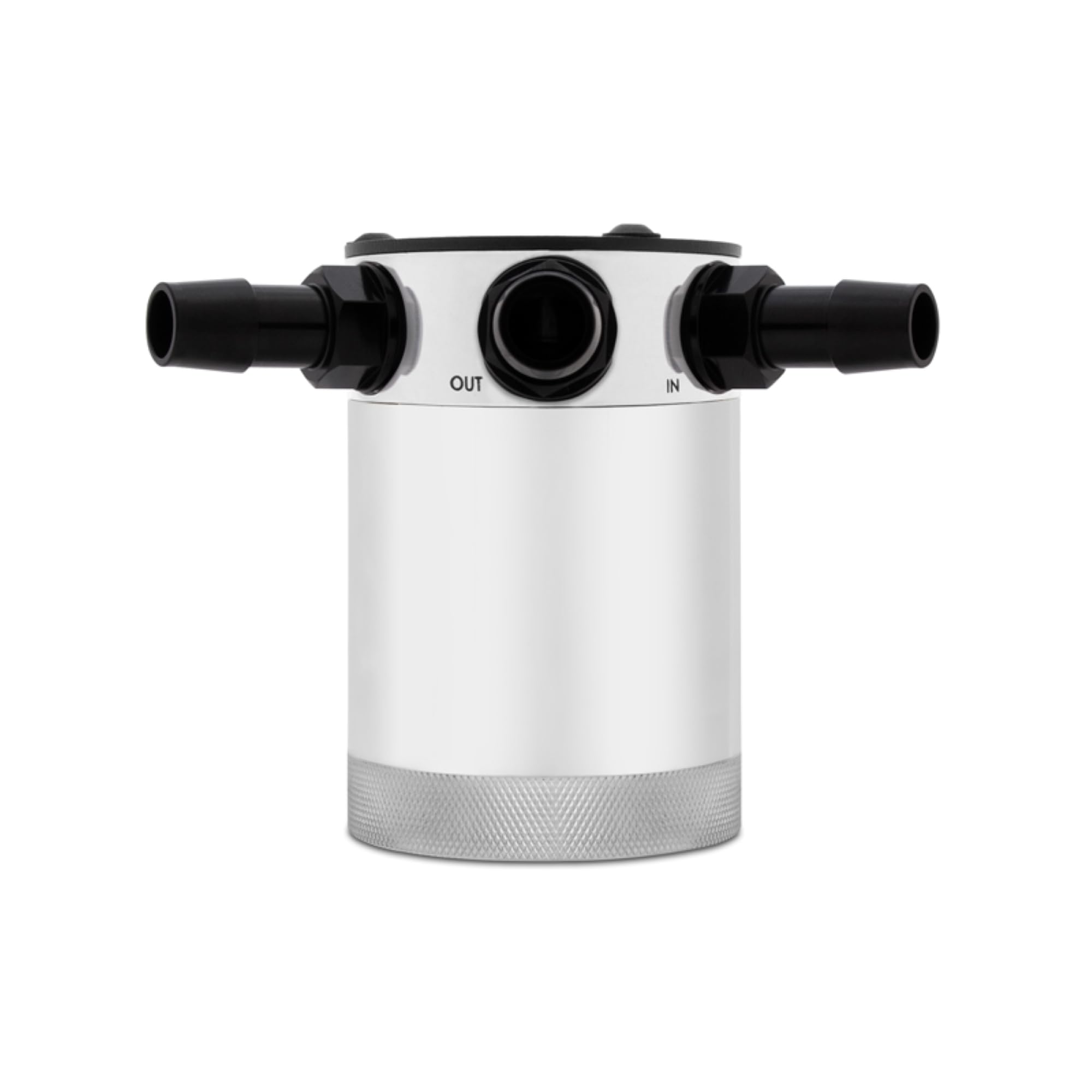

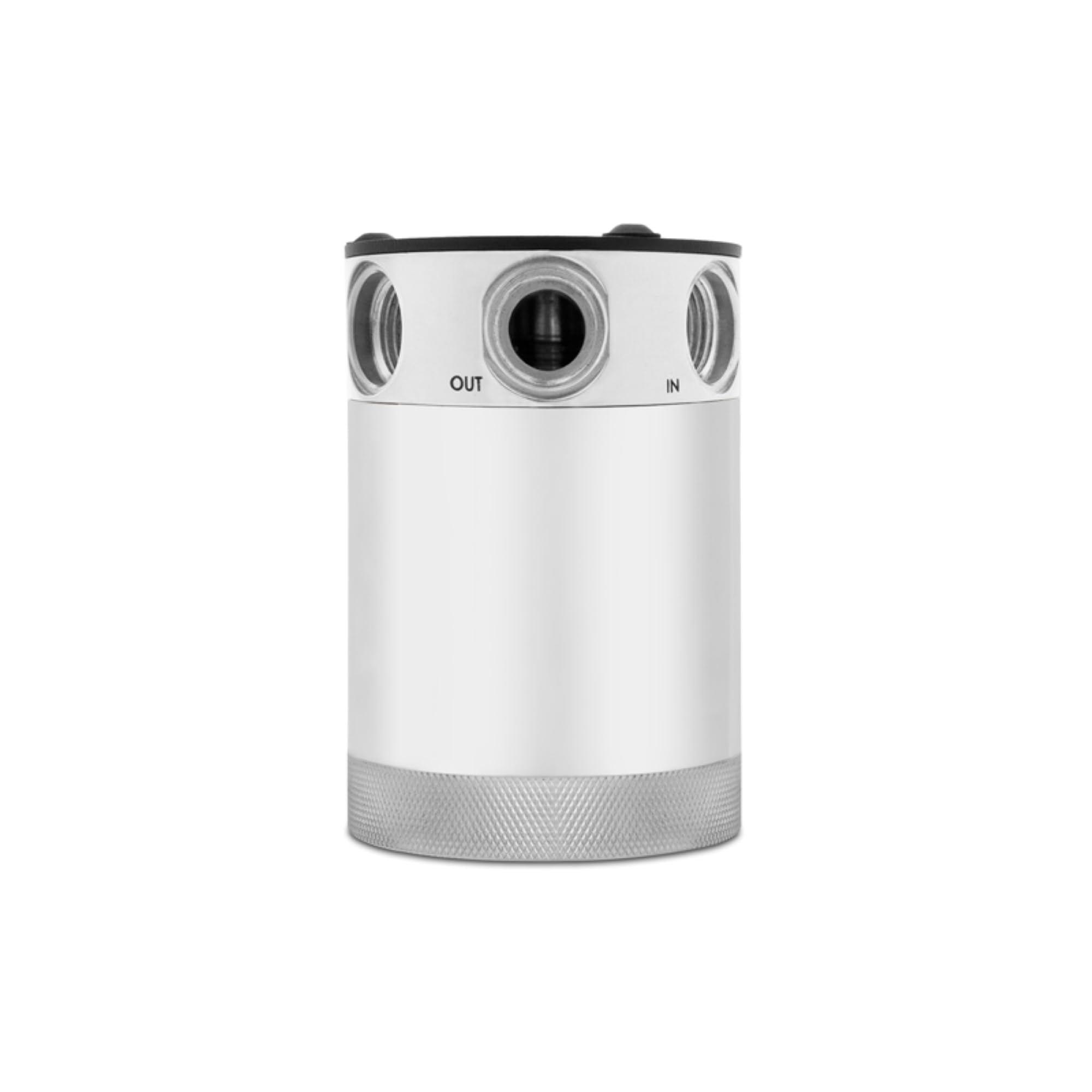

Mishimoto proudly announces the release of our Compact Baffled Oil Catch Can, available in a three-port or two-port option.
With years of research and development time on oil catch cans, Mishimoto has created the most effective compact oil catch can available.
The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the air of the PCV/CCV that would normally be routed back to your intake.

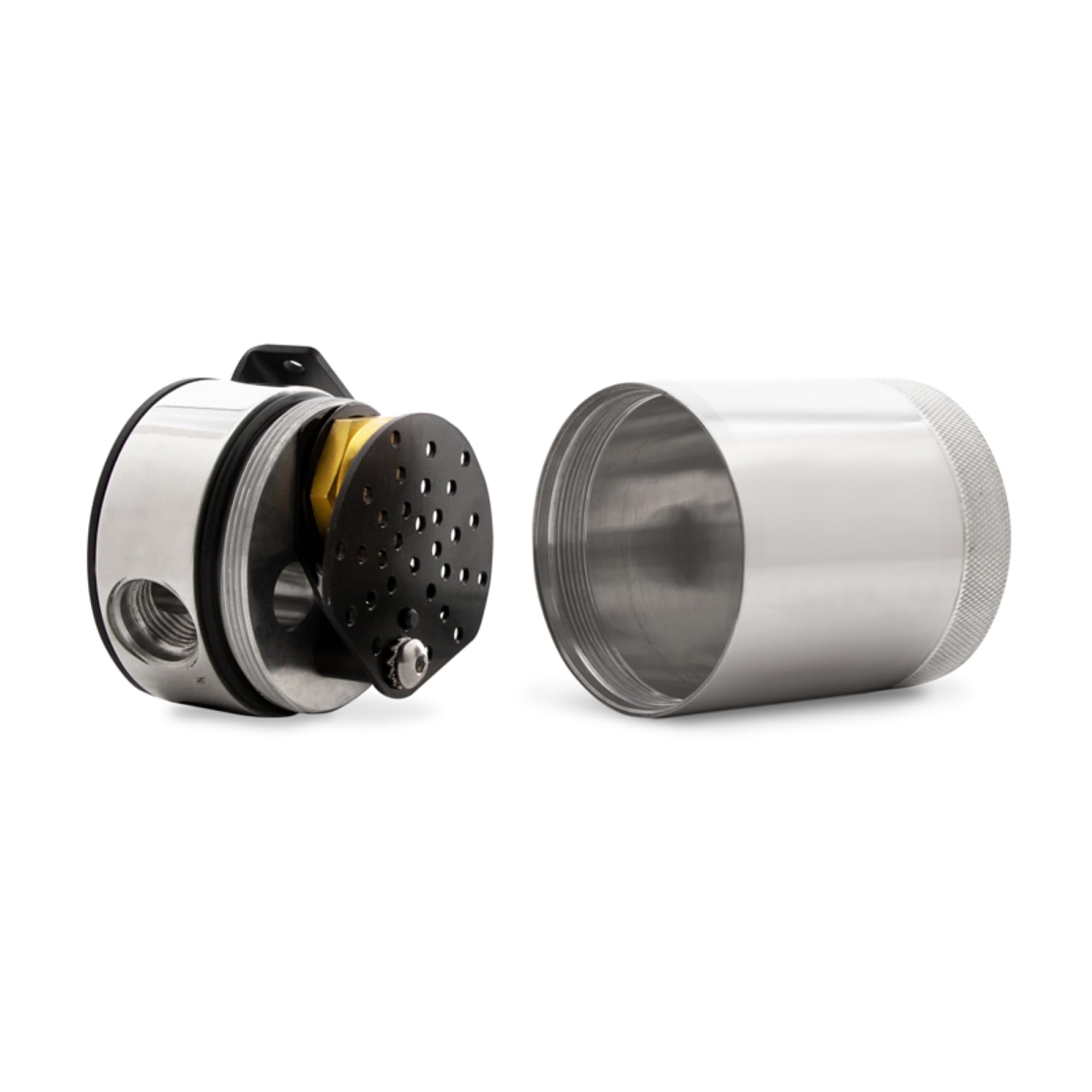

The internal air diverter allows the air to turbulates longer and ensures all the oil sinks to the bottom of the can, leaving only clean air to pass through the 50 micron bronze filter to the intake.
An internal baffle keeps the collected oil from splashing around under race conditions.
This oil catch can features one inlet and one outlet port for easy installation on PCV and CCV systems.

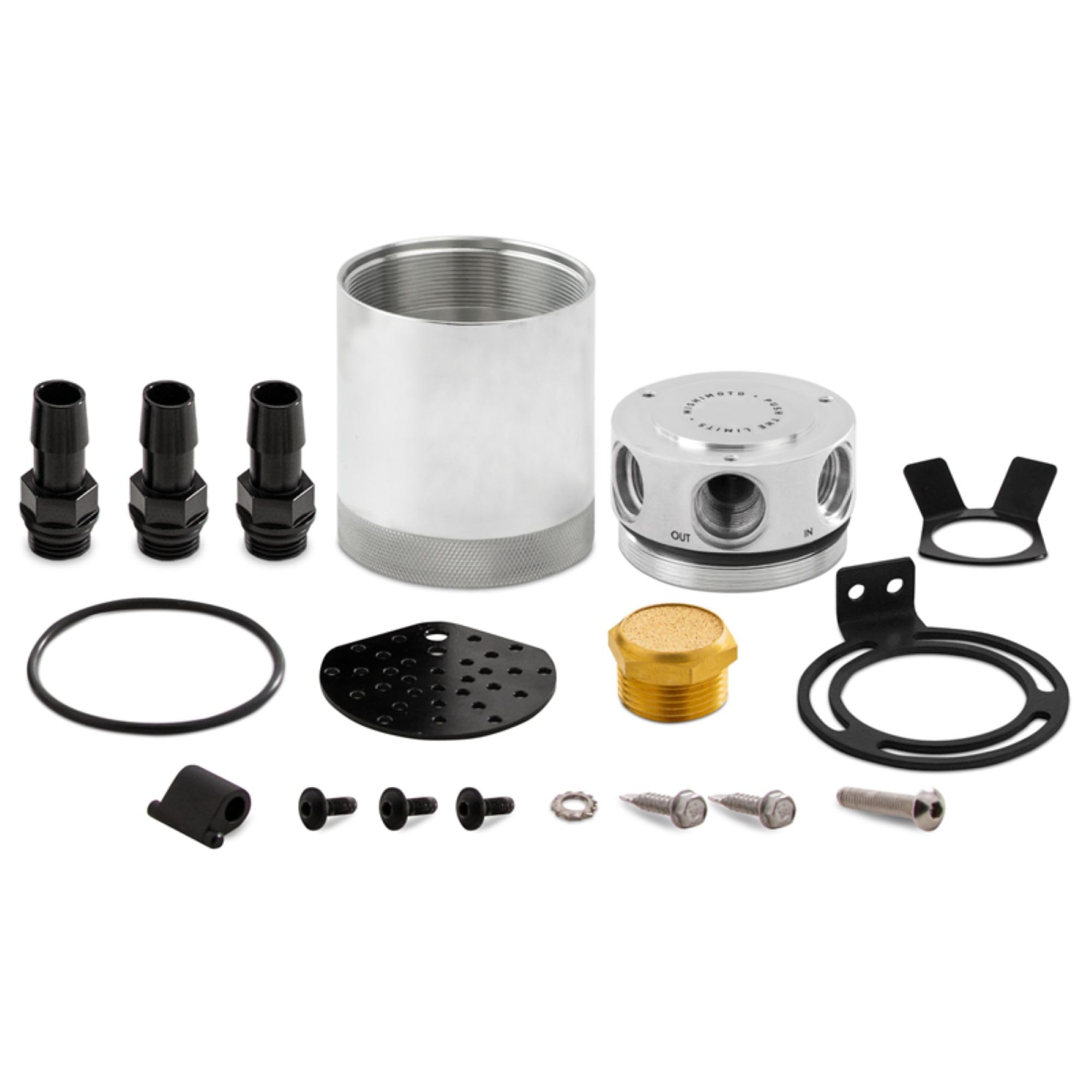

The can is made from 100% billet, 6061 aluminum and features 3/8" NPT threads at the inlet, outlet, and drain area, including two black nylon fittings to make installation easy.

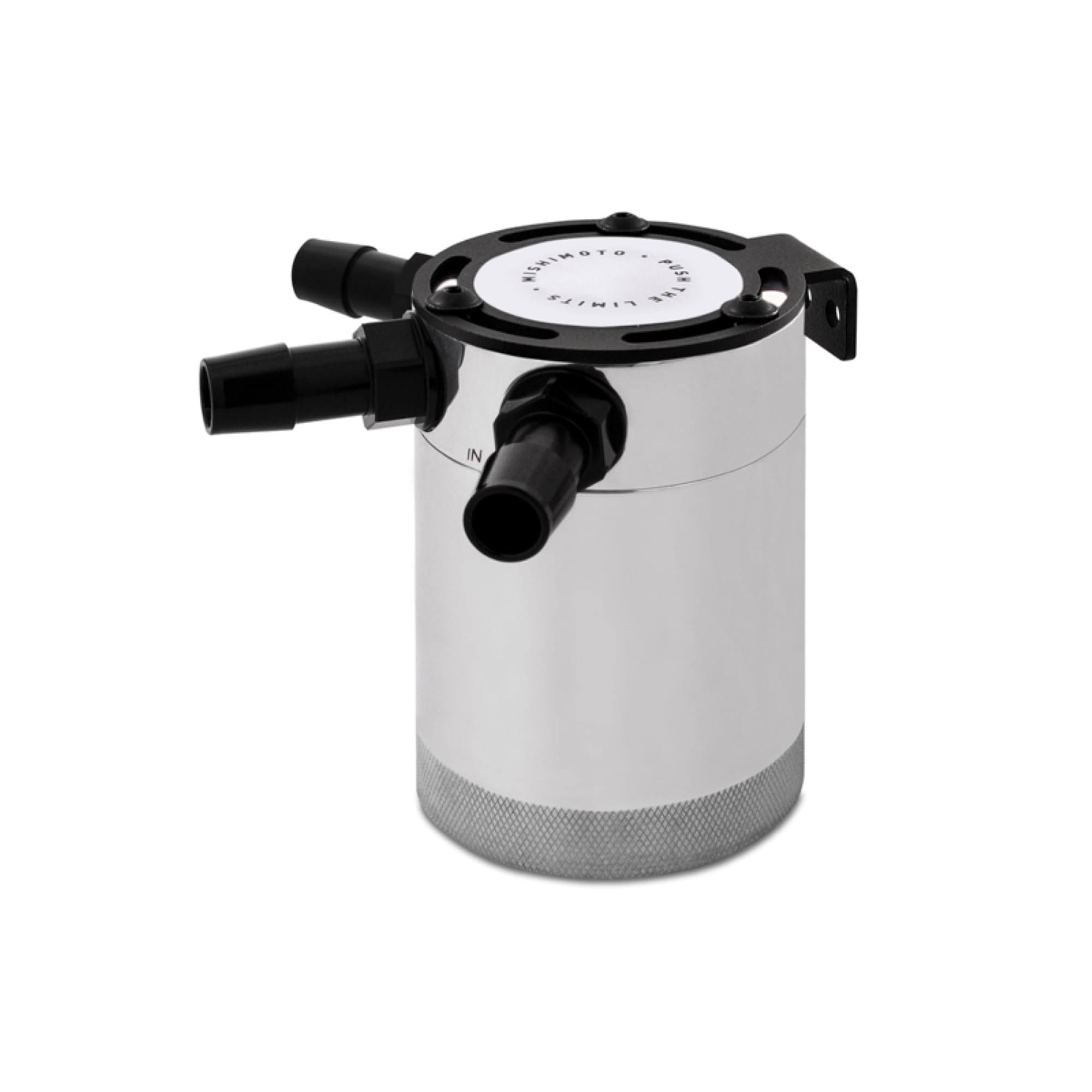

For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles.
To facilitate maintenance, the drain plug can be removed to allow for a return to the oil pan.
The can is also 100% washable, unlike many other cans that require you to replace your filtration system.
Our catch cans differ from most air-oil-separator (AOS) systems on several levels.
First, our catch cans are not heated.
This means that all blow-by can condense in the can, including low-octane oil vapors and contaminated fuel vapors.
Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently.
If you've seen what we have seen in the bottom of our catch cans, you won't want that draining back into your oil either.
