BRAND NEW SET of 6 MAHLE Pistons.
OEM (Original Equipment Manufacturer for Cummins) are MAHLE pistons.
Compatible with: 2003 - 2004 &1/2, 5.9 Liter 6BT 24 Valve Dodge Cummins I6 Turbo Diesel Engines VIN code: C (8th character of VIN#).
Applications including all: 2003 - 2004.5 Pickup Trucks, Cutaway, Tow-truck and Van Applications.
THIS LISTING IS FOR 6 +.020" OVERSIZED PISTONs.

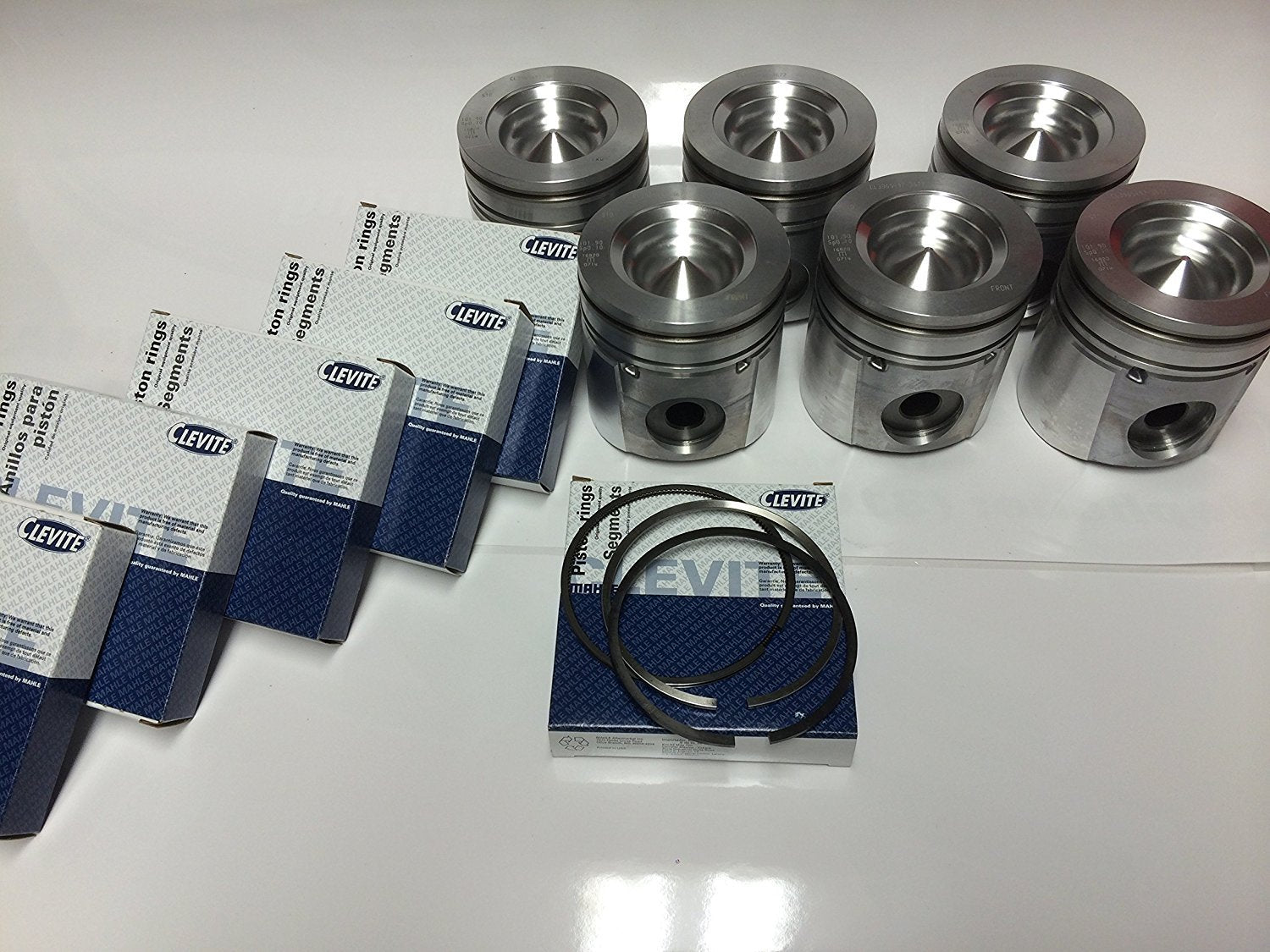

Please pay close attention to the Combustion Bowls in the Top Center of the Pistons.
(see pictures) They MUST MATCH the bowls in your pistons.
MAHLE Pistons: 1.
Ni-resist top grooves to control groove wear.
2.
Balanced for smooth engine operation.
3.
The M124 Piston material (used in these pistons) is a highly evolved Eutectic material, which contains approximately 12% silicon for excellent strength and excellent thermal expansion properties.
The Eutectic material is chosen for diesel engines because it bonds better with the ring land or ring groove inserts used to strengthen and better support the piston rings in high performance/ high load diesel applications.
The Eutectic material with MAHLE uses ring groove inserts to make a better piston than a forged material which does not hold the insert very well.
MAHLE Piston Pins: 1.
High strength steels meet structural requirements to prevent pin breakage or deflection.
2.
Case hardened to provide long lasting wear surfaces.
3.
A high degree of dimensional and surface finish control are the final requirements for strength and long life.
