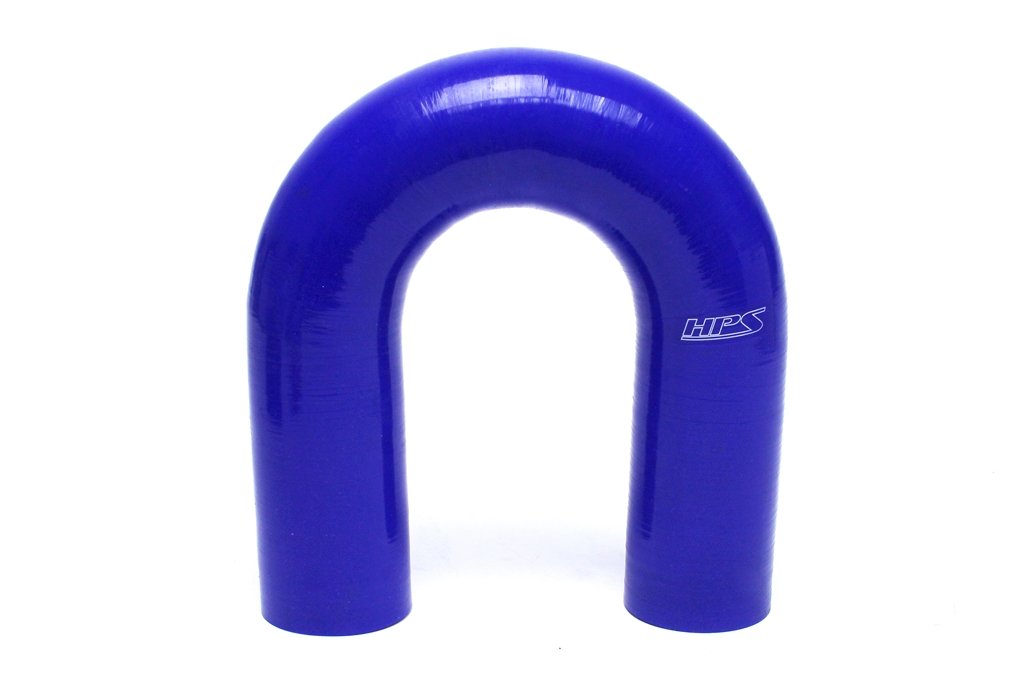

HPS 2-1/4" (57mm) High Temp 4-ply Reinforced Silicone 180 Degree U Bend Elbow Coupler Hose exceeds SAEJ20 industry standards and is ideal for heavy duty pressure connections while offering excellent resistance for high temperature applications.
Designed and engineered to meet high performance requirements specified in various industry standards, it is suitable for marine and industrial use, custom turbo or intercooler piping fabrication, and DIY intake or radiator cooling systems.
Technical Specification: Product Type: Silicone 180 Degree U Bend Elbow Coupler Hose.
Temperature Range: -65 deg.
F to +350 deg.
F (177 deg.
C).
Reinforced Layer: 4-ply.

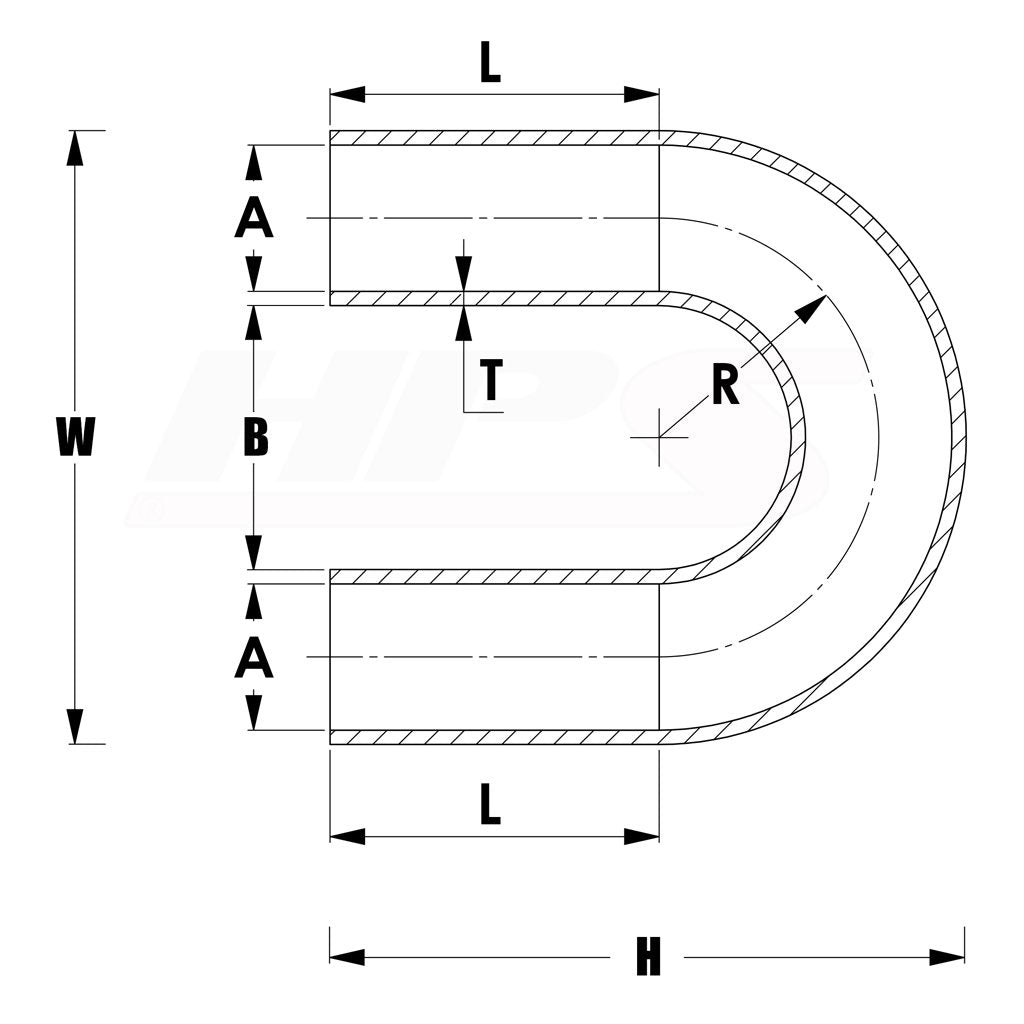

Hose Inside Diameter: 2.25" (57mm).
Hose Outside Diameter: 2.64" (67mm).
Leg Length on each side: 4-1/2".
Center Line Radius: 3-1/4".
Outer Width (W): 9-1/4".
Inside Width (B): 3-3/4".
Overall Height: 9-1/2".
Wall Thickness: 4.5mm (+/- 0.5mm).
Color: Blue.
UV and ozone resistant.
Remark: Silicone hose is compatible with water and coolant, however, it is NOT compatible with fuel or oil.
