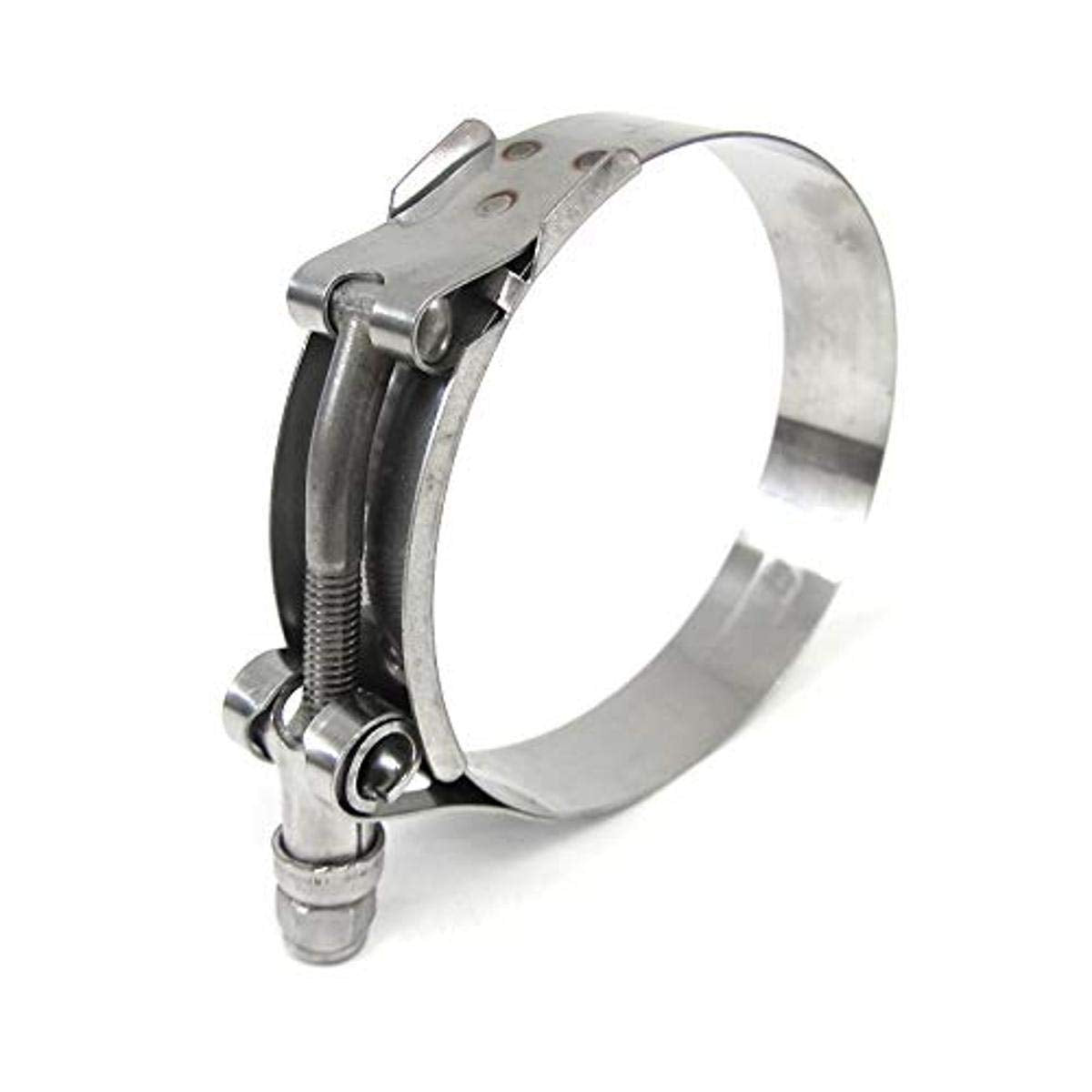

HPS 100% marine grade 316 stainless steel T-bolt hose clamps size # 80 with an effective range of 3.39" - 3.7" (86mm-94mm) perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp.
Therefore, 316 T-bolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems.
The high strength 316 T-bolt clamps are also utilized in applications such as water treatment and sewage systems, military, filter bags, telecommunication devices, sanitary systems, and food and pharmaceutical processing equipment.
Technical Specification: Size # 80.
Effective Size Range: 3.39" - 3.7" (86mm-94mm).
100% Marine Grade 316 Stainless Steel Band, Bolt, and Nut.
High strength with superior welded construction.
Band thickness: 0.6mm.
Maximum Torque Spec 75 in.
lbs.
Can be used with HPS 3-1/8" silicone hoses.
Part Number: 316-SSTC-86-94.
UPC: 648044880976.
Quantity: 1.
REMARK: Two clamps are recommended to be used on each end of a wet exhaust installation.
