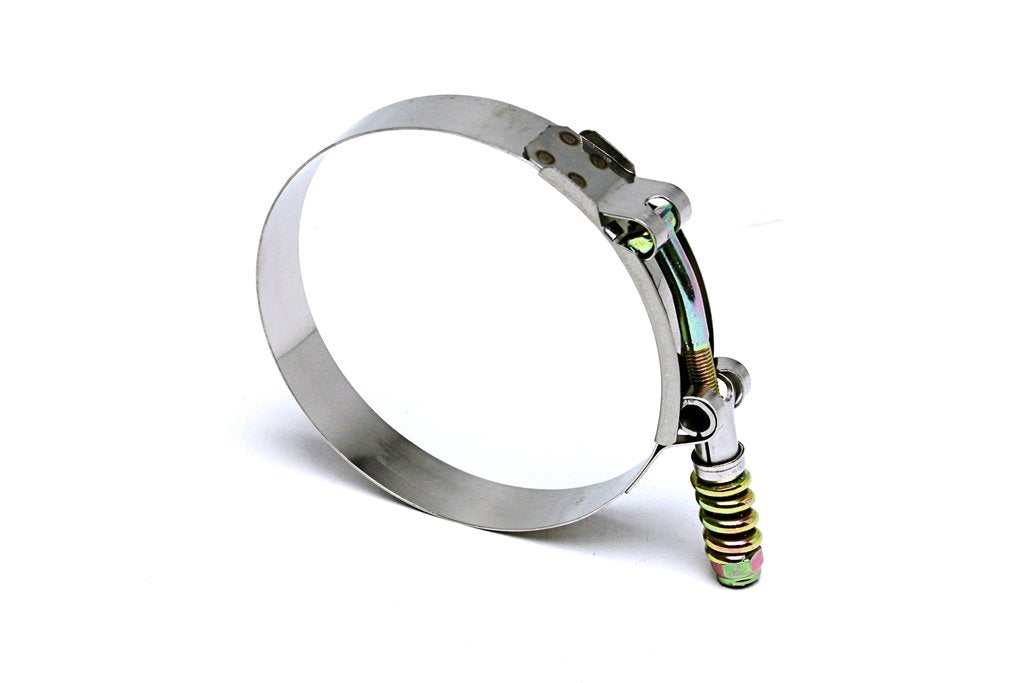

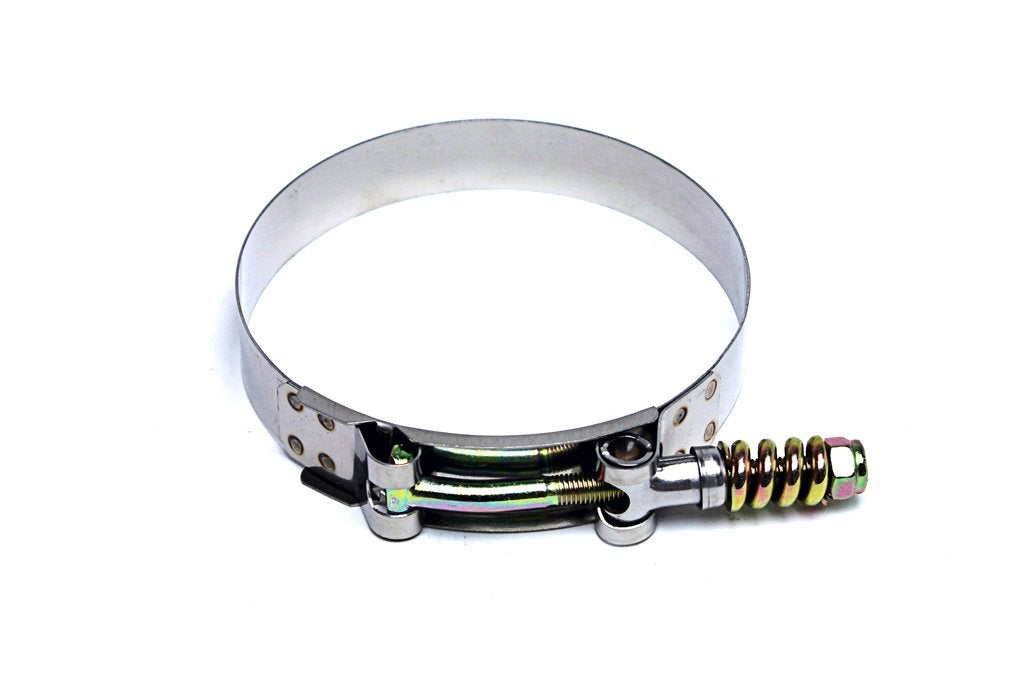

HPS Stainless Steel Spring Loaded T-Bolt Clamp 3.5"-3.82" (89mm-97mm) for 3.25" ID hose provides a high strength and a 360 degree seal.
The spring added is there to adjust automatically the clamp diameter to compensate for the expansion and contraction of hose when temperatures or pressure fluctuate.
HPS spring loaded clamps are reusable.
Designed to meet or exceed industrial grade specifications.
The clamps have a floating bridge and rolled edges to protect soft hose.
The lock nut includes a nylon insert to prevent backing out.
Tighten with a 7/16 inch socket wrench.
The HPS constant tension t bolt clamps are widely used in the charge air cooler system (cac), aircraft, automotive, truck and heavy-duty vehicle, industrial, hardware/plumbing, and marine industries.
Technical Specification: Size #84.
Effective Size Range: 3.5"-3.82" (89mm-97mm).
Superior welded construction.
Floating bridge and rolled edges protect soft hoses.
3/4 inch wide 300 Series Stainless Steel Band and Trunnion.
Zinc Plated T-bolt, Nut and Springs.
7/16 inch head Nylon Nut.
Max.
Torque Spec: 75 in.
lbs.
Quantity: 1.
