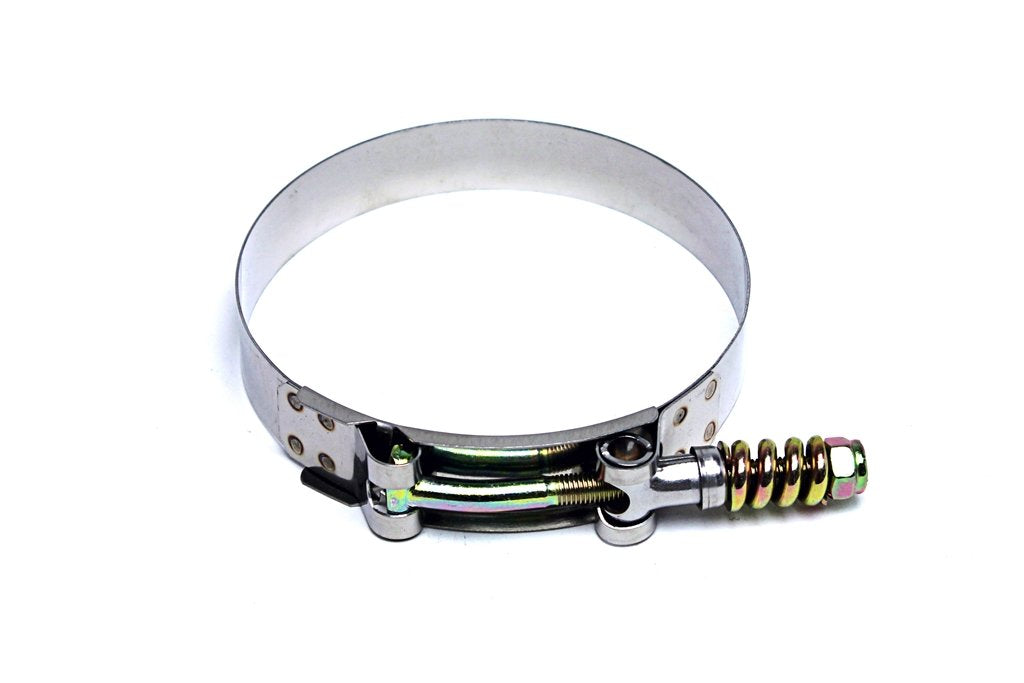

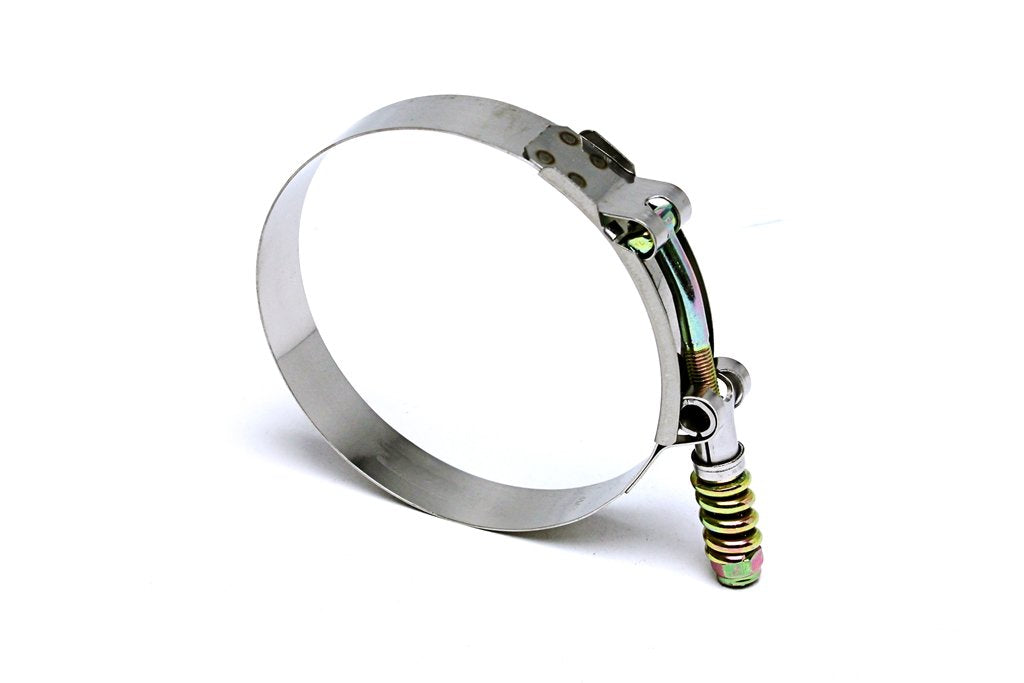

HPS Stainless Steel Spring Loaded T-Bolt Clamp 3.62"-3.94" (92mm-100mm) is for 3-3/8" or 3-1/2" inch ID hose and provides high strength with a 360 degree seal.
The spring added automatically adjusts the clamp diameter to compensate for hose expansion and contraction when temperatures or pressure fluctuate.
HPS spring loaded clamps are reusable.
Designed to meet or exceed industrial grade specifications.
The clamp features a floating bridge and rolled edges to protect soft hose.
The lock nut includes a nylon insert to prevent backing out.
Tightening requires a 7/16 inch socket wrench.
The HPS constant tension t-bolt clamps are widely used in charge air cooler systems (cac), aircraft, automotive, trucks, heavy-duty vehicles, industrial, hardware/plumbing, and marine industries.
Technical Specification: Size #88.
Effective Size Range: 3.62"-3.94" (92mm-100mm).
Superior welded construction.
Floating bridge and rolled edges protect soft hoses.
3/4 inch wide 300 Series Stainless Steel Band and Trunnion.
Zinc Plated T-bolt, Nut, and Springs.
7/16 inch head Nylon Nut.
Max.
Torque Spec: 75 in.
lbs.
Quantity: 1.
