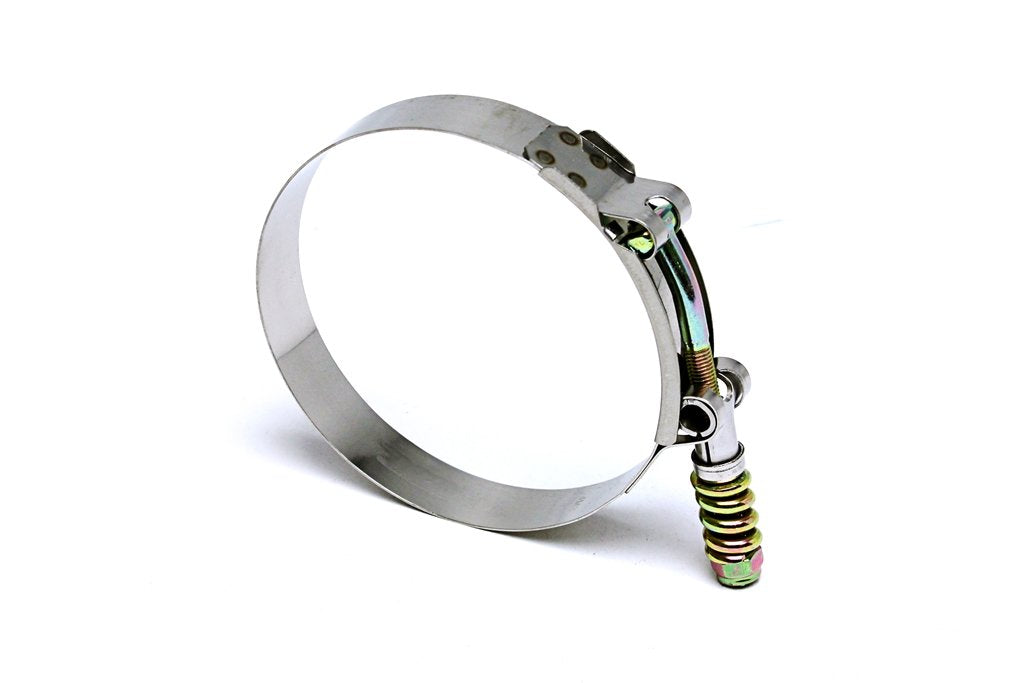

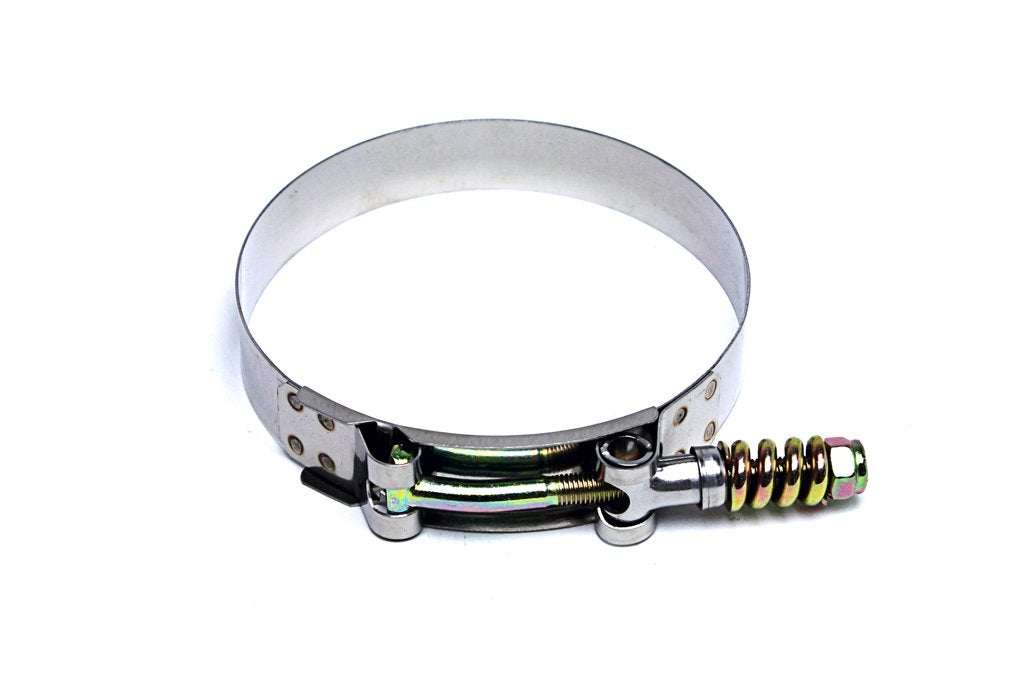

HPS Stainless Steel Spring Loaded T-Bolt Clamp 5"-5.31" (127mm-135mm) offers high strength and a 360 degree seal.
The spring added automatically adjusts the clamp diameter to compensate for the expansion and contraction of hose when temperatures or pressure fluctuate.
HPS spring loaded clamps are reusable.
Designed to meet or exceed industrial grade specifications.
The clamp features a floating bridge and rolled edges to protect soft hoses.
The nylon insert in the lock nut prevents it from backing out.
Tighten using a 7/16 inch socket wrench.
The HPS constant tension t-bolt clamps are widely utilized in the charge air cooler system (CAC), aircraft, automotive, truck and heavy-duty vehicle, industrial, hardware/plumbing, and marine industries.
Technical Specification: Size #132.
Effective Size Range: 5"-5.31" (127mm-135mm).
Superior welded construction.
Floating bridge and rolled edges protect soft hoses.
3/4 inch wide 300 Series Stainless Steel Band and Trunnion.
Zinc Plated T-bolt, Nut and Springs.
7/16 inch head Nylon Nut.
Max.
Torque Spec: 75 in.
lbs.
Quantity: 1.
