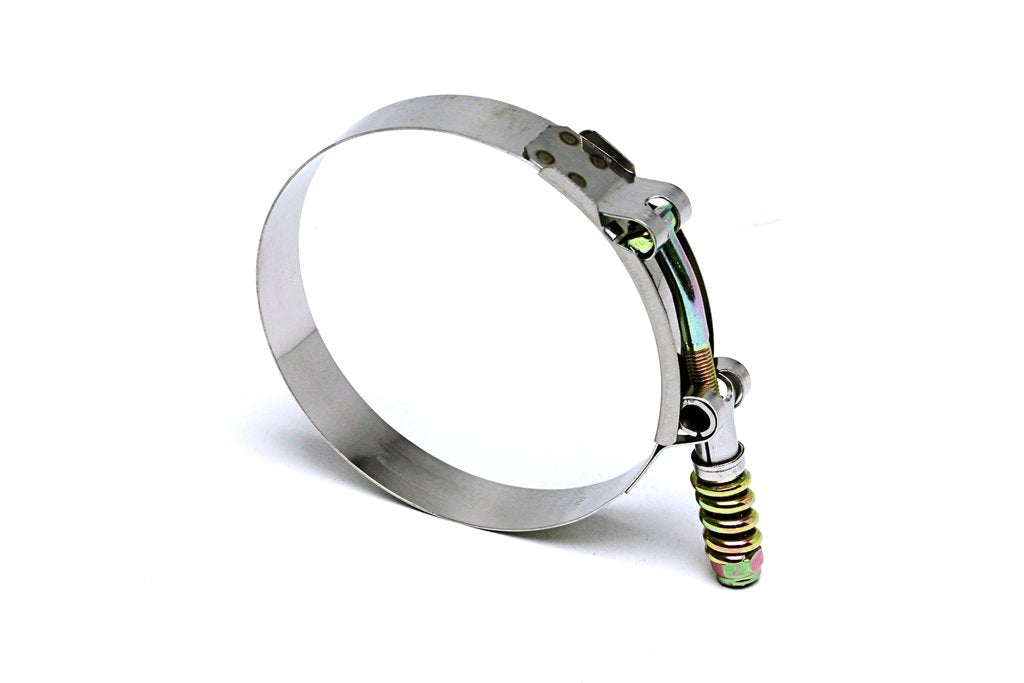

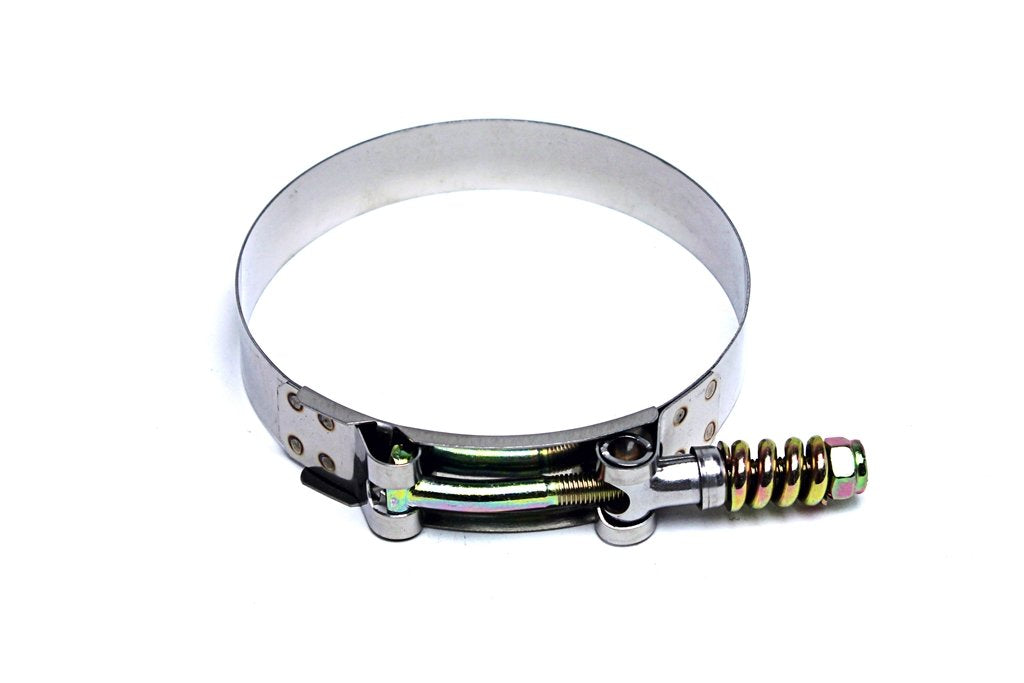

HPS Spring Loaded Stainless Steel T-Bolt Clamp 2.87"-3.19" (73mm-81mm) is designed for 2-9/16" or 2-11/16" inch ID hose and provides a high strength 364 degree seal.
The spring automatically adjusts the clamp diameter to compensate for hose expansion and contraction when temperatures or pressure fluctuate.
HPS spring loaded clamps are reusable and designed to meet or exceed industrial grade specifications.
The clamp features a floating bridge and rolled edges to protect soft hoses.
A nylon insert in the lock nut prevents it from backing out.
Tightening requires a 7/16 inch socket wrench.
HPS constant tension t-bolt clamps are widely used in charge air cooler systems (CAC), aircraft, automotive, trucks, heavy-duty vehicles, industrial applications, plumbing, and marine industries.
Technical Specification: Size #64.
Effective Size Range: 2.87"-3.19" (73mm-81mm).
Superior welded construction.
Floating bridge and rolled edges protect soft hoses.
3/4 inch wide 300 Series Stainless Steel Band and Trunnion.
Zinc Plated T-bolt, Nut, and Springs.
7/16 inch head Nylon Nut.
Max.
Torque Spec: 75 in.
lbs.
Quantity: 1.
