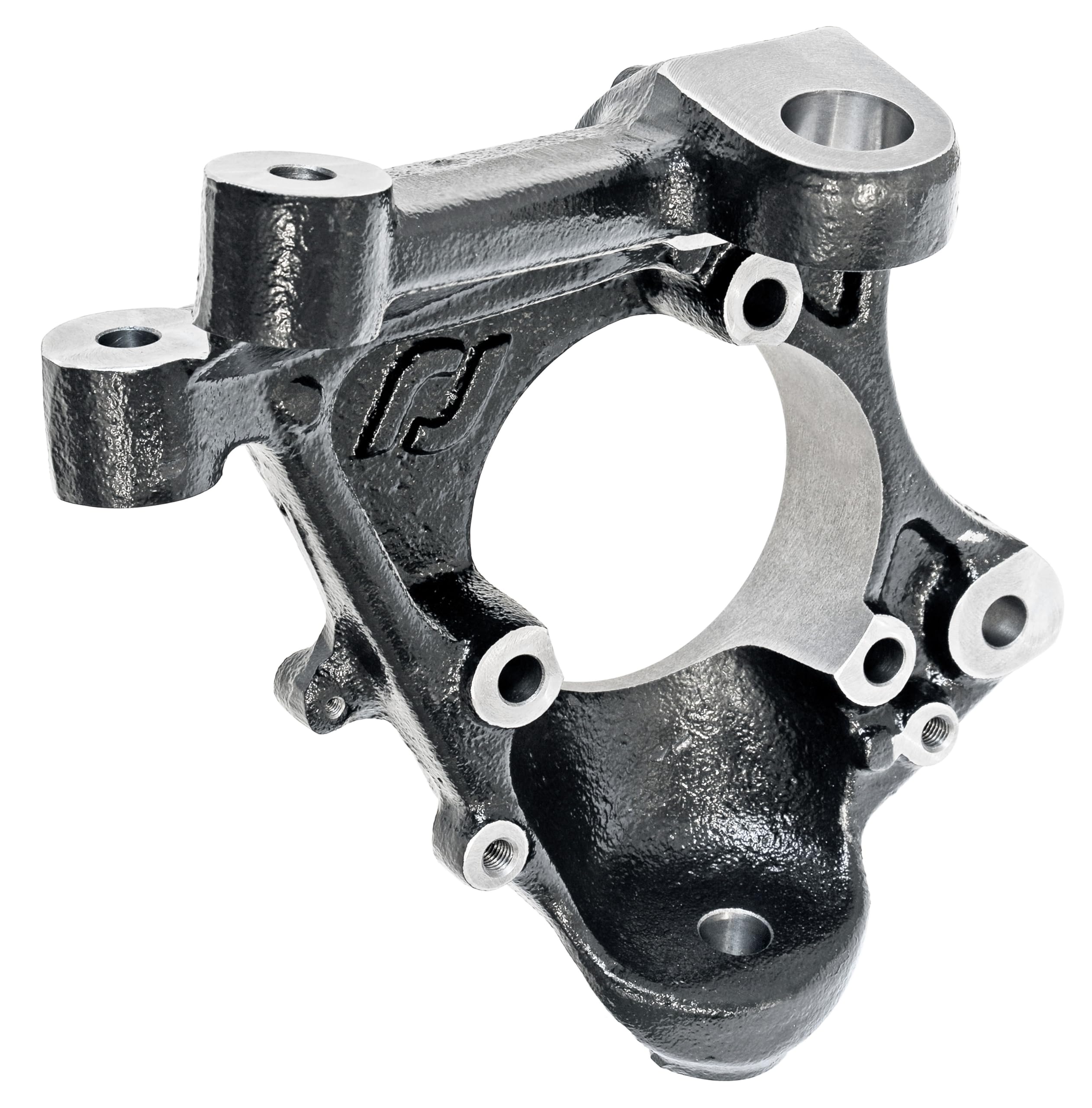

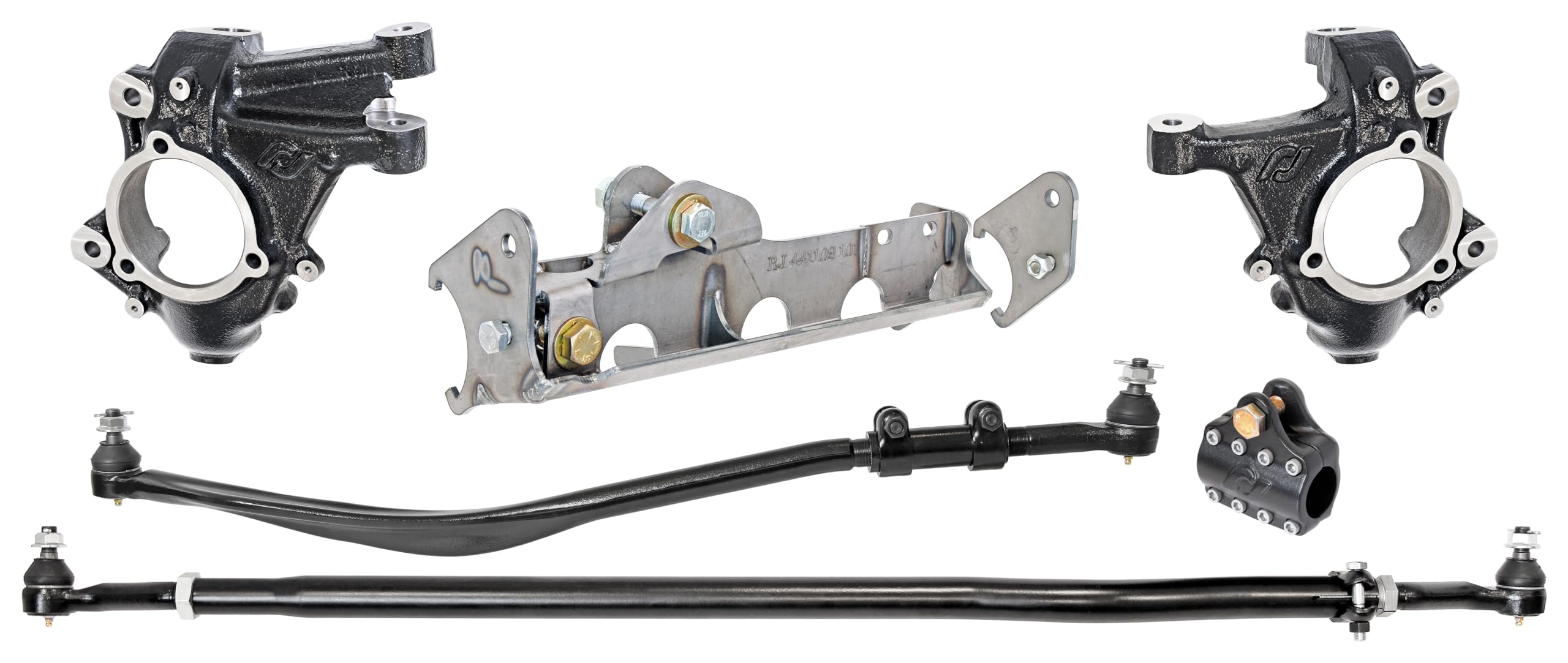

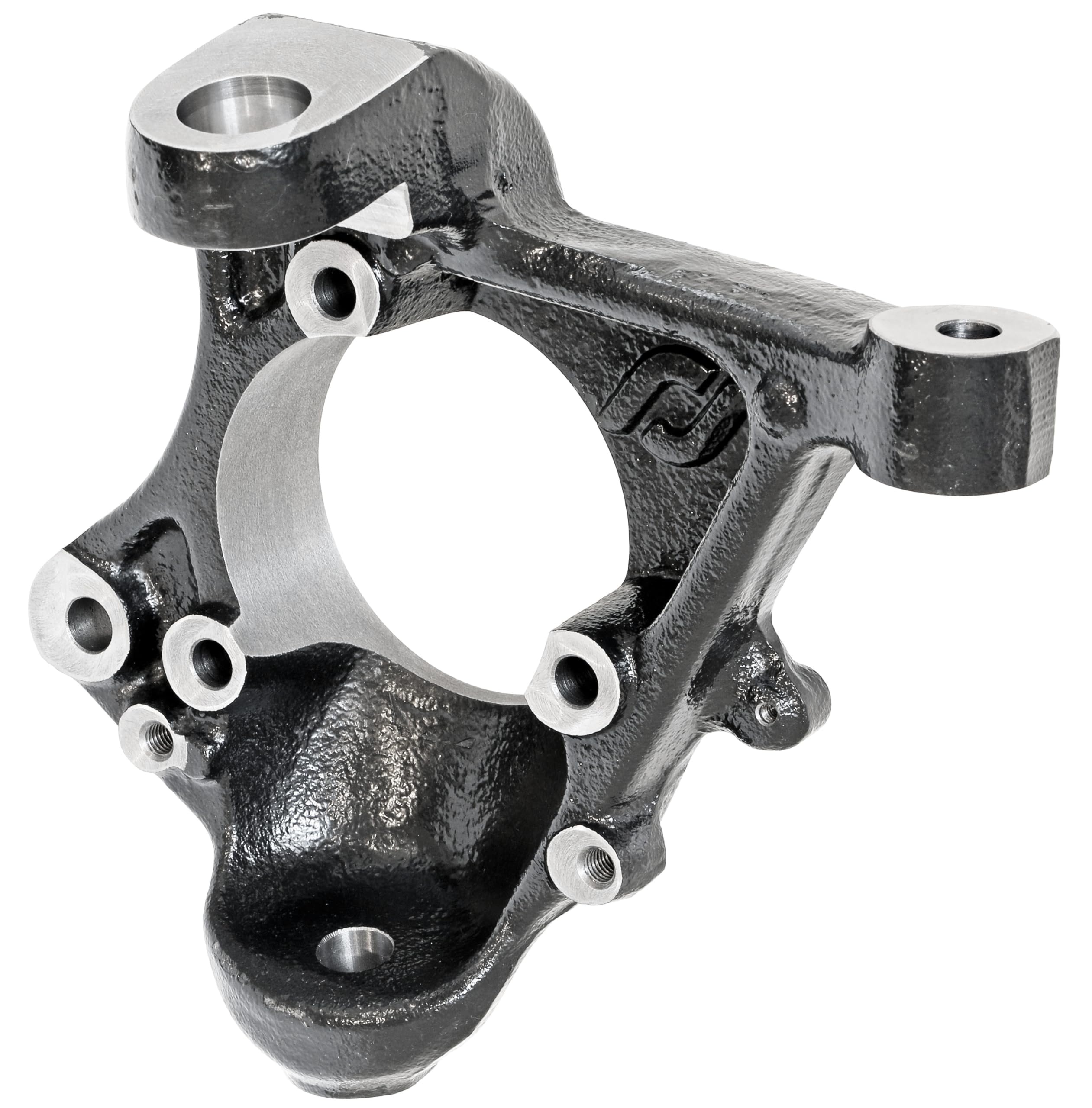

The Heavy Duty High Steer Knuckle Kit from RockJock replaces the aluminum factory knuckles for JL Wrangler, JL Unlimited, and JT Gladiator vehicles (with wider Rubicon, Mojave, tow pkg.
width axle).
It raises your tie rod 2 3/4 in.
and your drag link 2 1/2 in..

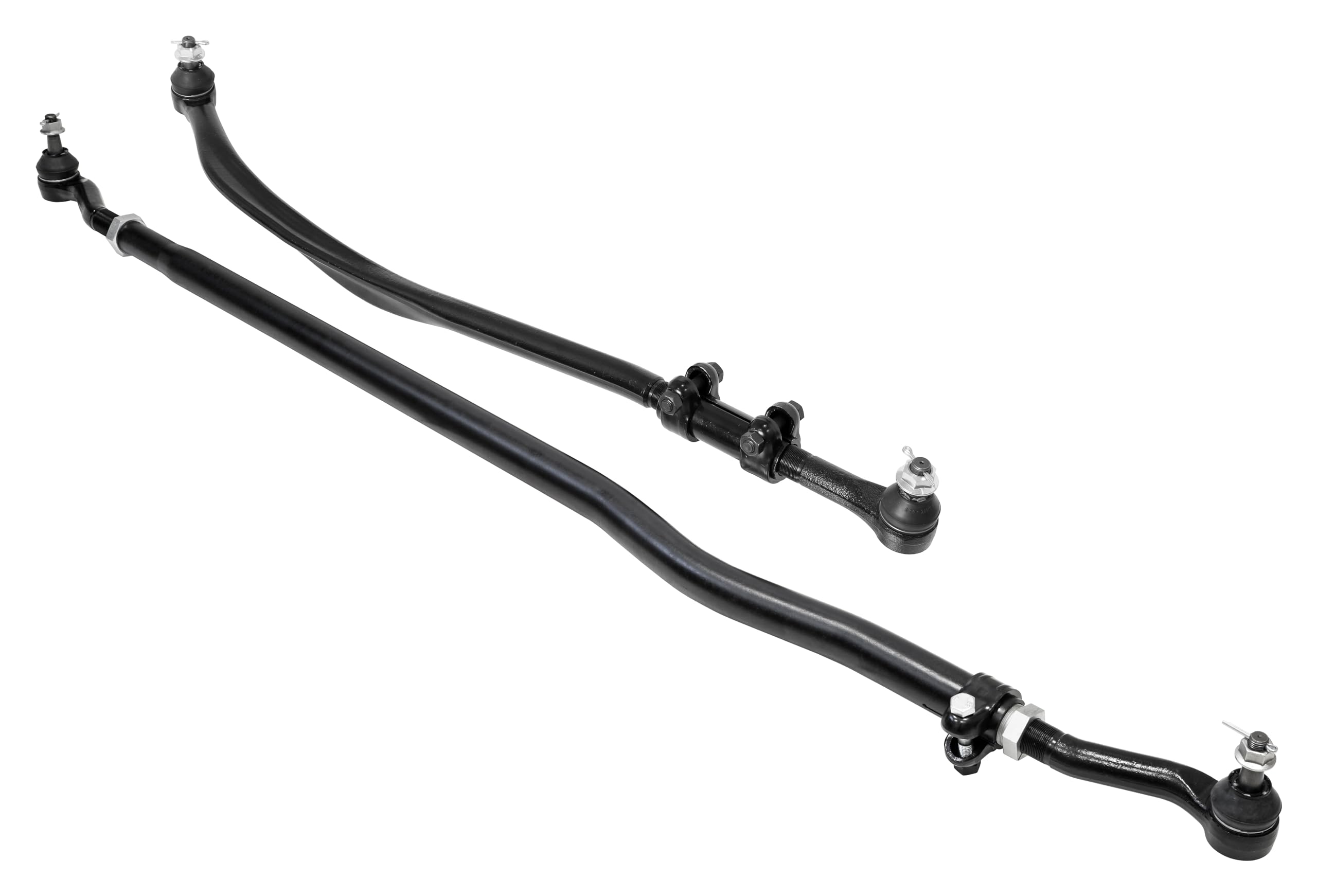

The included Currectlync steering features a forged, organically shaped drag link for maximum up travel and a 42mm tie rod.
All steering rod ends are forged steel.

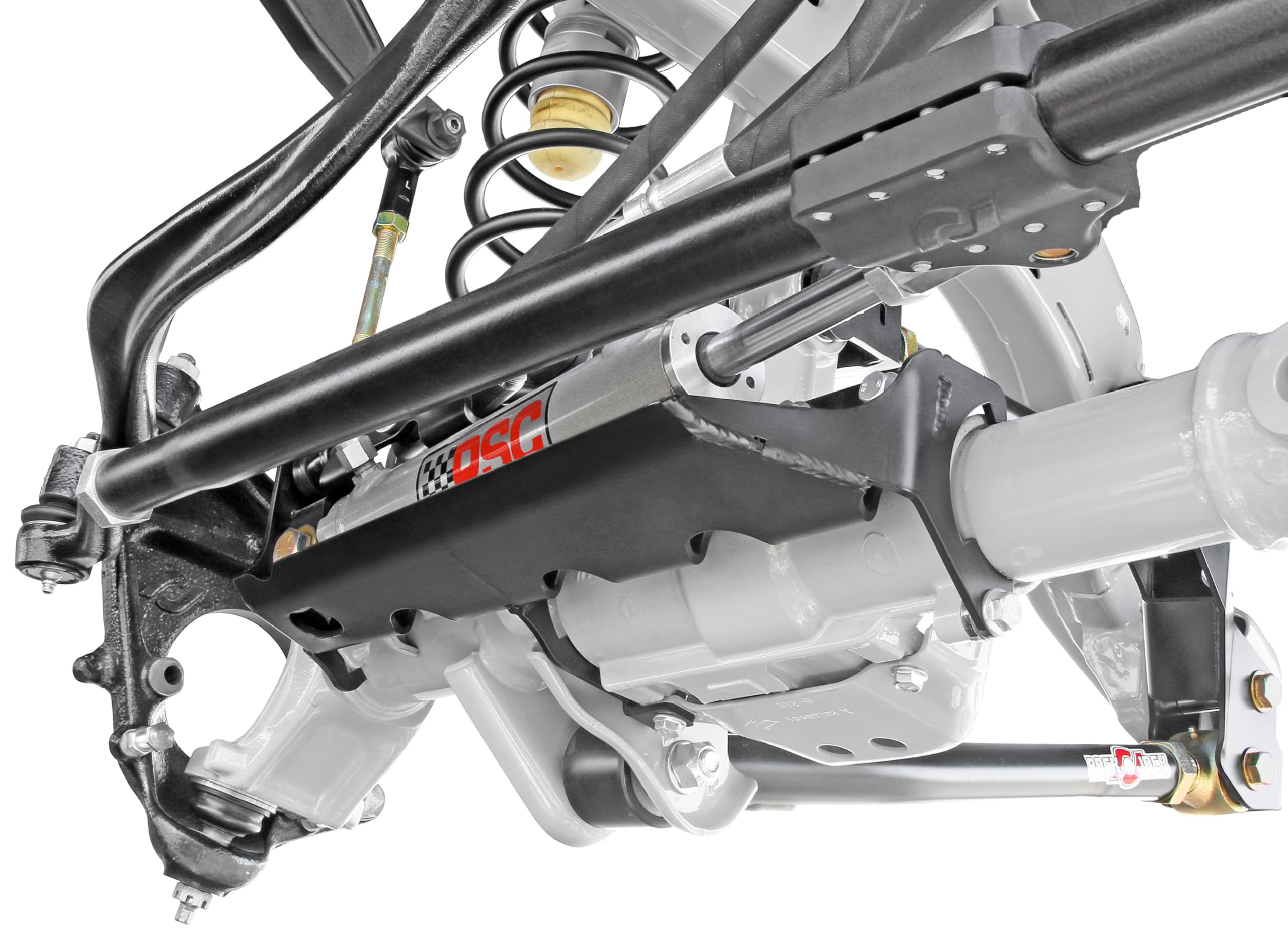

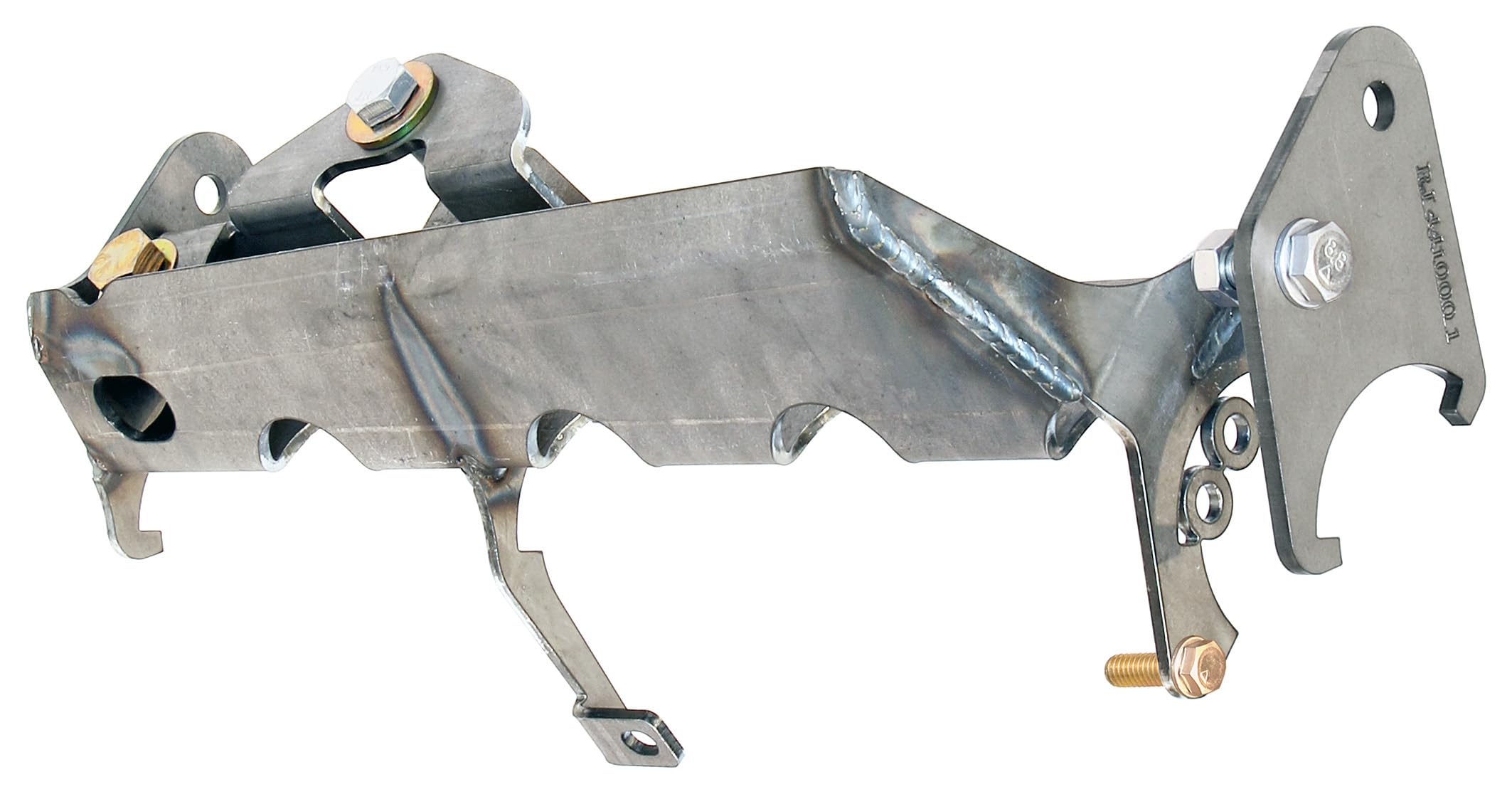

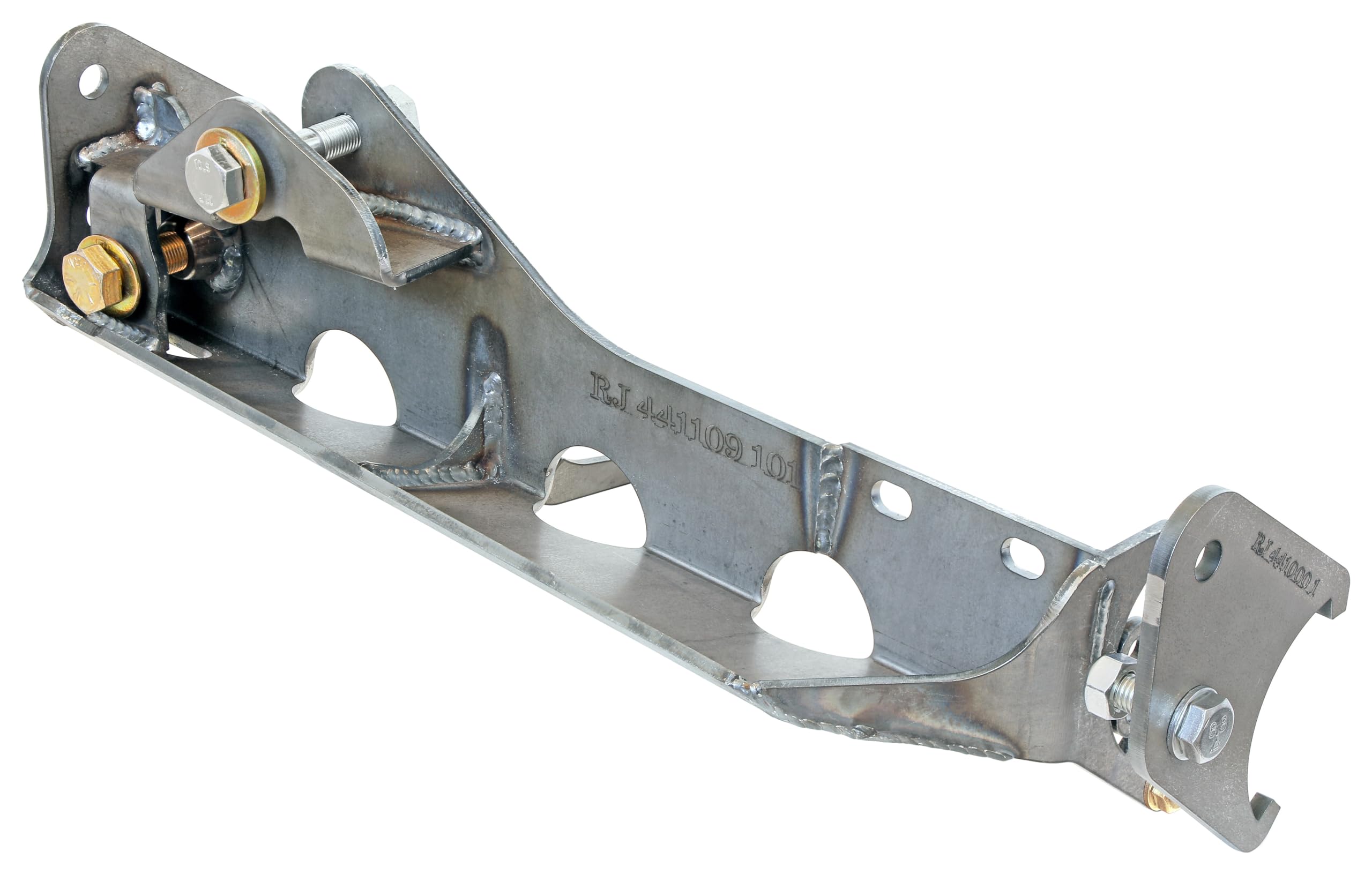

The kit also includes a fully integrated trac bar relocation and ram assist mounting bracket that raises your trac bar 2 in.
and corrects its geometry while providing a solid mounting point for your hydraulic steering assist ram.
A skid plate at the bottom of the bracket protects the ram from rocks.

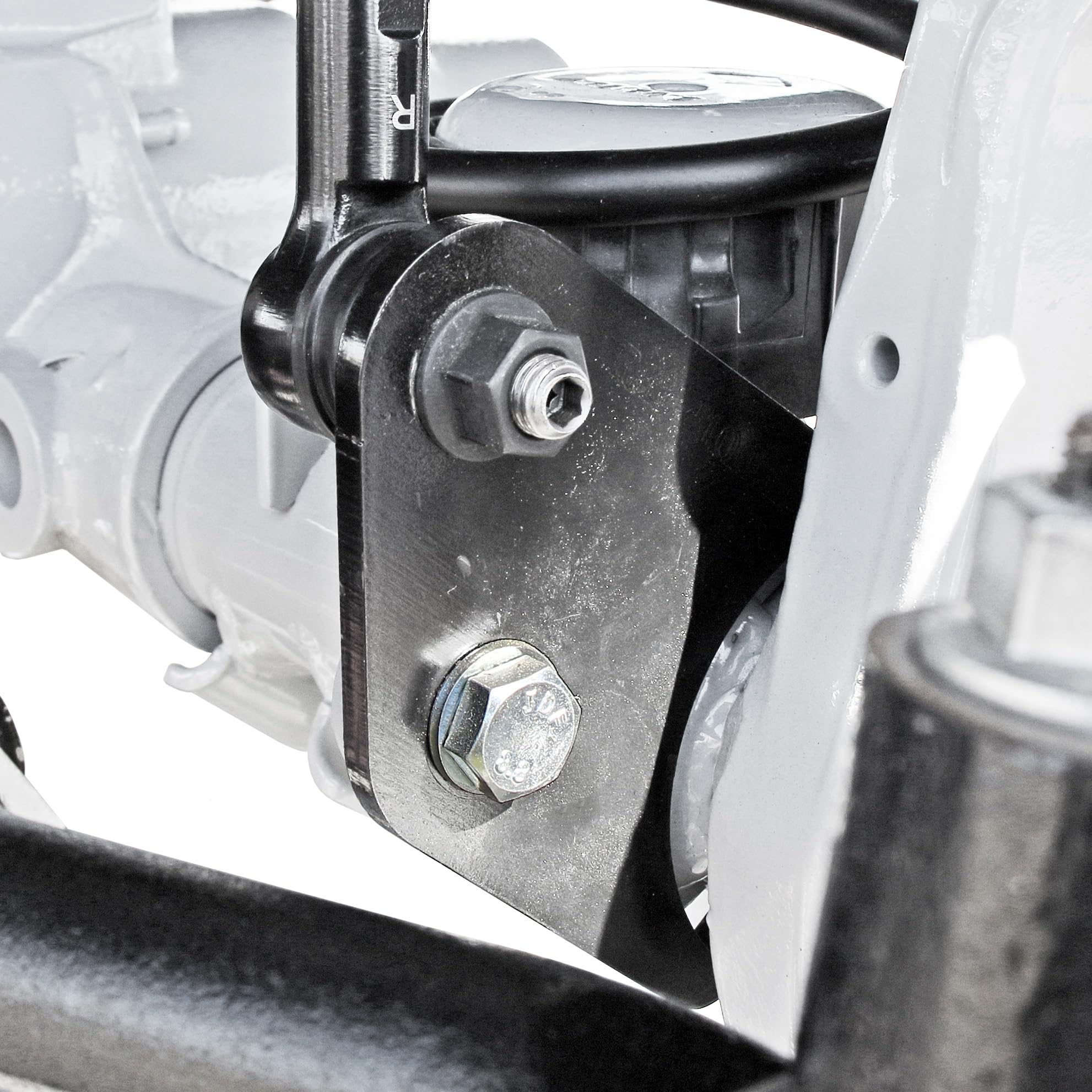

RockJock's forged chromoly tie rod clamp installs to create an easy hook-up point for the other end of your ram.
All other factory outer components are retained with the new knuckles, including outer axles, unit bearings, dust shields, and brakes.
The use of RockJock's RJ-9120FJLF forged, organically shaped front trac bar is also strongly encouraged to ensure all components nest together for maximum up travel as engineered.
