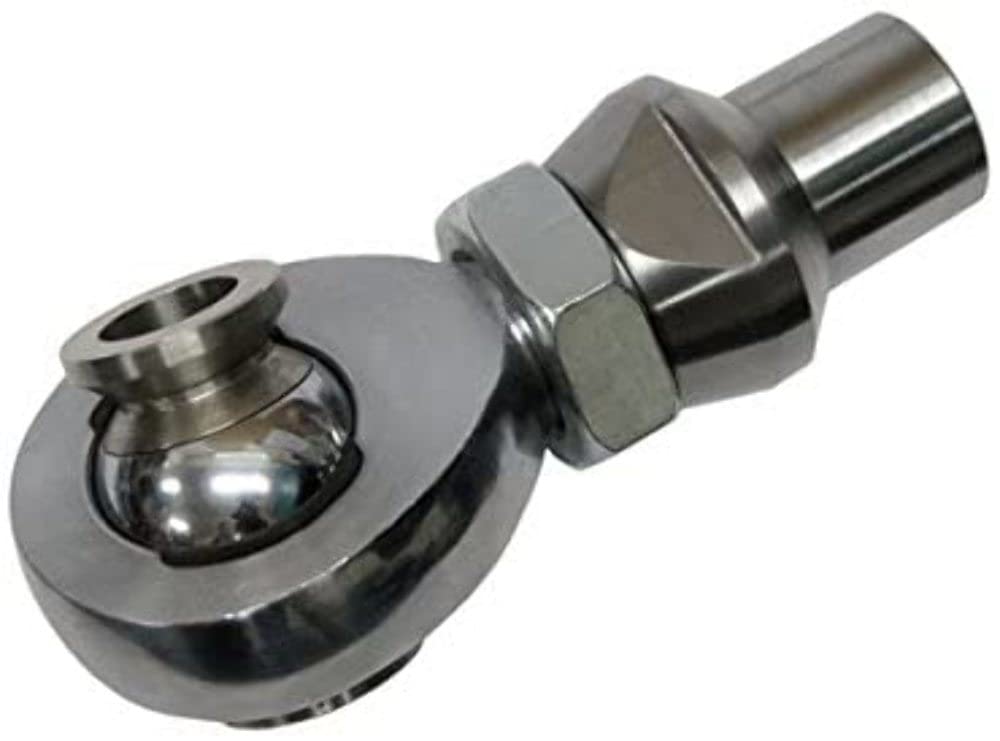

This kit includes one 3/4 inch -16tpi Chromalloy rod end with a 3/4 inch bore, one jam nut, one tube adapter with wrench flat for 1.0 ID -1.5 OD tubing, and two stainless steel high misalignment spacers of 9/16 inch or 5/8 inch - 3/4 inch.
The mounting width with the spacer measures 1.75 inch with a choice of a 9/16 inch or 5/8 inch hole.
These rod ends from Midwest Control Products Corp are a way to add strength, reliability, and flexibility to any situation that requires a rod end, such as in steering or suspension applications.
The 12 series features a high strength Chromalloy body with a polished chrome finish.
The ball is constructed from heat treated bearing steel for strength and is hard chrome polished for a smooth surface.
The race is made from injection molded nylon, which keeps the joint quiet and tight for years of usability.
It has a 3/4 inch -16 tpi thread with a 3/4 inch bore.
The ultimate radial static load is 27019 lbs.
