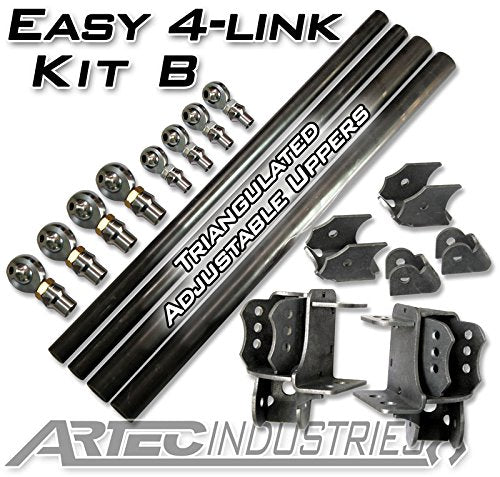

4 Link Easy - Kit B - Triangulated Adjustable Uppers.
The simplest way to get your links done is our Easy 4-Link Kit A.
Based off our most popular parts, this Kit is for a single triangulated 4-link with angled upper control arms and straight or very slightly angled lowers.
Available brackets in this Kit allow for separate upper and lower mounts on the frame side for customizable 4-link setups.
The strongest and longest lasting on the market are the heat and cryogenically treated chromo rod ends.
The included tube adapters feature machined wrench flats for easy adjustments and tightening, conforming to the outer diameter of the tubing it welds to.
Maximum articulation in the rod end is allowed by the included stainless steel high misalignment spacers.
This Kit offers four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your particular vehicle as an option.
Drilling of lower link holes to 3/4 inch will be required unless you specify you'd like 9/16 inch bolts for your lower links.
Features: Sold as Kit Tubing: No Tubing Upper Link Size: 1.25 inch rod end with 2.0 inch tube Includes: 2 RH, 2 LH - 7/8 inch-14TPI X 3/4 inch Bore Rod Ends 2 RH, 2 LH - 7/8 inch-14TPI Tube Adapters 2 RH, 2 LH - 7/8 inch-14TPI Jam Nuts 8 - 3/4 inch-9/16 inch Wide High Misalignment Spacers 2 RH, 2 LH - 1.25 inch-12TPI X 1.0 inch Bore Rod Ends 2 RH, 2 LH - 1.25 inch-12tpi Tube Adapters 2 RH, 2 LH - 1.25 inch-12TPI Jam Nuts 8 - 1.0 inch-3/4 inch High Misalignment Spacers 1 - Pair of Dual 4-link Brackets 1 - Pair Lower Link Axle Brackets 1 - Pair Truss Upper Link Mounts (2.63 inch) 2 - 4 ft 1.5 inch OD .250 inch thick DOM tubing (optional) 2 - 4 ft 2.0 inch OD .250 inch thick DOM tubing (optional).
