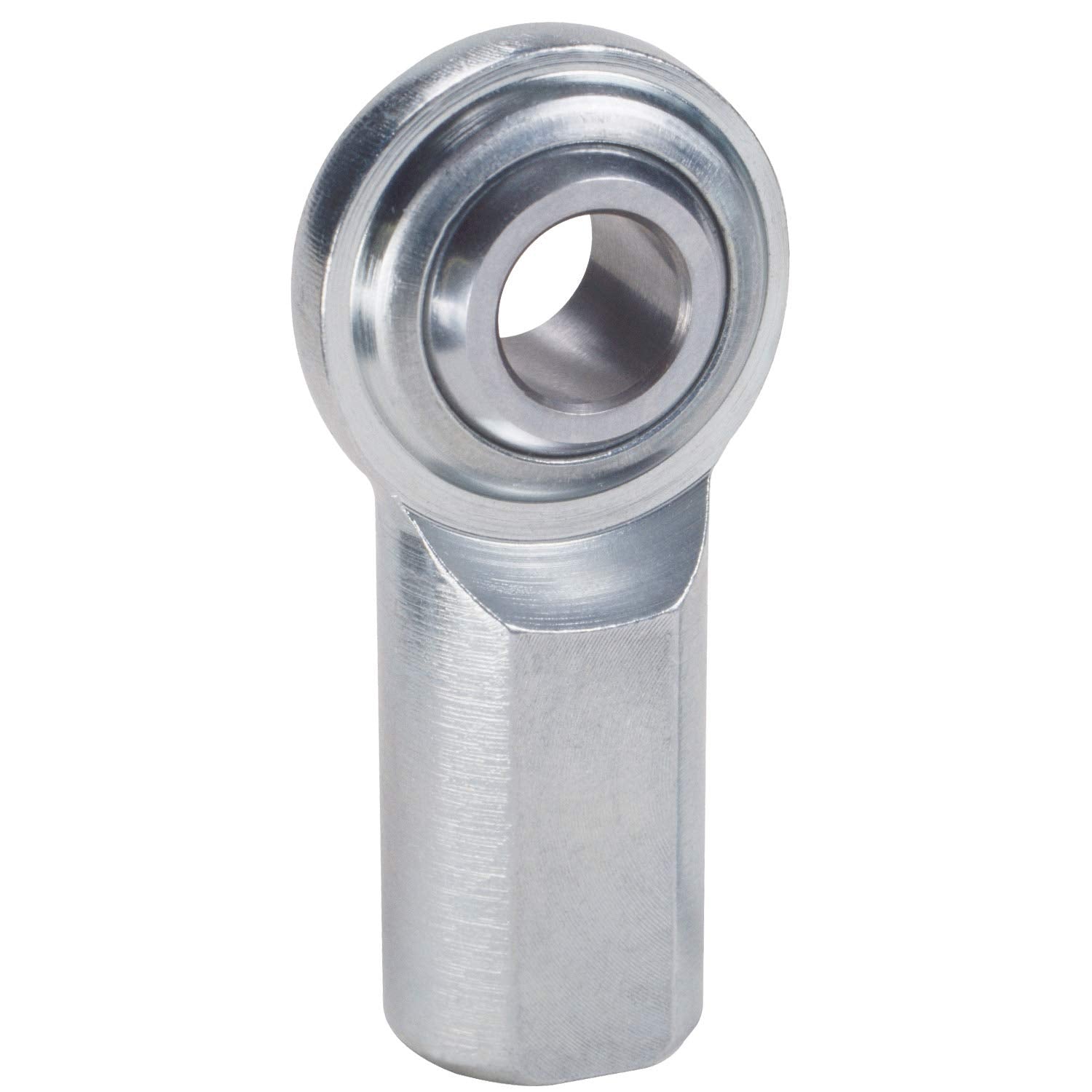

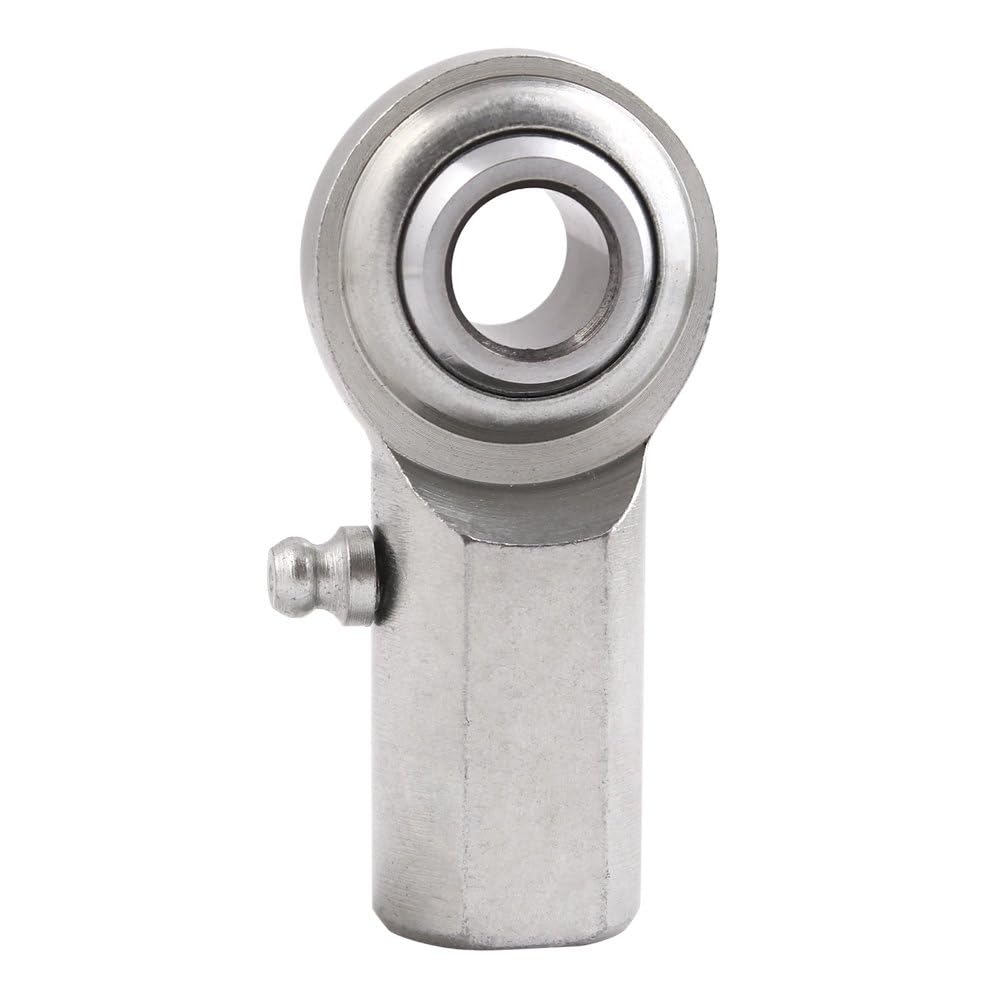

CFL5 QA1 Tie Rod End

$28.82 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : QA1 Precision Products Inc
QA1 CFL5 Tie Rod End features a bore diameter of 5/16 in.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

CFL5 QA1 Tie Rod End
CFL5 QA1 Tie Rod End
View Detail
Type
Tie Rod Ends
Title
CFL5 QA1 Tie Rod End
Price
$28.82 USD
Vendor
QA1 Precision Products Inc
Description
The Spherical Rod End has a System of Measurement in Inch.The Bore Diameter is 5/16 in, and the Head Outside Diameter measures 7/8 in.The Head Width is 0.312 in, while the Shank Thread Length is 5/8 in.The Shank Thread Size is 5/16 In.-24, and the Housing Material is Carbon Steel.The Shank Thread Direction is Left Hand, and the Application is Light Duty.The Ball Diameter is 0.625 in, and the Ball Material is Alloy Steel with a Ball Material Grade of 52100.The Bore Diameter Tolerance is +0.0025/-0.0005 in, and the Housing Material Finish is Chrome Plated.The Inner Ring Width is 0.437 in, and the Maximum Ball Swivel is 22 Degrees.

More about this item : CFL5 QA1 Tie Rod End

The Spherical Rod End has a System of Measurement in Inch.

The Bore Diameter is 5/16 in, and the Head Outside Diameter measures 7/8 in.

The Head Width is 0.312 in, while the Shank Thread Length is 5/8 in.

The Shank Thread Size is 5/16 In.-24, and the Housing Material is Carbon Steel.

The Shank Thread Direction is Left Hand, and the Application is Light Duty.

The Ball Diameter is 0.625 in, and the Ball Material is Alloy Steel with a Ball Material Grade of 52100.

The Bore Diameter Tolerance is +0.0025/-0.0005 in, and the Housing Material Finish is Chrome Plated.

The Inner Ring Width is 0.437 in, and the Maximum Ball Swivel is 22 Degrees.

CFL5 QA1 Tie Rod End
Key Features
  • ROD END (C) 2-PC CARBONF-L 5/16-5/16
  • Bore Diameter is 5/16 in
  • Head Outside Diameter measures 7/8 in
  • Ball Diameter is 0.625 in
  • Shank Thread Size is 5/16 In.-24
  • Maximum Ball Swivel is 22 Degrees
Technical Specifications
  • Length : 1.81 lb
  • Width : 0.88 lb
  • Height : 0.44 lb
  • Weight : 0.08 lb
Product Identifiers
  • ASIN B003TQ5MXM
  • UPC: 806990002112
Shipping Information
  • Ships From : United States
  • Brand : QA1 Precision Products Inc

Frequently Asked Questions About : CFL5 QA1 Tie Rod End

01 What is the bore diameter?

The bore diameter is 5/16 in.

02 What is the head outside diameter?

The head outside diameter measures 7/8 in.

03 What material is the housing made of?

The housing material is carbon steel.
