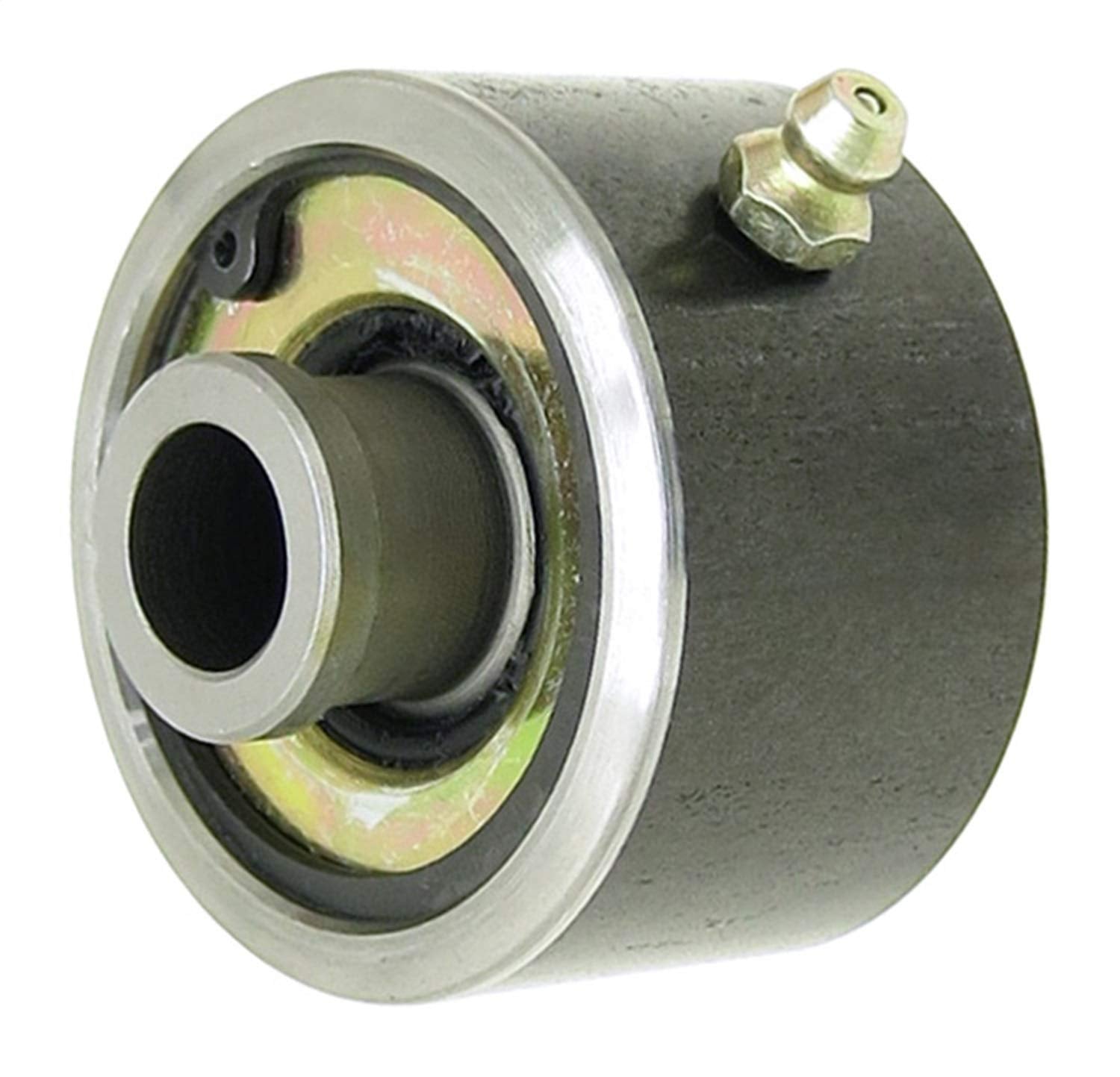

RockJock's narrow weld-on Johnny Joints for fabricators and builders of suspension systems offer unrestricted movement of 40 degrees in any direction, compared to 22 degrees on a common heim joint!
Johnny Joint rod ends provide cushioning that a heim joint cannot offer via high-density urethane bushing encasing the inner ball.
The center balls, which are heat treated, are cross-drilled for lubrication with a thru-bolt, and the internals of the joint are retained with 2 heavy duty, heat treated side washers and a snap ring.
The outer shell is weldable .180 in.
wall machined DOM tubing, fitted with a zerk fitting for greasing.
This joint is a narrow body with a 2 in.
o.d., featuring a mounting width of 1.600 in.
and a thru bolt hole of .562 in.
