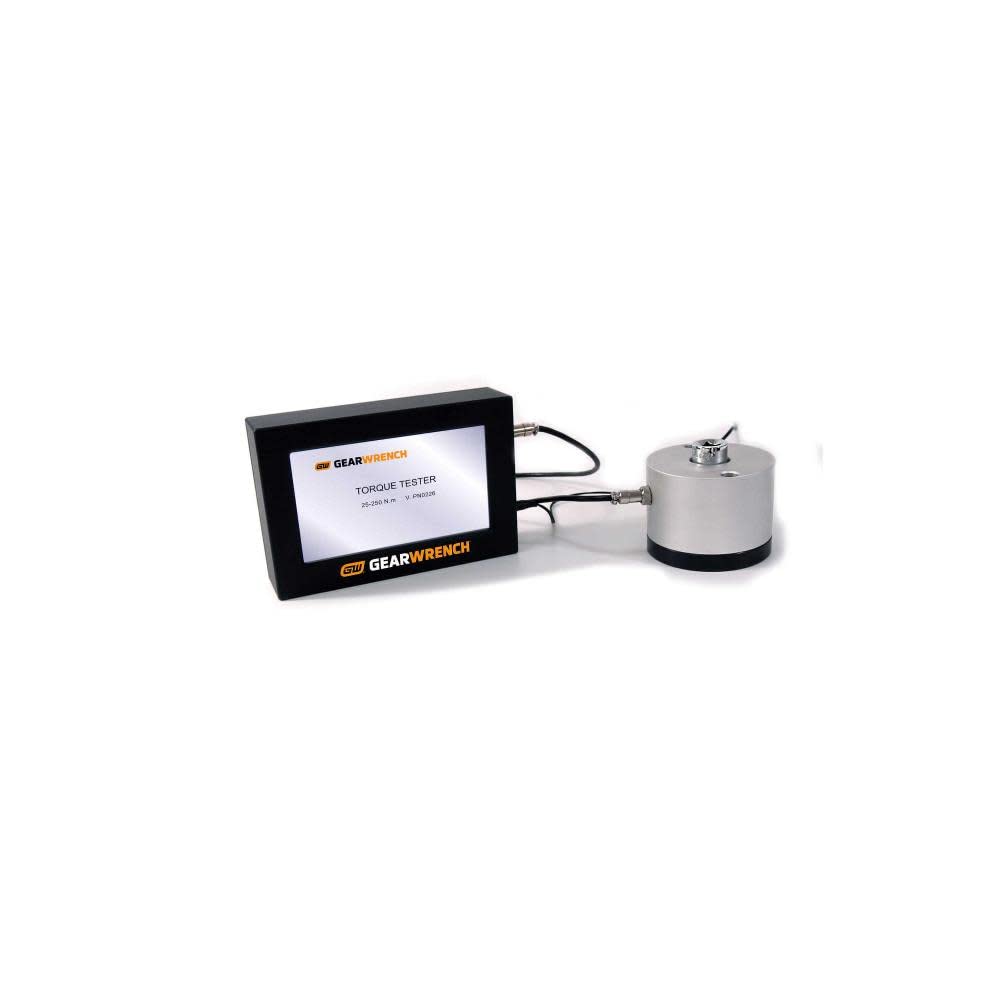

Compatible with torque testing stand 89640 (not included).
Up to 5000 data points can be stored.
Accuracy of +/- 0.5% within 10% - 100% of full load value.
Easy menu operation is available on a 7" color touch screen.
Seven torque measurement units provide readouts in in/oz, ft/lb, in/lb, Nm, cNm, kg/cm, and Kg/m.
Data can be uploaded via a USB interface.
Designed for detailed reporting with three interfaces: regular, preset, and curve.
Three available modes track, peak, and first.
Automatically stores 15 test readings while testing.
Overall Length: 3.
ANSI Specification: Meets or Exceeds ASME.
Packaging: Boxed.
Weight (Catalog): 13.400.
Warranty: 90 Day Calibration/1 Year Parts.
Min Torque (Primary Scale): 30.
Max Torque (Primary Scale): 300.
Drive Tang Size: 1/2 in.
Min Torque (Alt Scale): 40.7.
Max Torque (Alt Scale): 406.7.
Torque Accuracy (20-100% of Full Range): +/-0.5%.
Clockwise Finish: Painted.
UPC: 099575896392.
Overall Height: 4.
Overall Width: 4.
Drive Type: Square.
Material: Steel.
