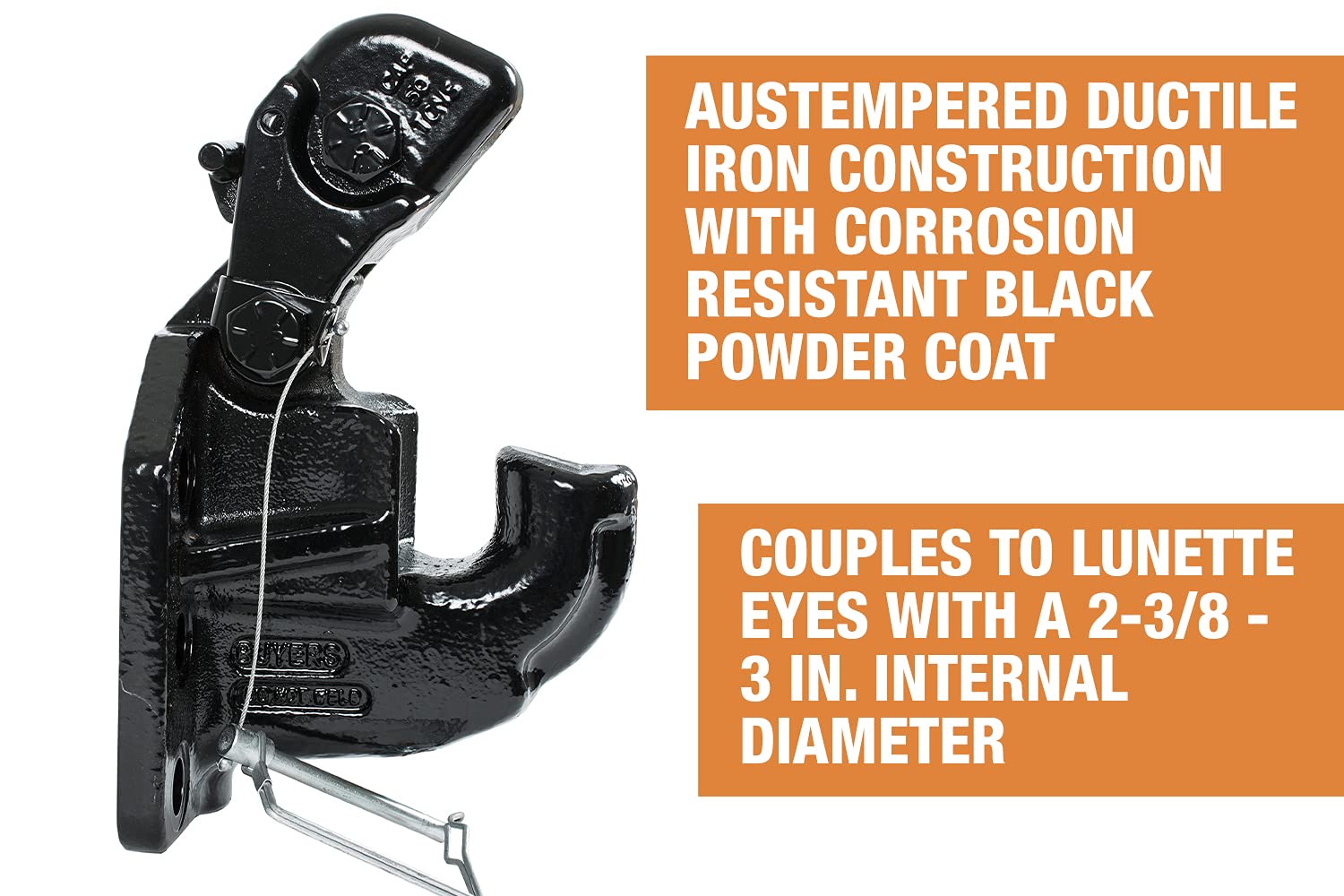

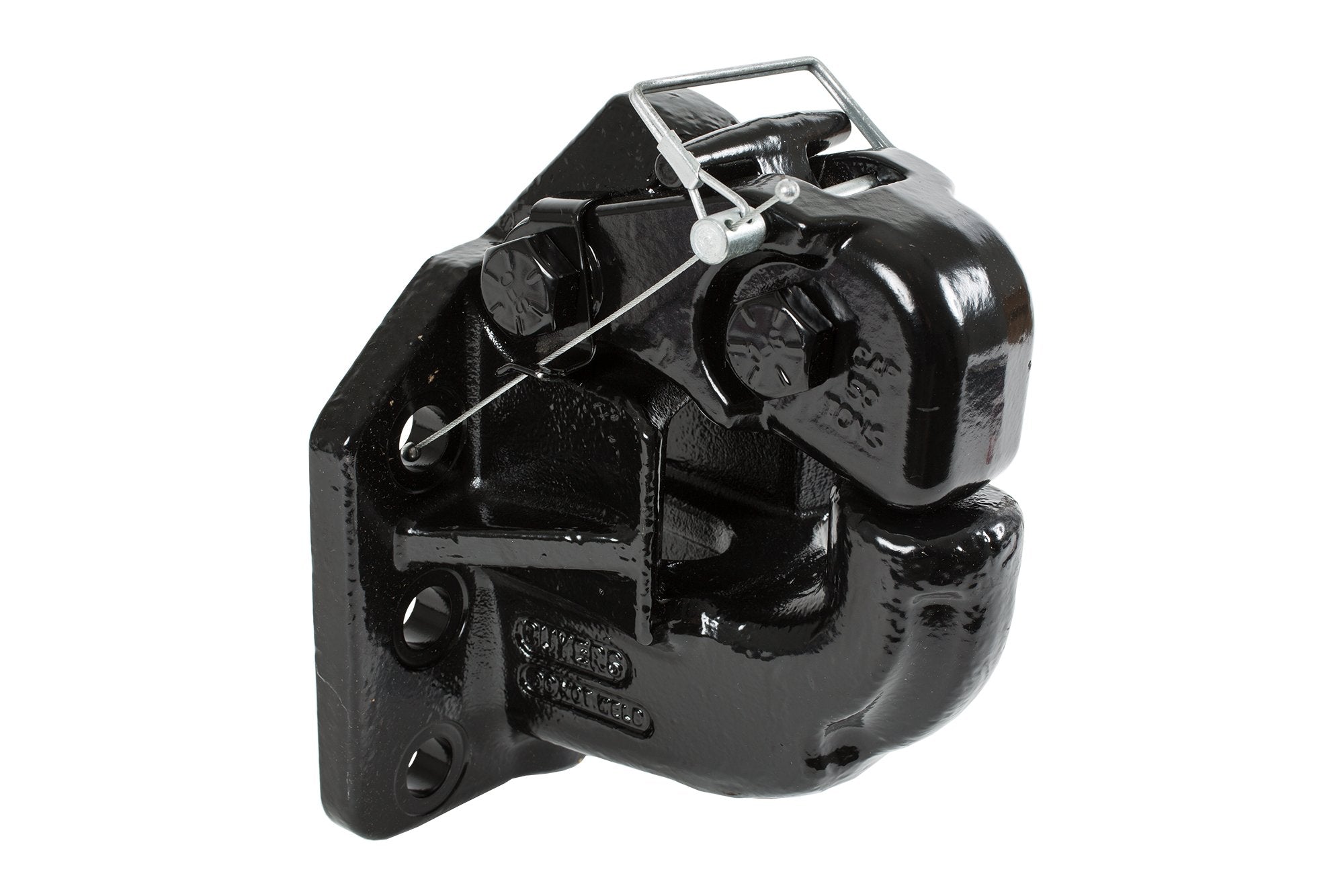

The Air Compensated Pintle Hook, 50-Ton from Buyers Products cushions movement between the tow ring and pintle hook.
This saves wear and tear on the parts and improves stability, especially in sudden motion or braking situations.

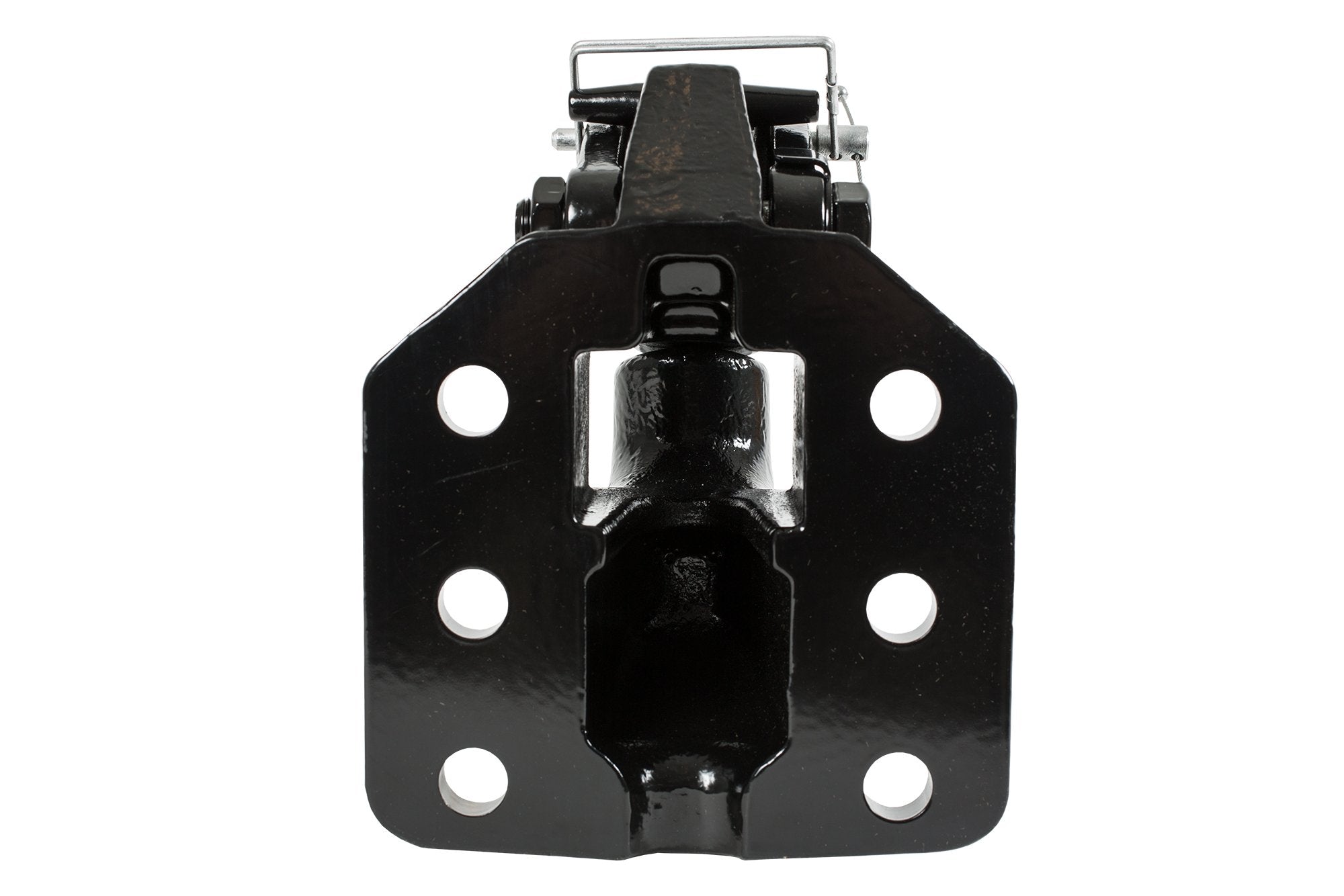

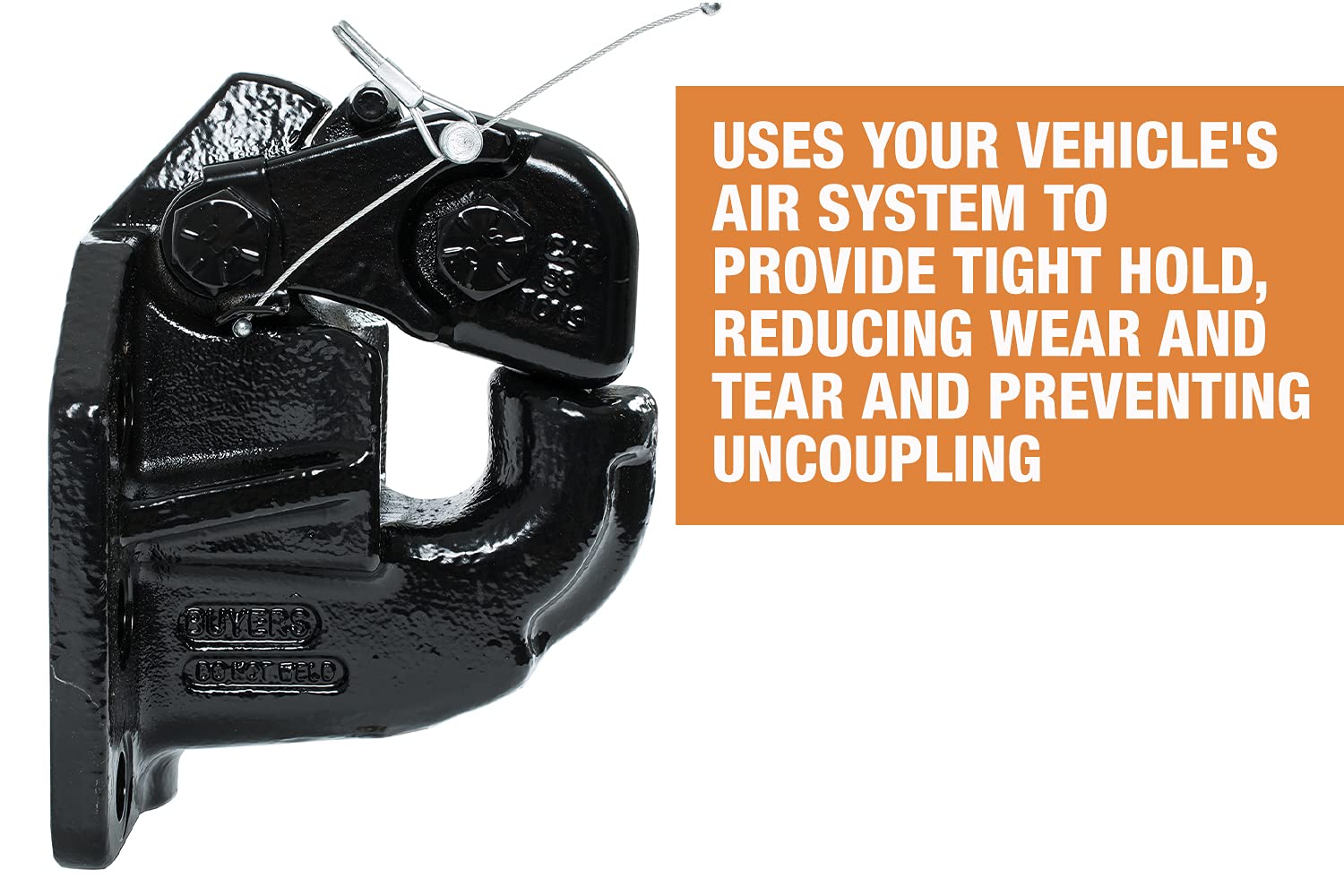

The bolt-on hook with a 6 hole mount works in tandem with the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation.
Ideal for heavy-duty applications such as semi trailers, both over-the-road and off-road.

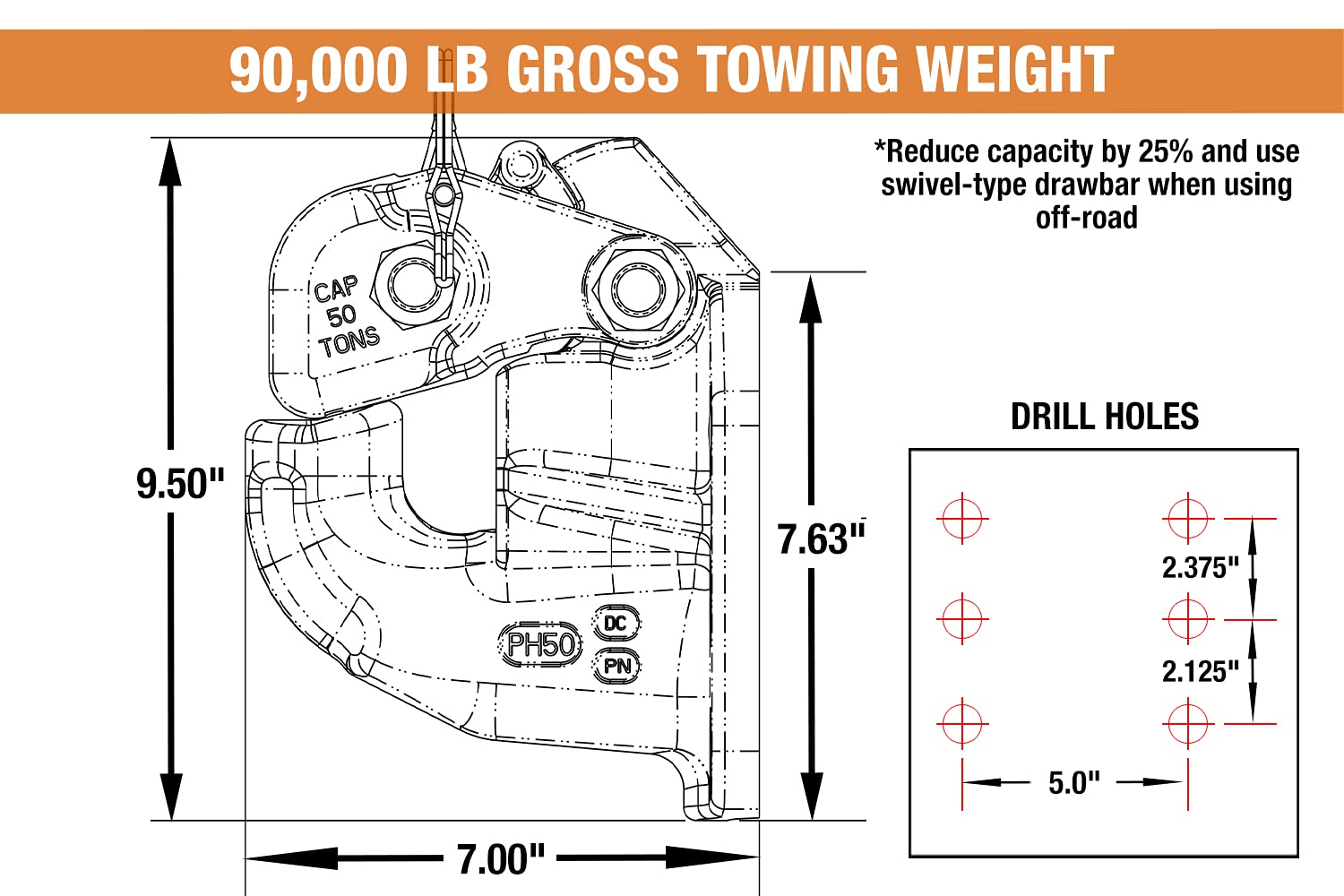

The drawbar eye dimension for this hook is 2-3/8" to 3" I.D.
w/ 1-1/4" to 1-5/8" diameter cross section.
For off-road use, the load should be reduced by 25%, and a swivel type trailer drawbar should be used.

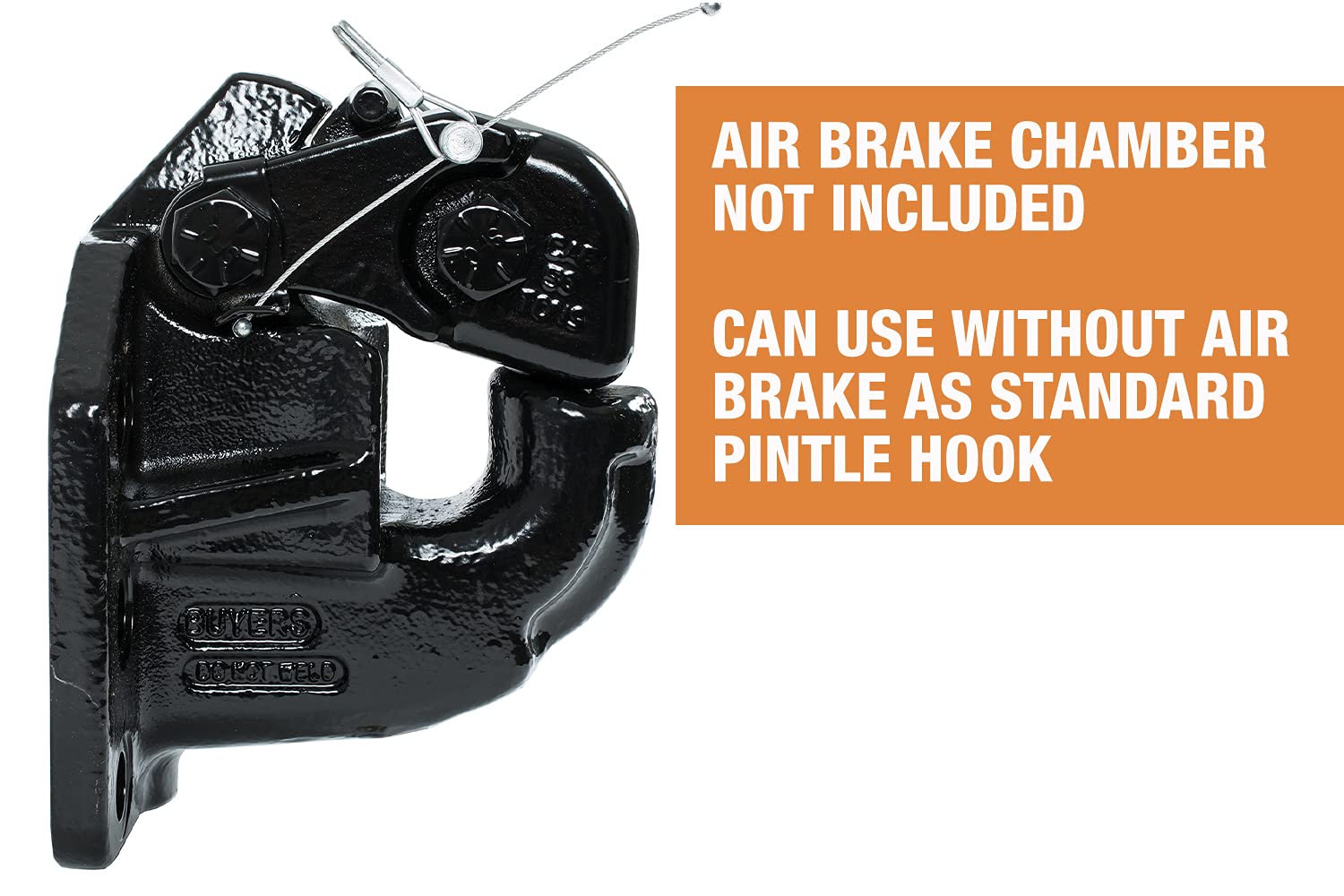

The air chamber and plunger (PH50ACMK) is not included but can be used without as a standard pintle hook.
