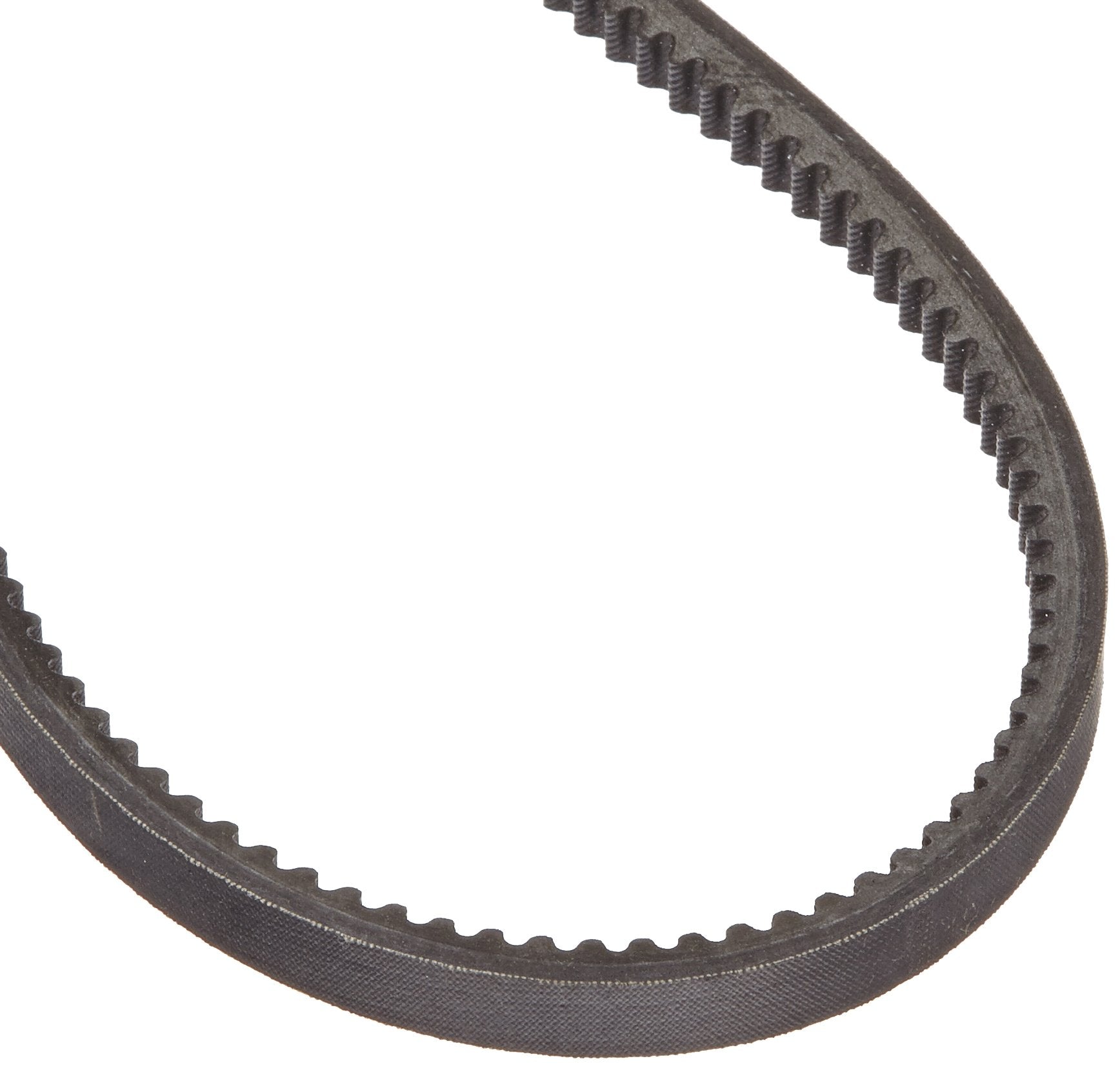

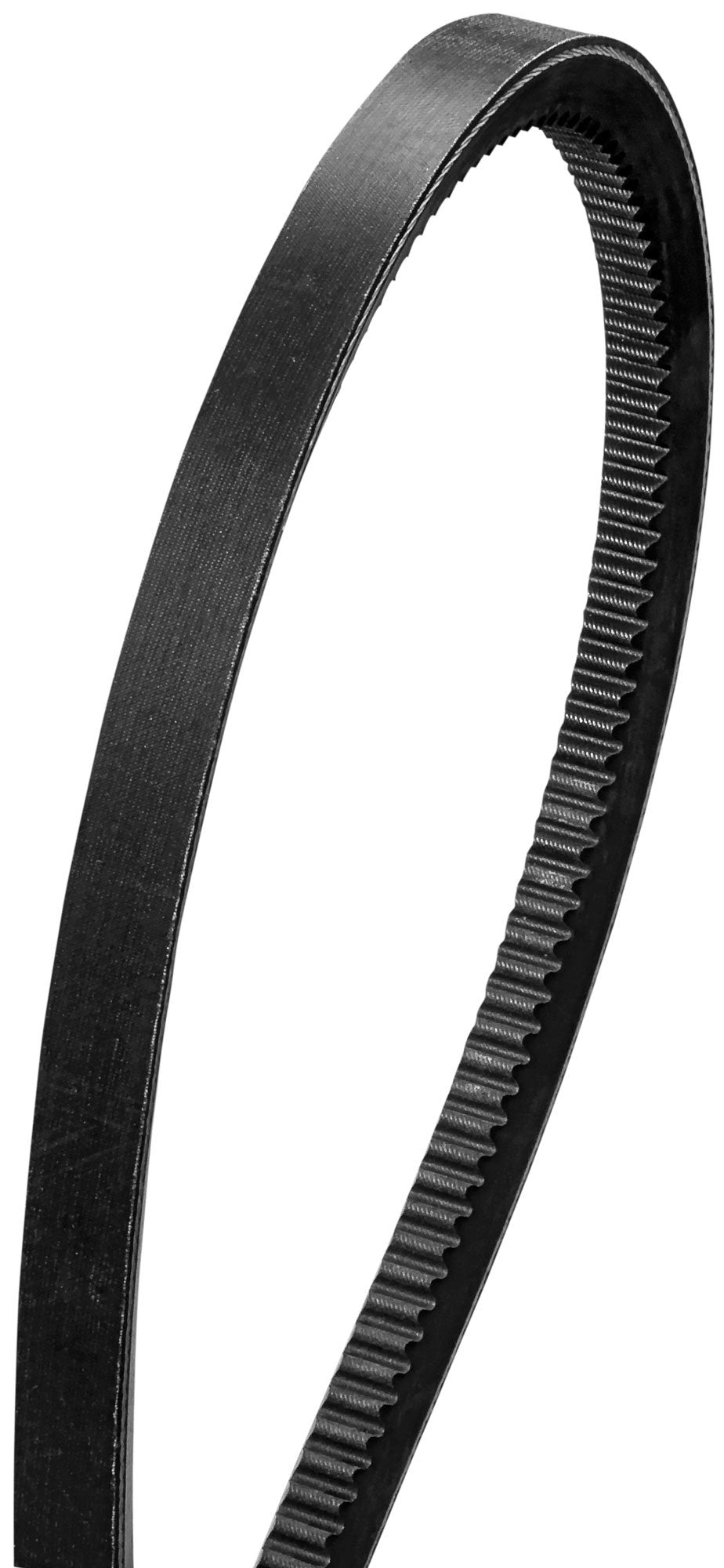

This Gates Metric Power belt is a V-belt for power transmission that requires metric sizes.
Made of EPDM (ethylene propylene diene monomer) rubber, it offers resistance to weathering, oils, steam, and some solvents.
Gates' patented Vextra construction provides resistance to stretching and increases service life.
Molded notches (in lengths 3,000 mm and under) reduce thermal and bending stresses when placed on smaller diameter sheaves, while straight sidewalls ensure uniform wedging action.
The treated tensile cords resist flexing, fatigue, and shock loads.
Metric Power belts are part of Gates' V80 matching system, guaranteeing that all belts of the same type and size will be more precisely matched than the Rubber Manufacturers Association (RMA) and International Standards Organization (ISO) standards require.
The result is even load distribution on multi-belt drives and better wear.
It has a temperature range of -60 degrees to +250 degrees F to resist belt cracking and meets RMA oil and heat resistance standards and static conductivity requirements.
This V-belt is suitable for use in textile mill, machine tool, and food processing applications, among others.
V-belts, also known as fan belts in automotive applications, link two or more rotating shafts to transmit power in a drive system.
The trapezoidal shape of the belt's cross section wedges into the groove of a similarly shaped sheave or pulley to provide traction and alignment.
This wedging action increases as the load increases, providing higher torque transmission and minimal slippage.
V-belts are standard for belt-driven power transmission and can be used in single- or multi-belt systems for increased carrying power.
They are found in drive systems in the automotive, agricultural, textile, printing, mining, and office equipment industries, among others.
