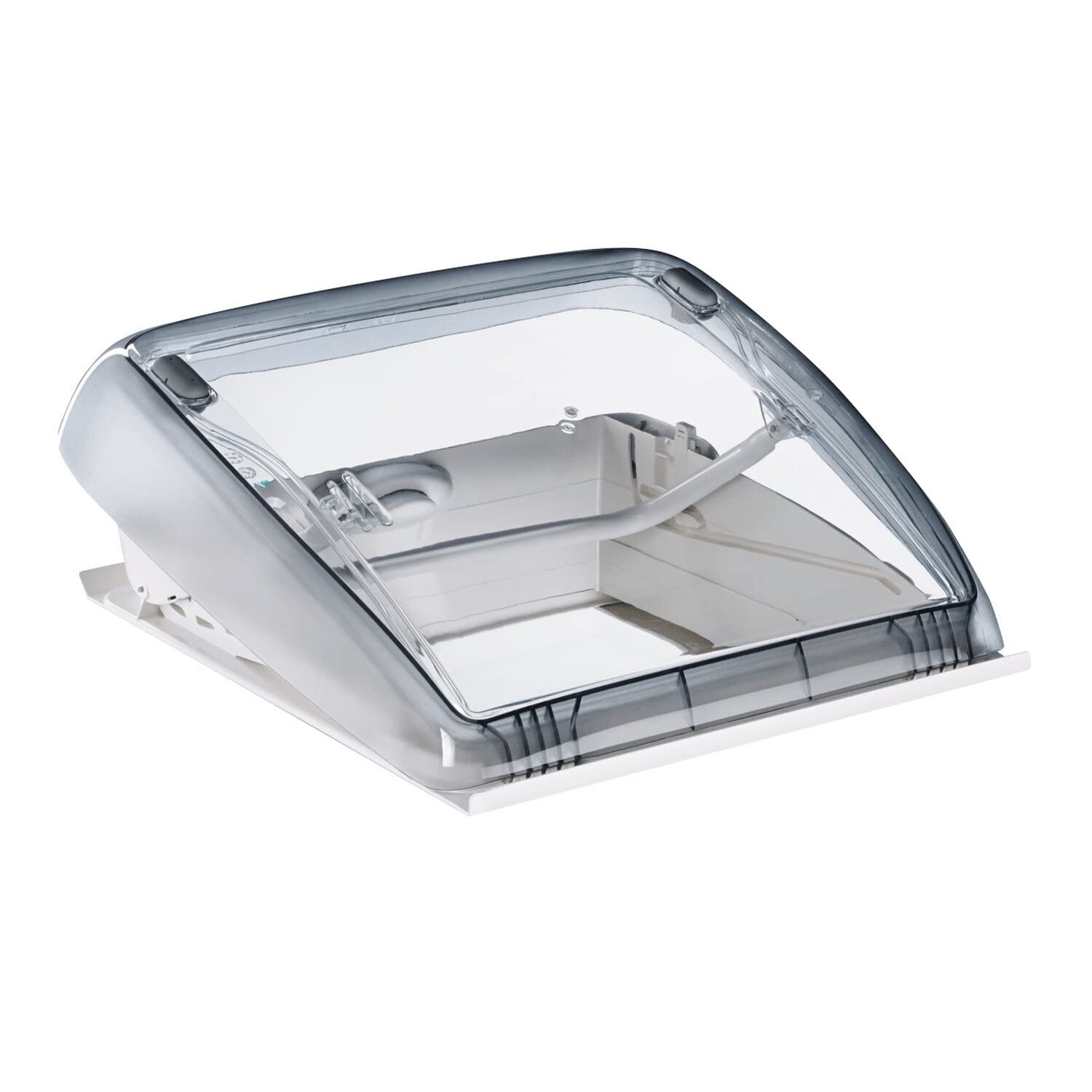

For caravans and motorhomes.

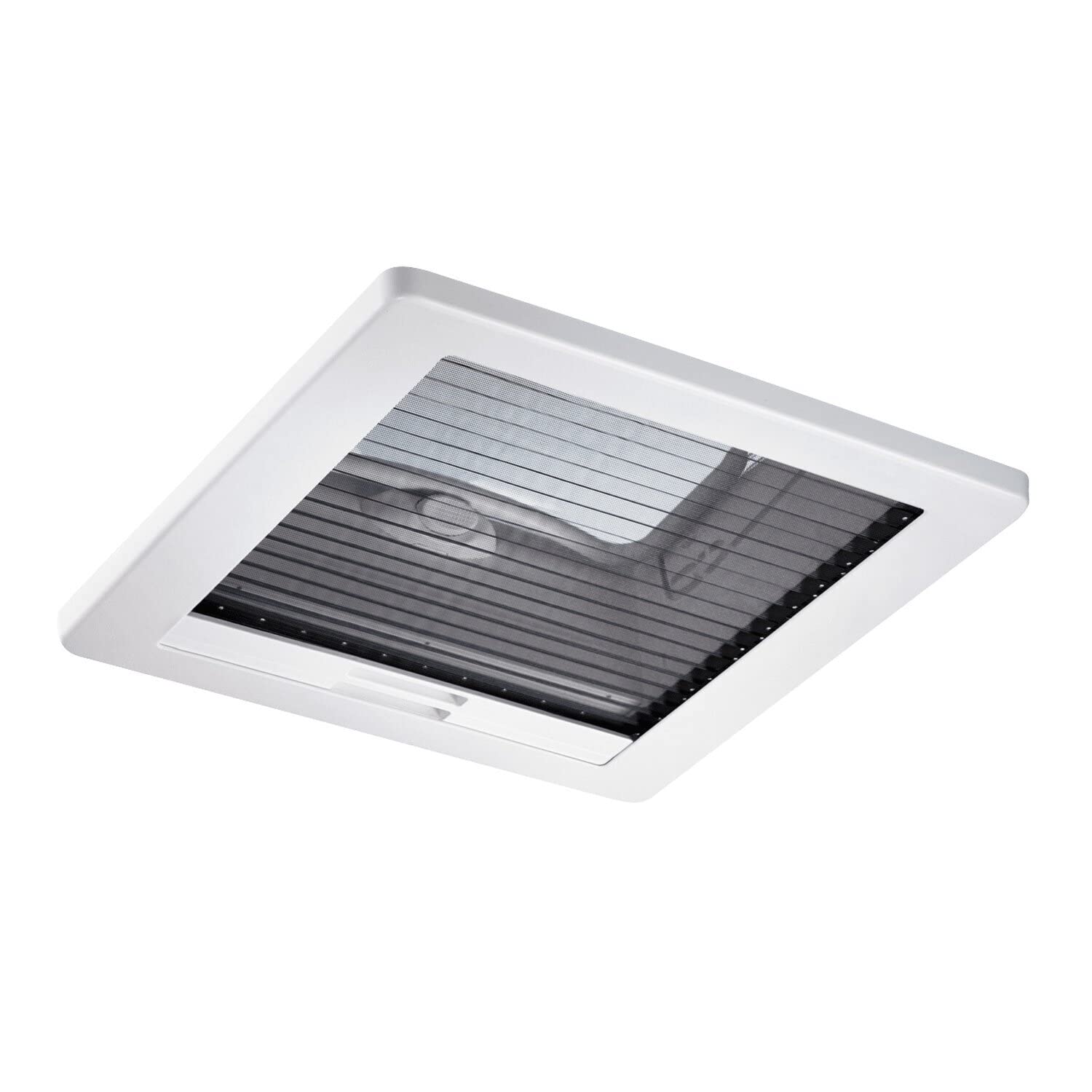

The inner frame includes blackout and insect protection that is freely adjustable.

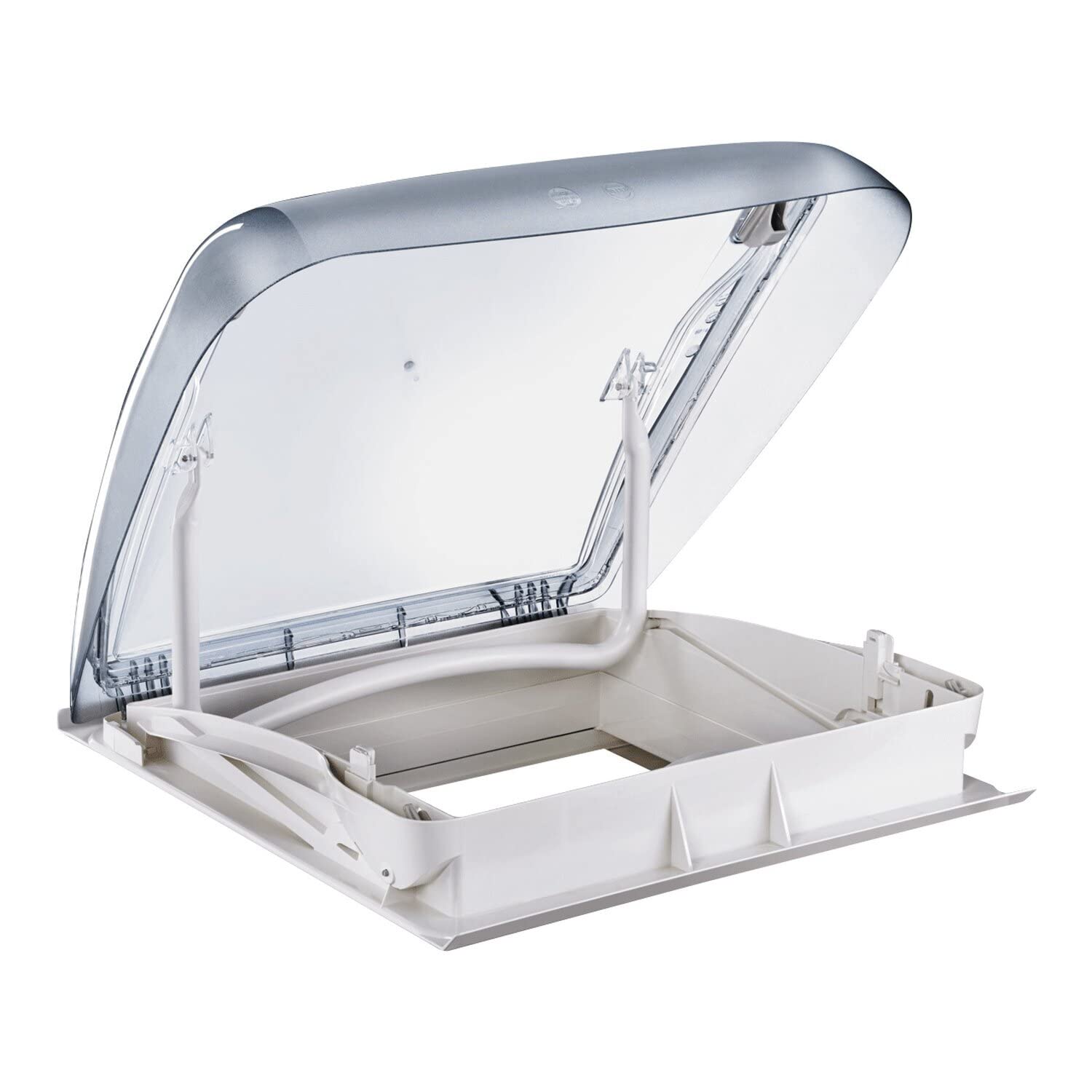

The glass dome can be adjusted comfortably with a practical bracket system.
It features double acrylic glazing.
A spoiler for noise minimization is available as an accessory.
Operation: bracket glazing dome: double glazed locking positions: 3 max.

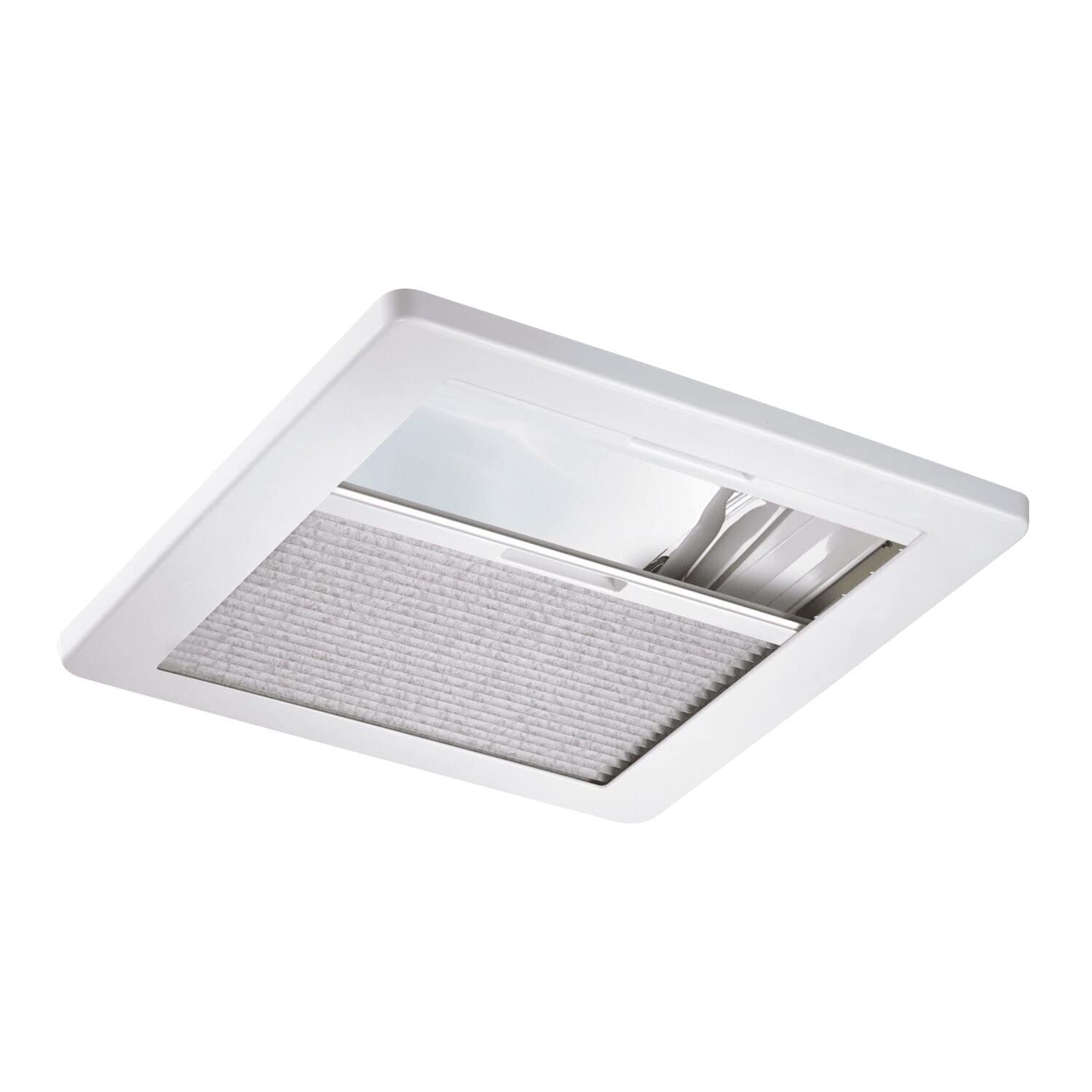

opening angle: 50° darkening: simply pleated.

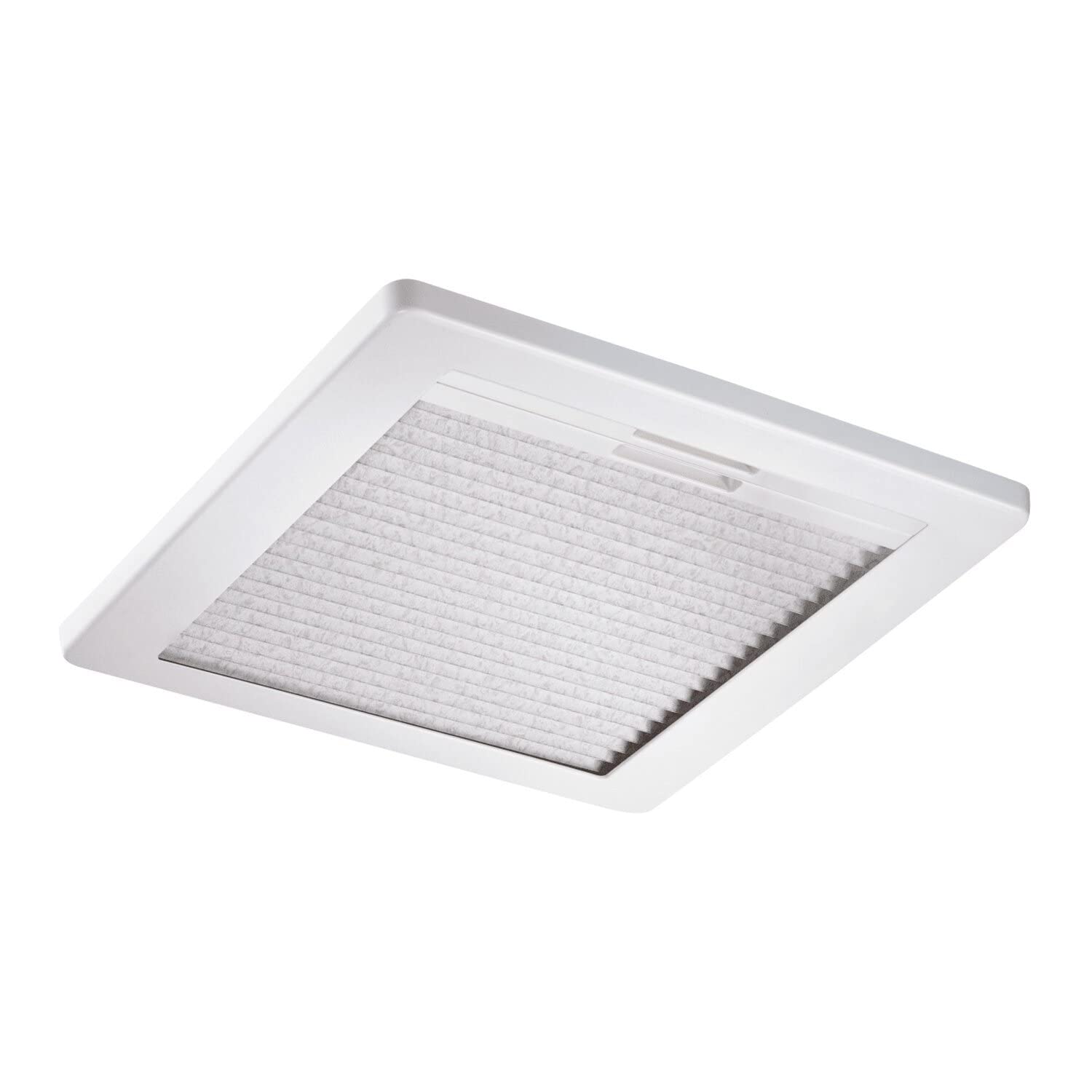

Insect protection: simply pleated.
Frame material: ASA.
Frame color: RAL 9001.
Installation dimensions: 550 x 510 mm.
Cut-out: 400 x 400 mm.
For type: Heki plus/style.
Roof thickness: 43 - 60 mm.
Installation dimensions: 550 x 510 mm.
Cut-out.
Nominal: 400.
× 400 mm forced ventilation: ?
Weight: 3 kg.
Packed size: 540 × 540 × 200 mm.
Gross weight: 4.28 kg.
