Includes WX2 station, which can operate two 120-watt tools simultaneously (view larger).
Weller's WX system keeps ownership costs low with intelligent power management to conserve energy and an exceptional degree of compatibility with tools.

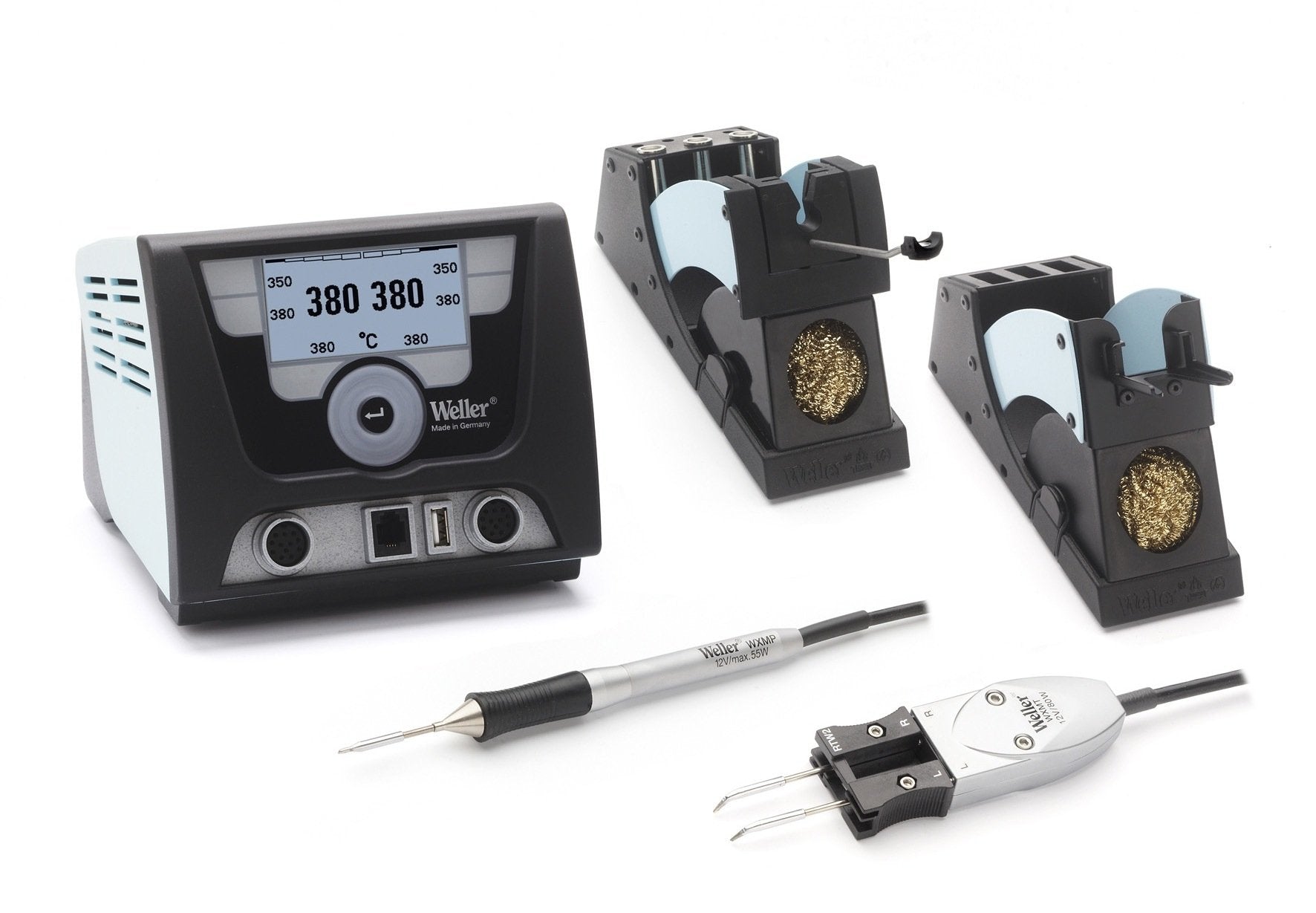

The WX2021 solder station kit comes with the WX2 station, WXMP-MS soldering iron, WDH51 tool stand, WXMT-MS de-soldering tweezer, and WDH60 tool stand.

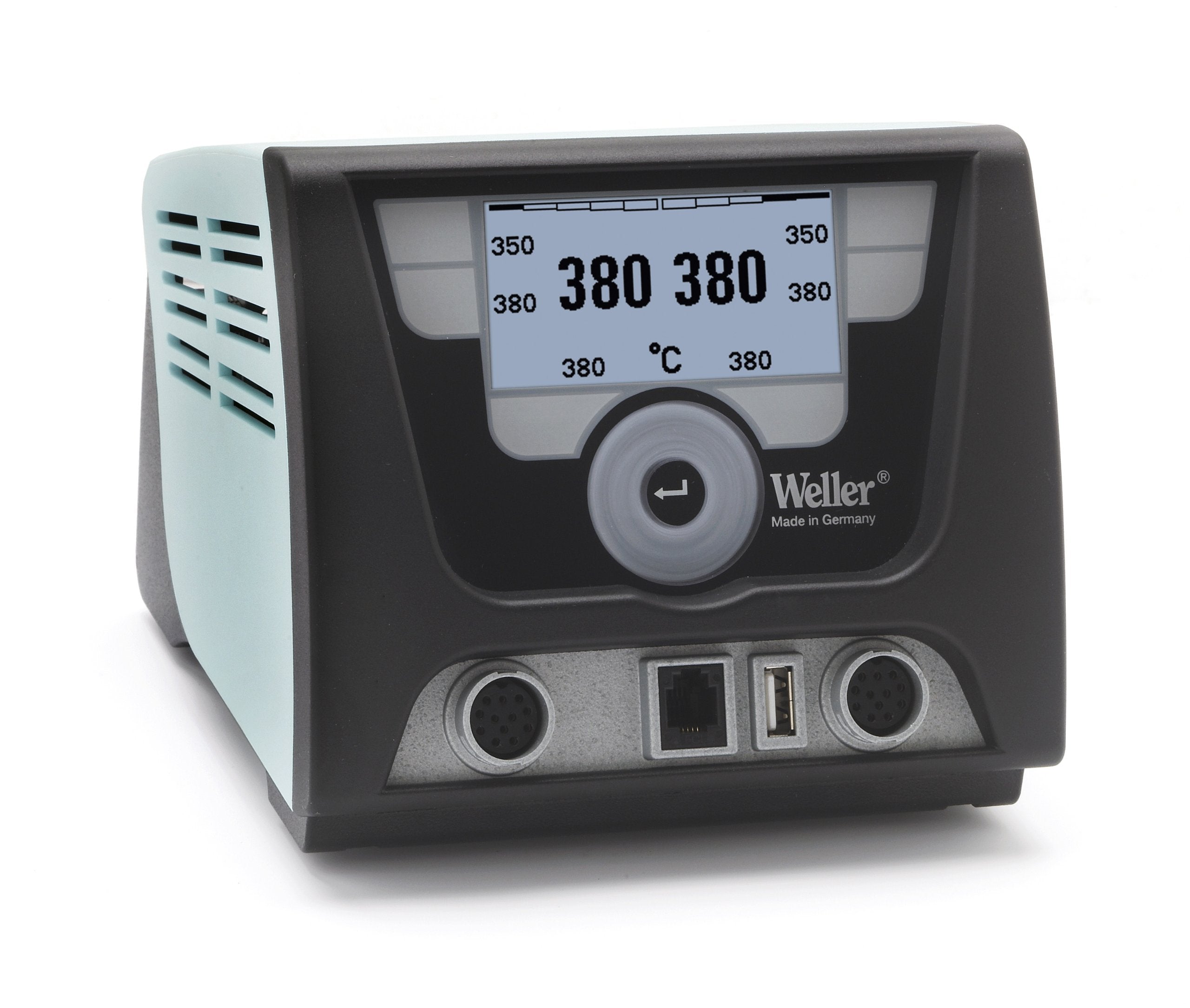

The WX2 acts as a central control unit (benchtop controller) for intelligent soldering irons, solder fume extractors, and preheating plates.
The station supports simultaneous operation of two 120-watt tools and features a blue LED backlit LCD screen viewable from all angles as well as a multiple language display.
The intuitive interface features six touch keys with radius finger guide for turn-and-click navigation.
A multi-purpose USB port can be used in conjunction with software for monitoring, parameterising, and data logging (included with the software package).

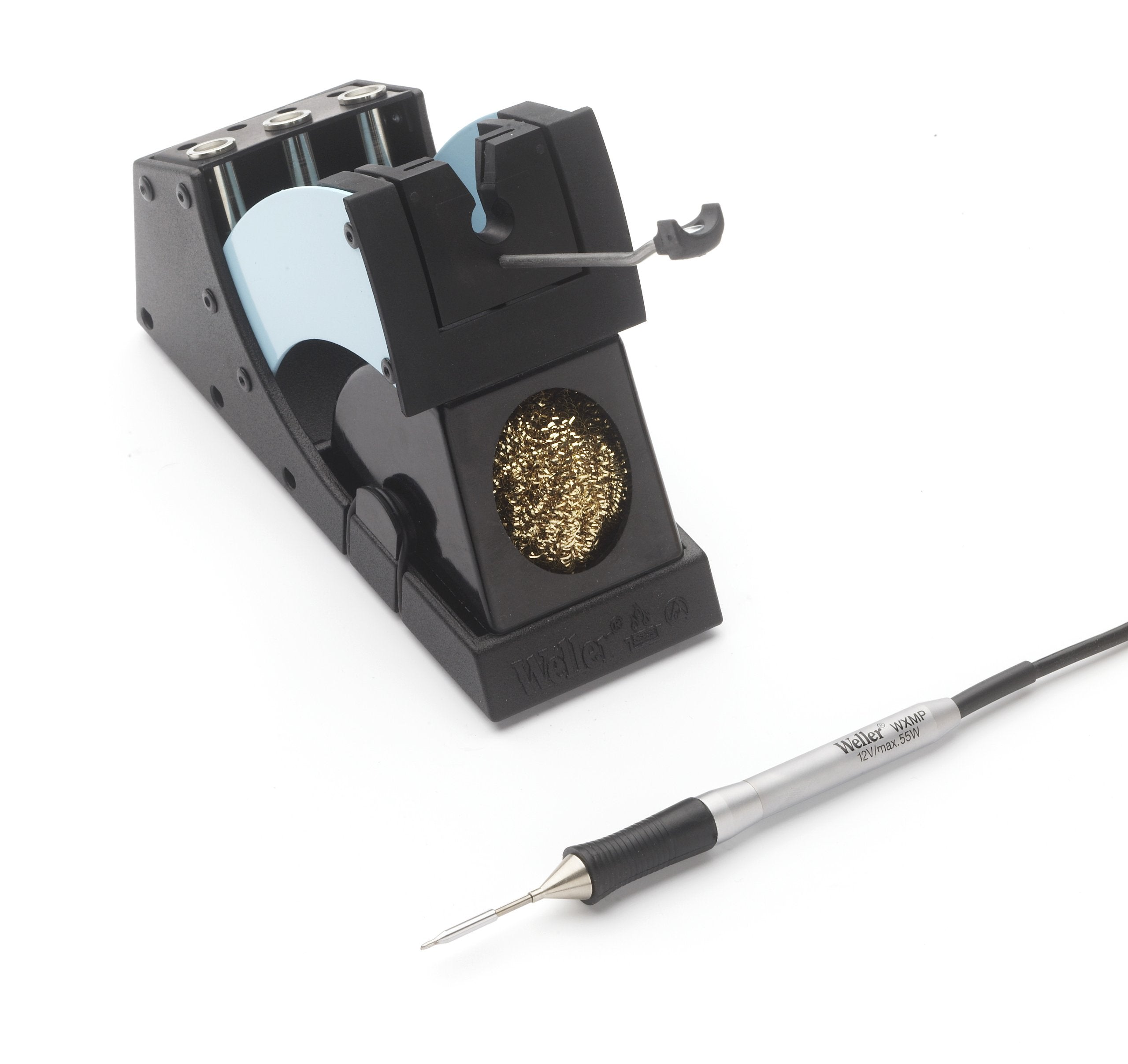

The fine, thin WXMP soldering pencil is suited for work under a microscope, while the WXMT tweezers are ideal for soldering and desoldering small SMD parts.

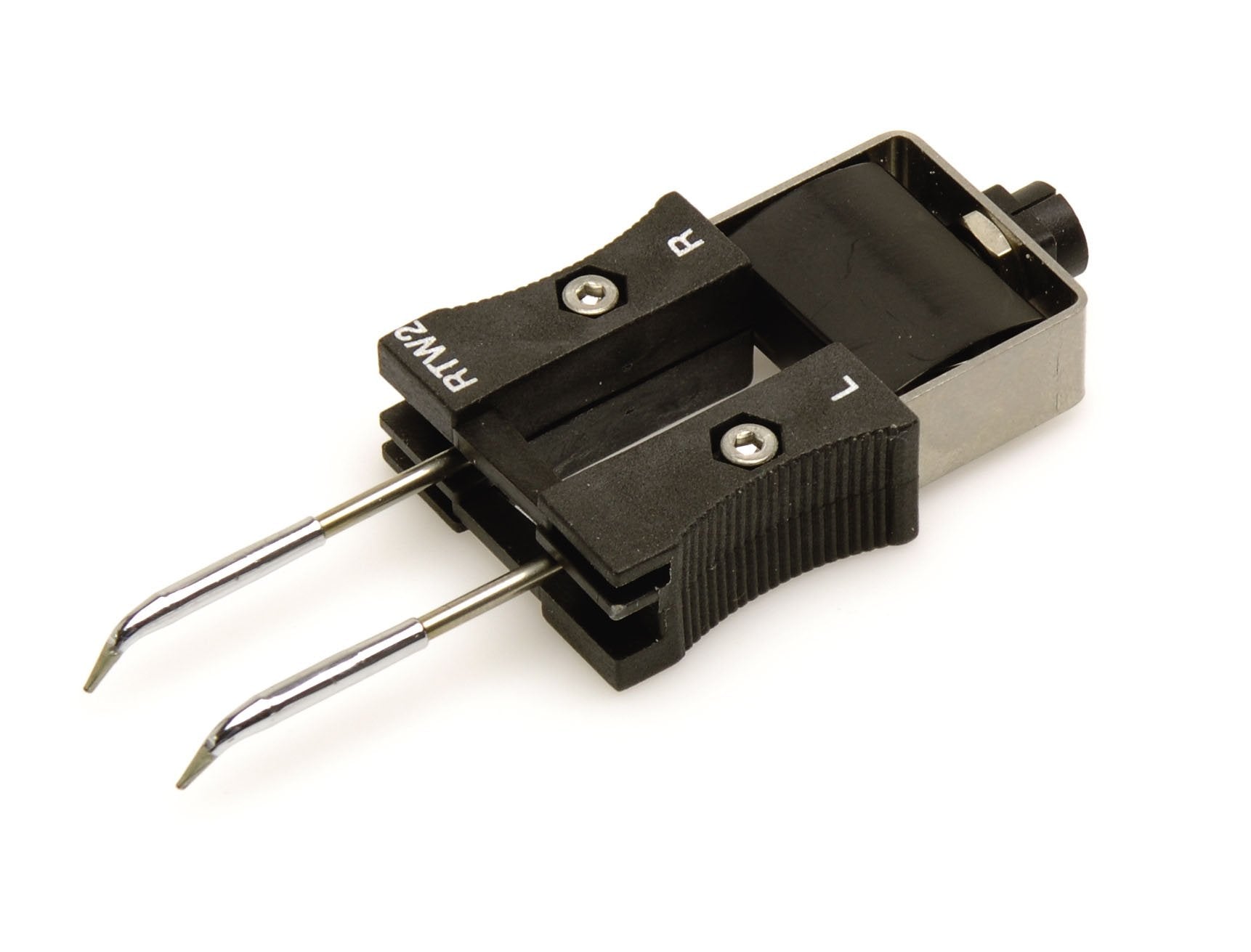

The WXMP uses RT series tips, and WXMT uses RTW series cartridges.
All Weller WX tools have an integrated sensor system with communications, signal processing, and memory built into the handle.
This allows control parameters to be stored in the tool's internal memory, not in the WX station.
Removal of the tool from its safety rest will switch the tool back to its operating temperature, eliminating the need for stop-and-go stands.
A blue LED light ring on the tool handle gives visual indication the tool is heating.
What's in the Box WX2 station, WXMP-MS soldering iron, WDH51 tool stand, WXMT-MS de-soldering tweezer, WDH60 tool stand, operating instructions.
