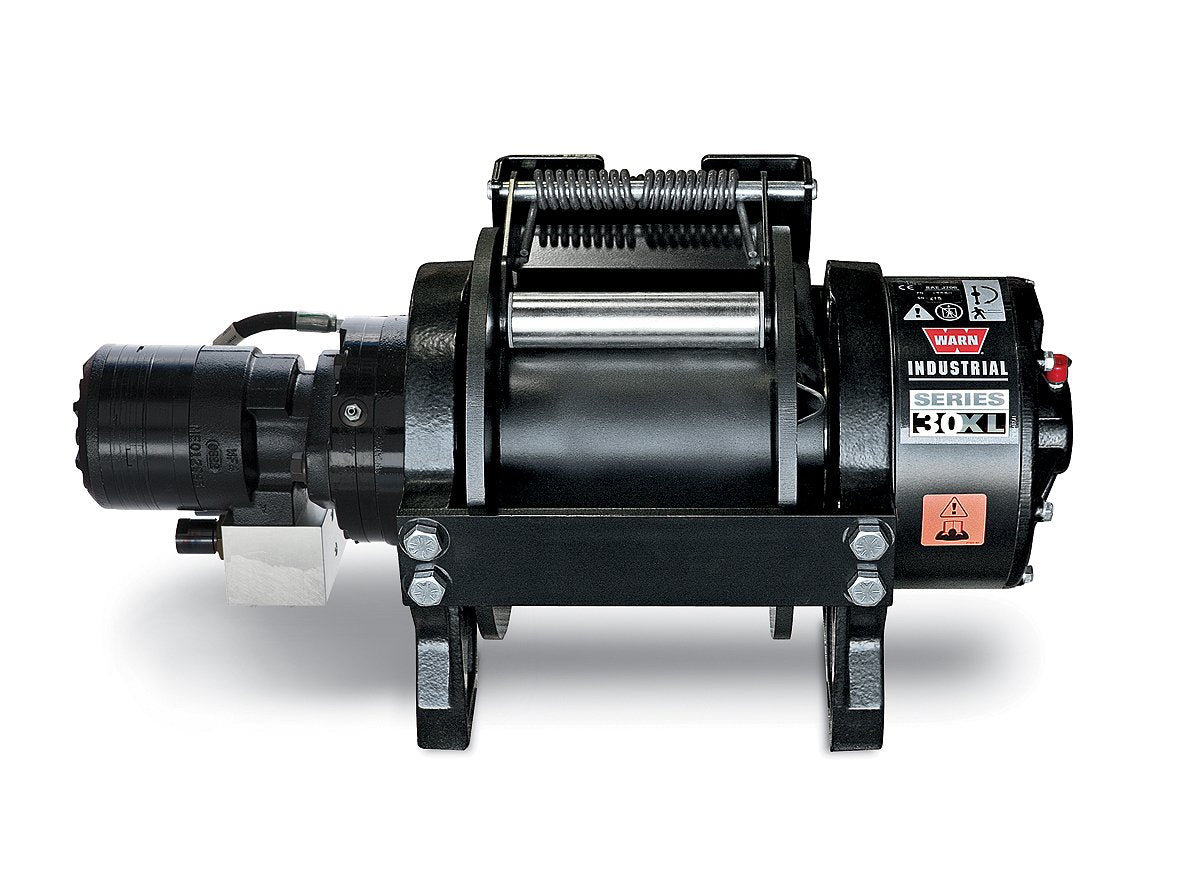

WARN SERIES 30XL-LP industrial hydraulic winch for heavy tow, utility and trailer applications.
Designed for use on trailers, rollback trailers, and heavy-duty applications, this winch has a 30,000 lb.
pulling capacity.
LP stands for 'Low Pressure' and indicates this winch uses a larger displacement motor to pull full rated load at only 2320 psi.
Ideal for hydraulic systems that operate below 3000 psi, the Series 30XL-LP winch includes a 14.9 cubic-inch high-performance motor and spring-applied disc brakes that are designed to hold full-rated load.
The hardened aircraft-grade nickel chromoly two stage planetary geartrain delivers speed and reliability.
This model features an air clutch and standard drum.
Meets SAE J706 and CE specifications.
Rope and other accessories are available and sold separately.
With a 30,000 lb.
capacity, this winch is suitable for wreckers, trailers, or severe duty applications.
