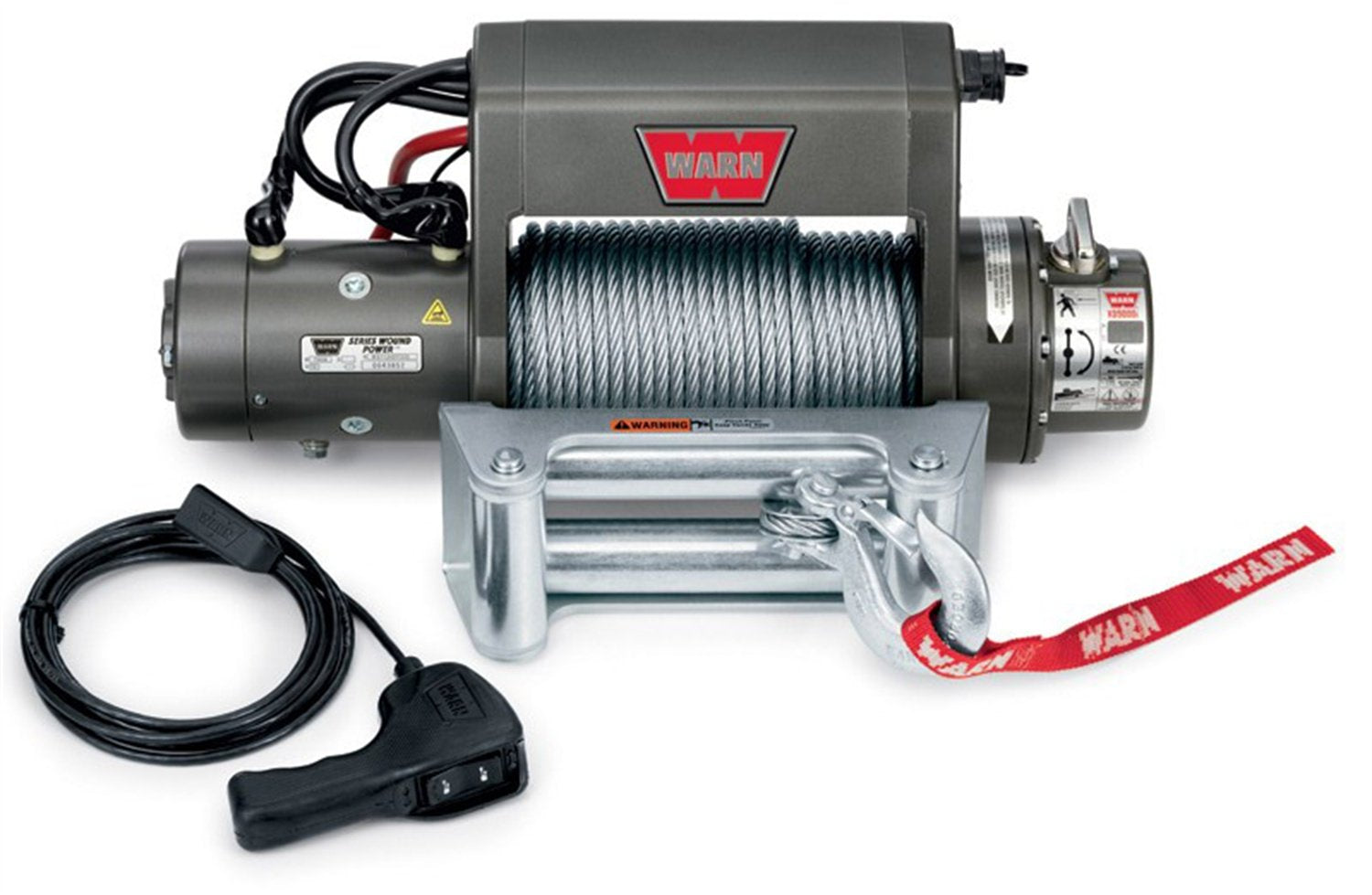

From the Manufacturer You will probably see more XD9000i winches on trail rigs than any other winch.
The no load line speed of 38-feet per minute, three-stage planetary gearing, and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.
SPECIFICATIONS Part Number: PN 27550 (12V DC), PN 275502 (12V DC, CE), PN 274022 (24V DC, CE) Rated Line Pull: 9000 lbs.
(4080 kgs.) single-line Motor: 12V 4.6 hp, 24V 2.5 hp, Series WoundTM Remote Control: Remote switch, 12' (3.7m) lead Geartrain: 3-Stage Planetary Gear Ratio: 156:1 Lubrication: Aeroshell #17 Clutch (freespooling): Sliding Ring Gear Brake: Automatic Direct Drive Cone Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) Weight: 85 lbs.
(38.5 kgs.) Wire Rope: 125', 5/16" diameter (38m, 8mm diameter) Fairlead: Roller Recommended Battery: 650 CCA minimum for winching Battery Leads: 2 gauge, 72" (1.83m) Finish: Argent Powder Coat Nuts/Bolts: PN 39570 CE Winches: CE products are designed to meet European Standards.
CE winches include CE labels, Manuals, Safety Hook and Thimble.
Winch Dimensions: 21.8" L.
x 6.3" D.
x 9.94" H.
(553mm L.
x 160mm D.
x 252mm H.) Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
