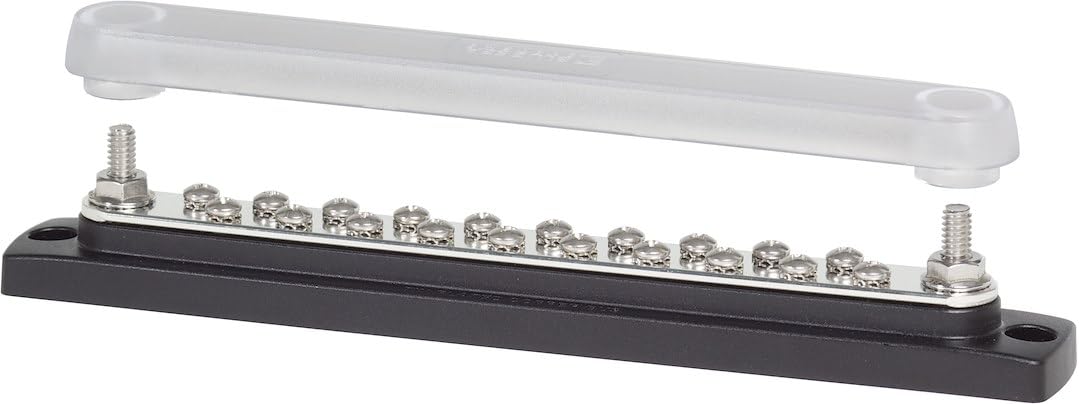

150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover.
PN: 2312.
The stud design provides direct terminal to bus contact for a low resistant connection.
Stainless steel studs and screws allow for high torquing to achieve excellent electrical contact.
Tin-plated copper bus ensures maximum conductivity and resistance to corrosion.
The UL 94-VO rated (self extinguishing) base material resists high heat.
The press-on insulating cover attaches to studs and allows unobstructed wire access.
Raised bus provides easy access to multiple wires on a single screw.
Continuous Amperage 130 Amperes AC.
150 Amperes DC Maximum Voltage Rating 300 Volts AC.
48 Volts DC Bus Material Tin-Plated Copper CDA 110/UNS11000 Base Material Glass Reinforced Polycarbonate Cover Material Polycarbonate Studs Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal Screws Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal Weight 0.58 lb.
