Power Up: The BangerBar by Morimoto is a piece of equipment designed to set a standard in its segment, and the same applies to the wiring.

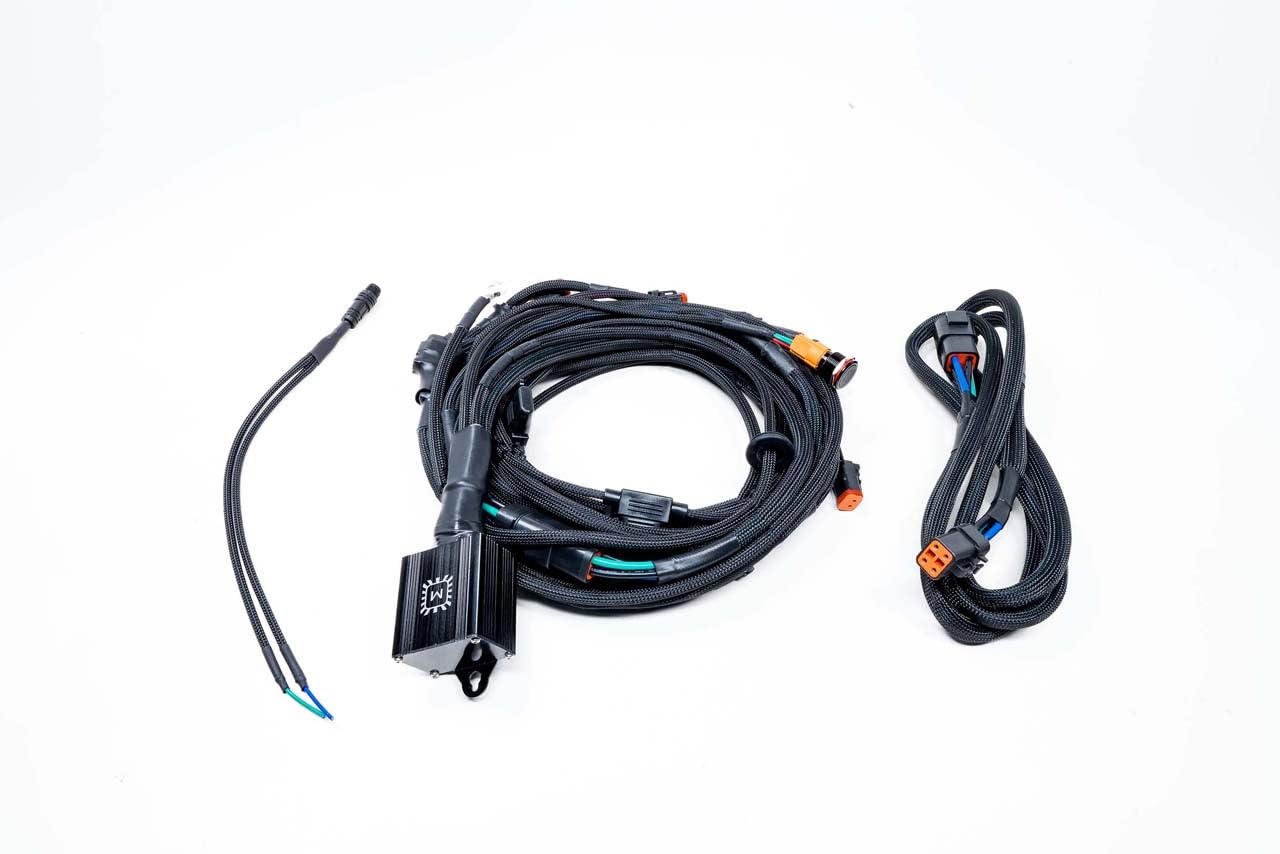

This harness is designed to deliver reliable power to a row of our 2 or 4Banger pods linked together with ease.
OEM+: Not one component on the harness was overlooked for cost or simplicity.
Triple sealed proprietary 4-pin relays with hanger.

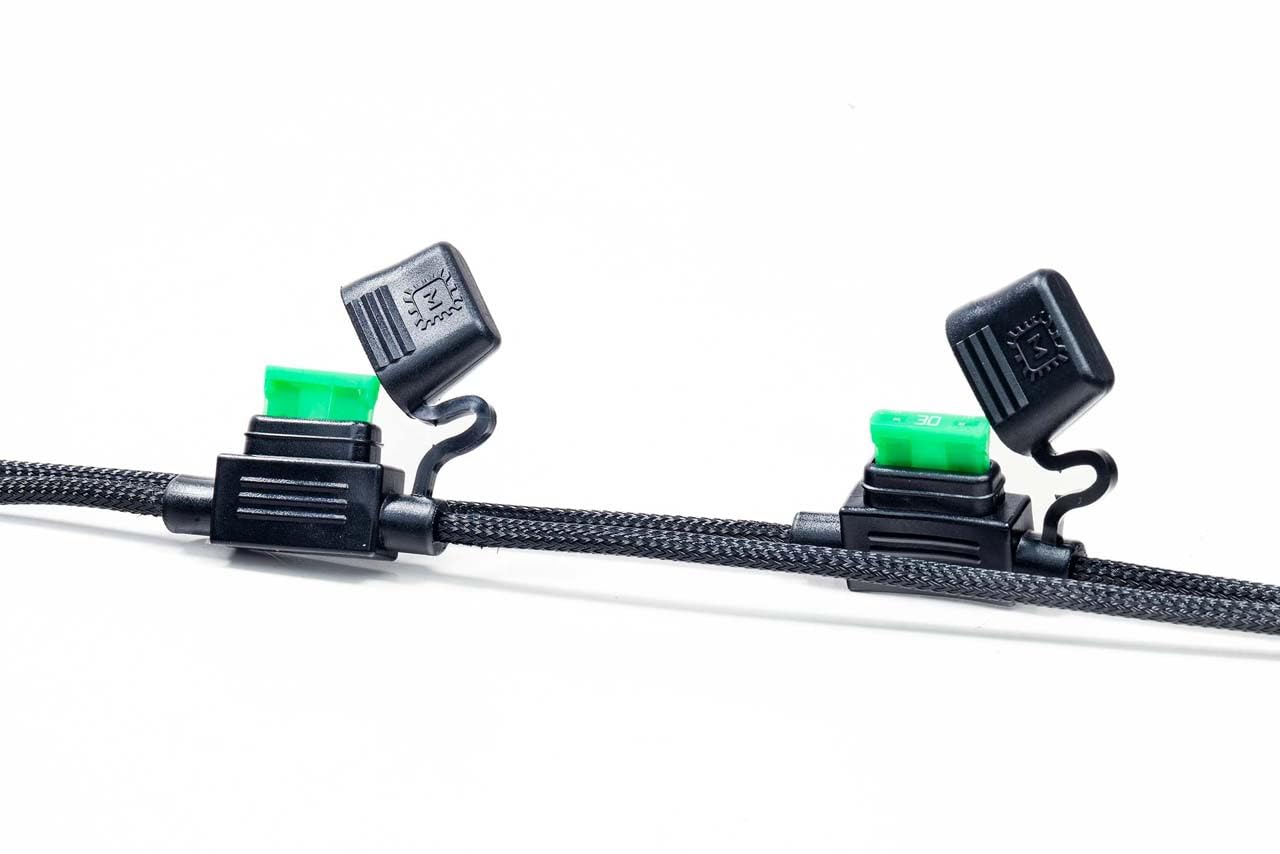

Proprietary over-molded inline fuse holder with 20A mini fuse.

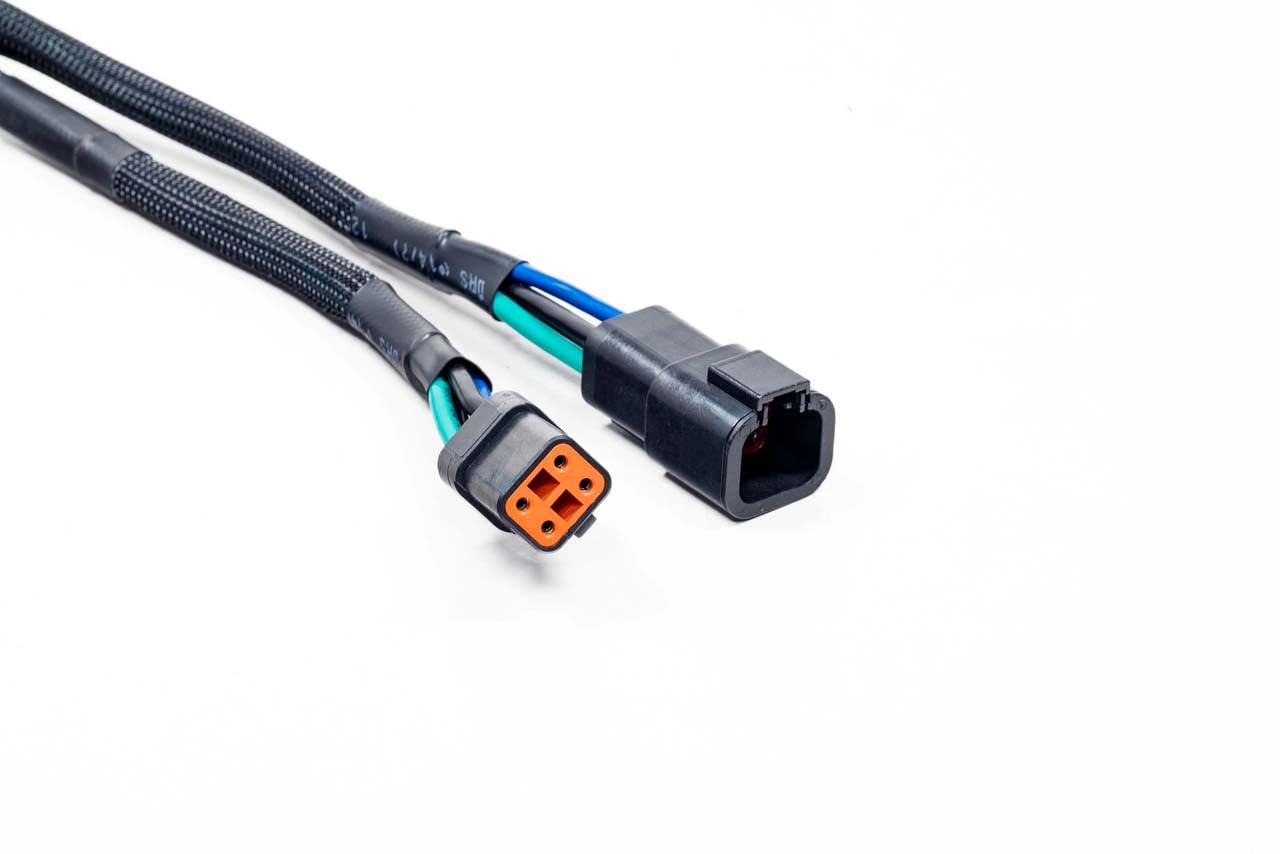

DT06-2S female outputs with dual seals.
Stainless steel power and ground terminals.

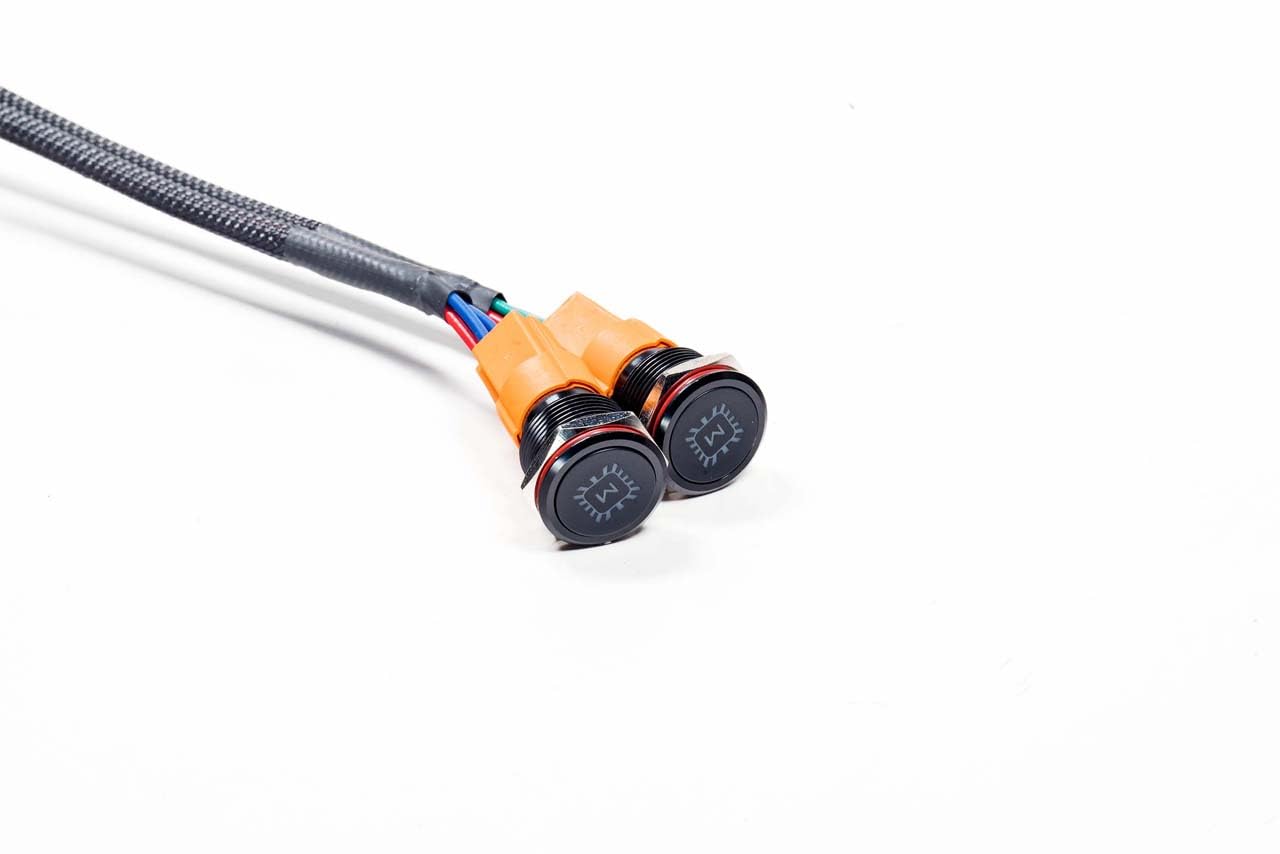

Proprietary M-Spec push button switch with amber-LED backlight.
Proper: All wiring is properly sized and relays rated for flicker-free, reliable power delivery.
Every line of the 16 awg copper wiring is protected with black mesh insulation.
Every connector has been over-molded, sealed, or protected with heavy-duty heat shrink.
Your factory wire harness will fall apart before this thing.

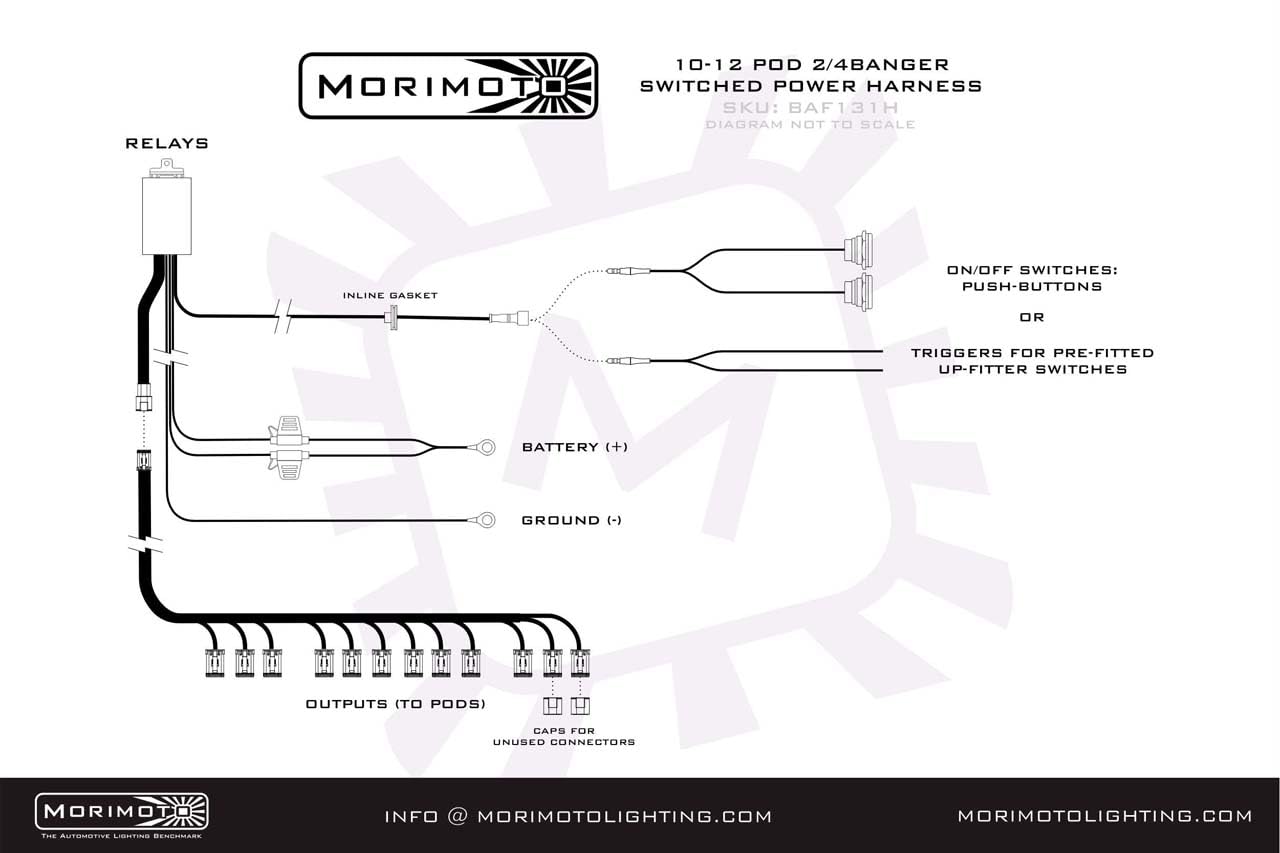

Plug n Play: The connections on the harness have been laid out logically to power up to eight Bangers linked together with the BangerBar links.

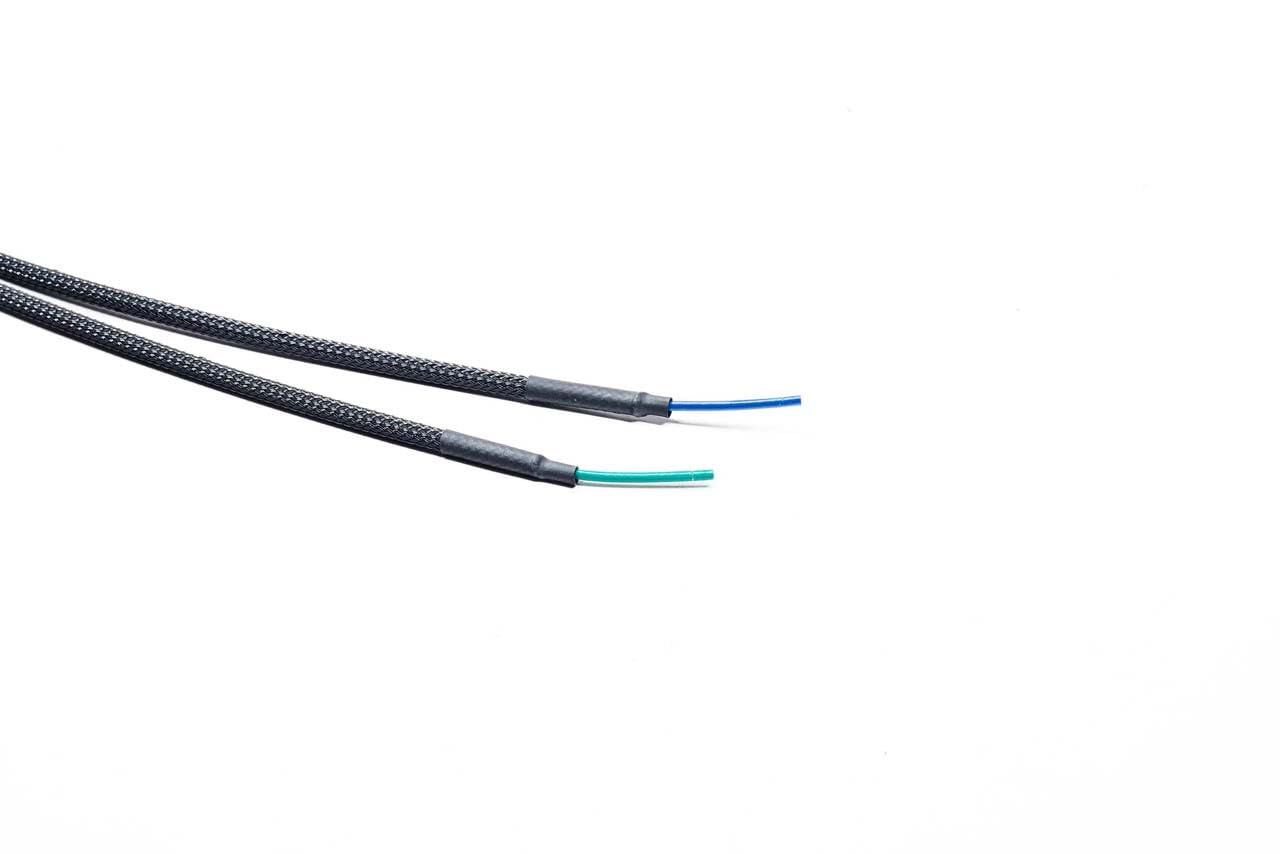

The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves installation ease, since you don't have to jam the switch mechanism through the firewall.
The harness also includes an input line that's ideal for use with upfitter switches.
Compatible: This harness is a perfect match for Morimoto BangerBar setups with numerous pods linked together as a light bar.
It is purposely designed to deliver enough power and laid out with intention.
There are two versions: one for 6-8 pods and another for 10-12 pods.
