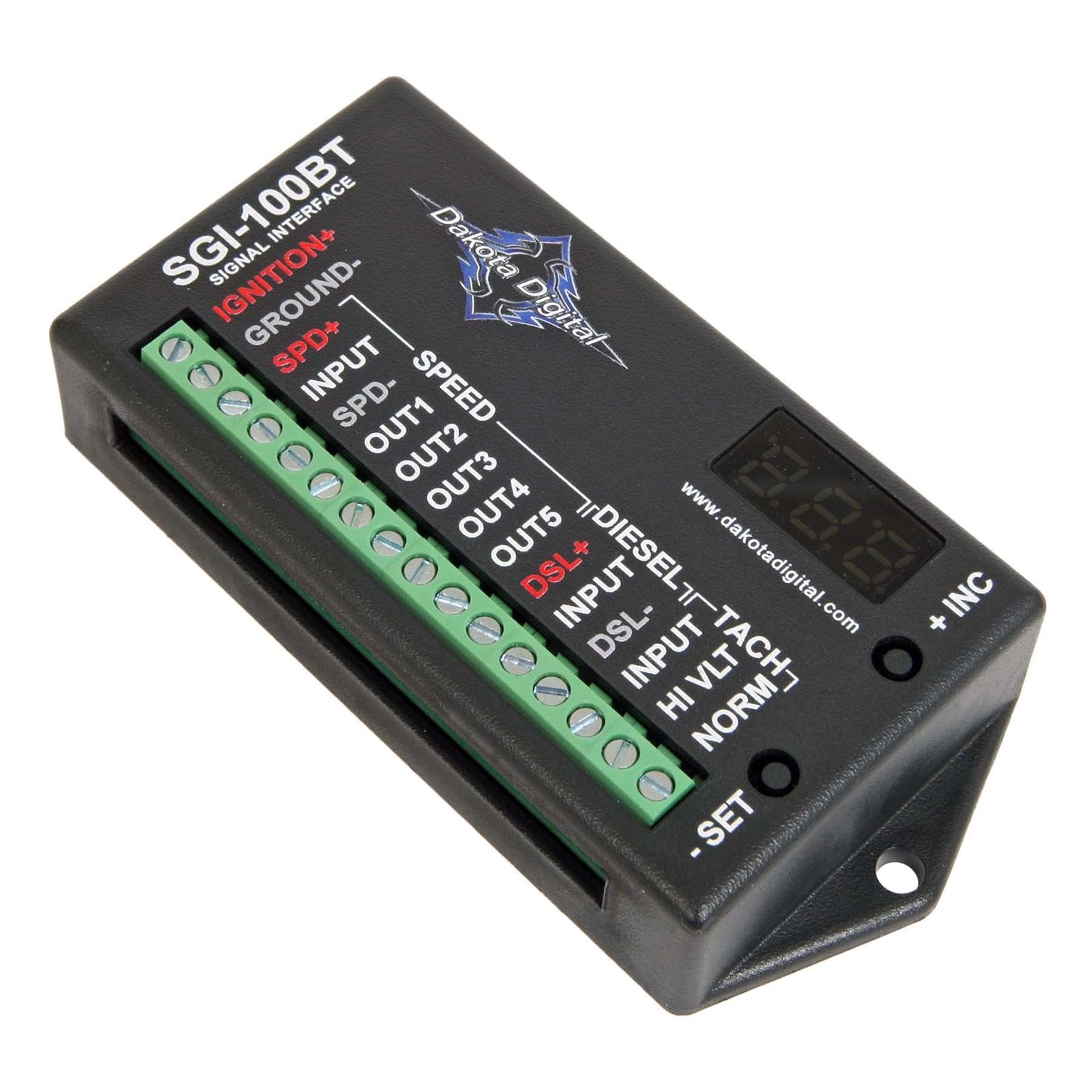

The functionality of three devices in one case measuring 4” x 2” x 1”!
The SGI-100BT can adjust, split, and recalibrate an electronic speed signal, calibrate a tach signal, and aid in the creation and adjustment of a gas tach signal for diesel swap applications!
Speed calibration ranges from 25% to 400%.
Multiple speed outputs are available for multiple devices.
Electronic pull-up is built in; high or low voltage input is supported.
Tachometer settings range from 1 to 16 cylinders and 5V or 12V signal type.
Diesel applications include outputs for 4, 6, or 8 cylinder tachs.
It can read off a flywheel sensor (available separately), timing gear sensor, or alternator W-terminal (stator tap).
Bluetooth technology syncs the unit to an available mobile app for programming and setup.
Built-in programming buttons and LED display are available for setup instead of the app.
Not for use with ABS sensors or systems.
