Brand: Rock Jock
Forged RockJock CE-9114-24 Johnny Joint
RockJock CE-9114-24 is a forged Johnny Joint.
In stock, ready to ship
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.

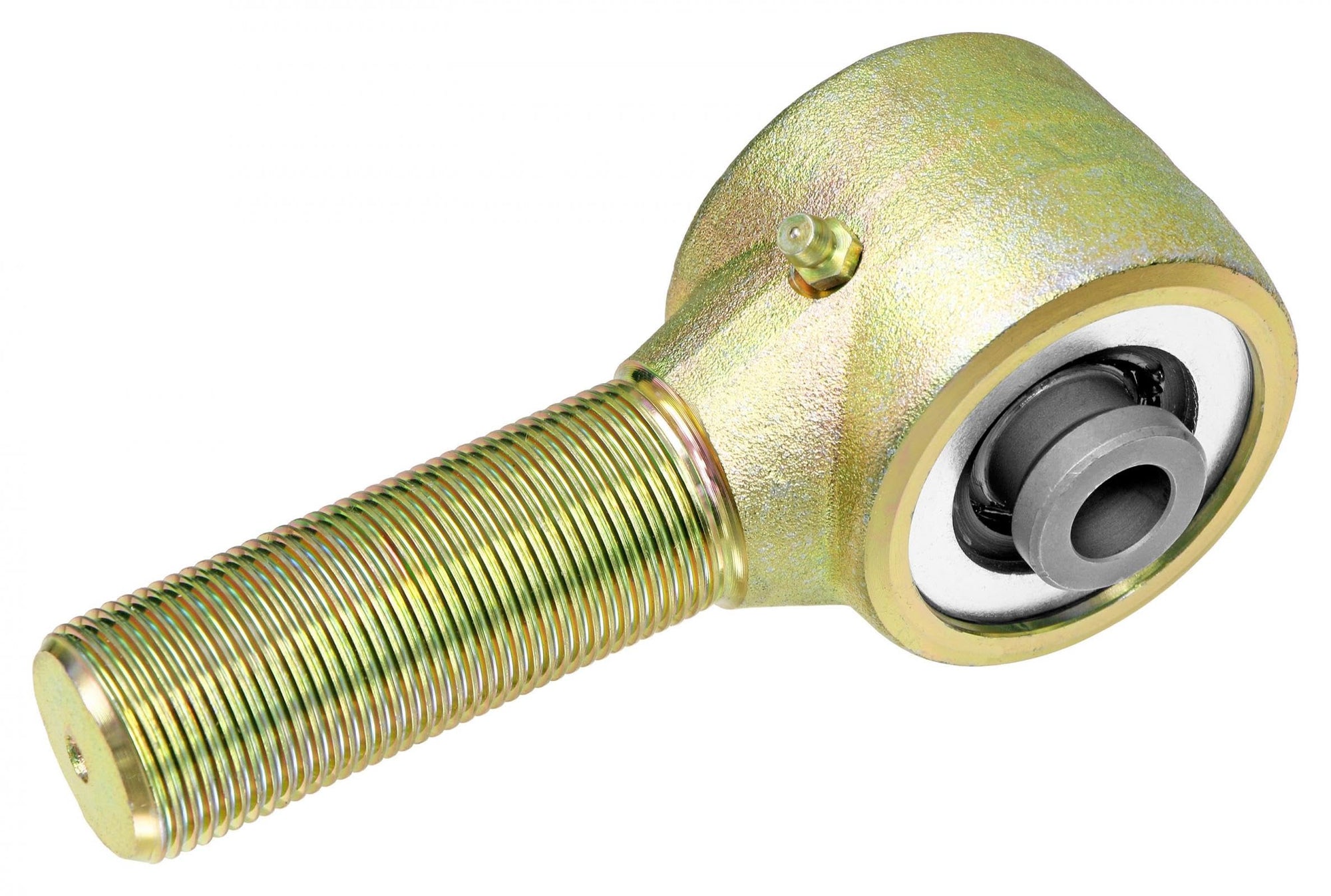

Forged RockJock CE-9114-24 Johnny Joint
RockJock's forged Johnny Joints for fabricators and suspension system builders offer unrestricted movement of 30 degrees in any direction compared to 22 degrees on a common heim joint!
Johnny Joint rod ends provide cushioning that a heim joint cannot offer via high-density urethane bushings that encase the inner ball.
The center balls, which are heat treated, are cross-drilled for thru-bolt lubrication, and the internals of the joint are retained with 2 heavy duty, heat treated side washers and a snap ring.
This joint has a diameter of 2 1/2 in., fitted with a zerk fitting for greasing, 2 1/4 in.
of 1 1/4 in.-12 right hand threads on the shank, and a mounting width ball of 2.585 in.
with a .562 in.
thru bolt hole.
It is finished in gold zinc plating.
Key Features
Specifications
- Length
- 7.0 lb
- Width
- 4.0 lb
- Height
- 3.0 lb
- Weight
- 3.0 lb
- ASIN
- B08PDVYK2H
- UPC
- 810038152035
- Ships From
- United States
- Brand
- Rock Jock
Frequently Asked Questions
About Forged RockJock CE-9114-24 Johnny Joint
01 What is the design of the joint?
Forged Johnny Joint Design
02 What is the movement degree of the joint?
30 Degrees Of Unrestricted Movement
03 What type of bushings does the joint use?
High-Density Urethane Bushings
04 What is the ASIN for this product?
The ASIN for this product is B08PDVYK2H.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 810038152035.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 30.
