Brand: BLUE SEA
Fuse Block Blue Sea Systems 5029 Screw Term Blade
Fuse Block ST Blade 12 Circuit with Cover, part number 5029, can be used for 24-hour circuits.
In stock, ready to ship
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Fuse Block Blue Sea Systems 5029 Screw Term Blade
The Fuse Block ST Blade 12 Circuit with Cover, part number 5029, from Blue Sea Systems can be used for 24-hour circuits.

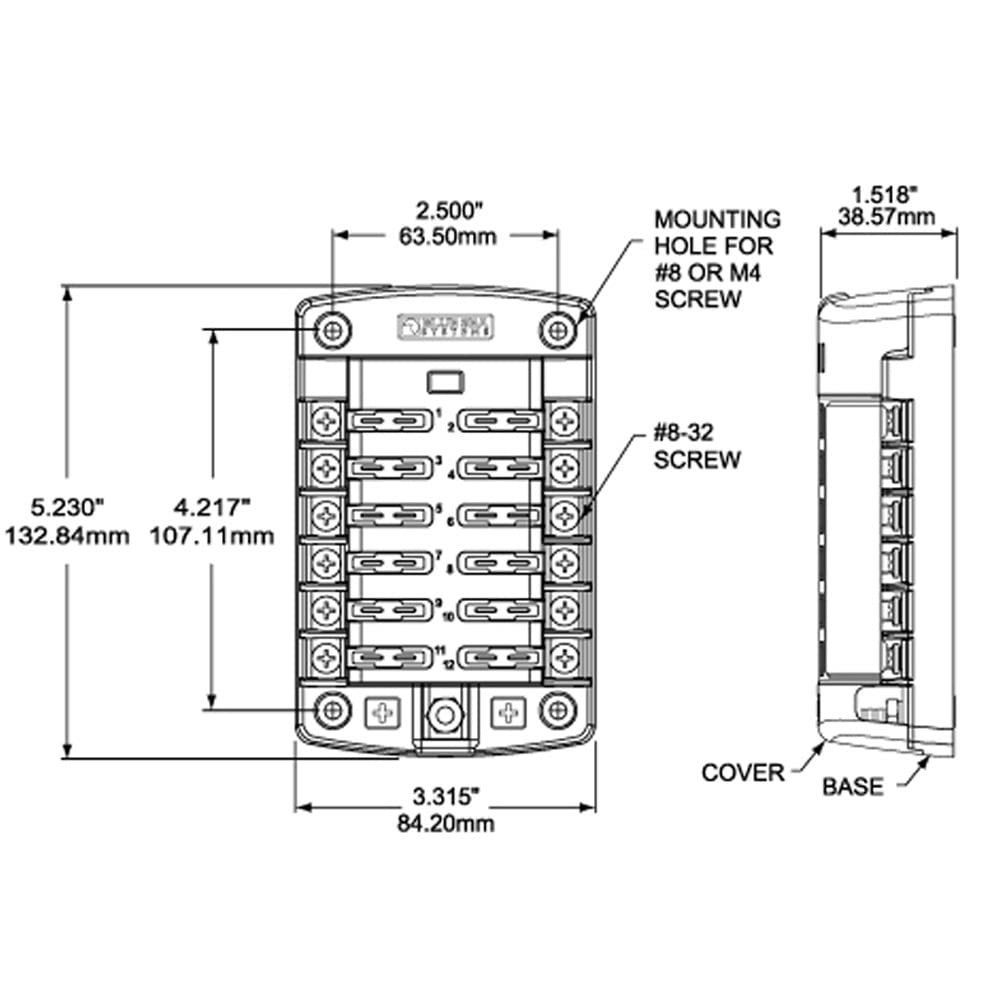

Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting: #8 (M4) Screw, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18 in-lb, Screw terminal type: #8-32 screws with captive star lock washer.
It features a positive distribution bus with #10-32 stud.

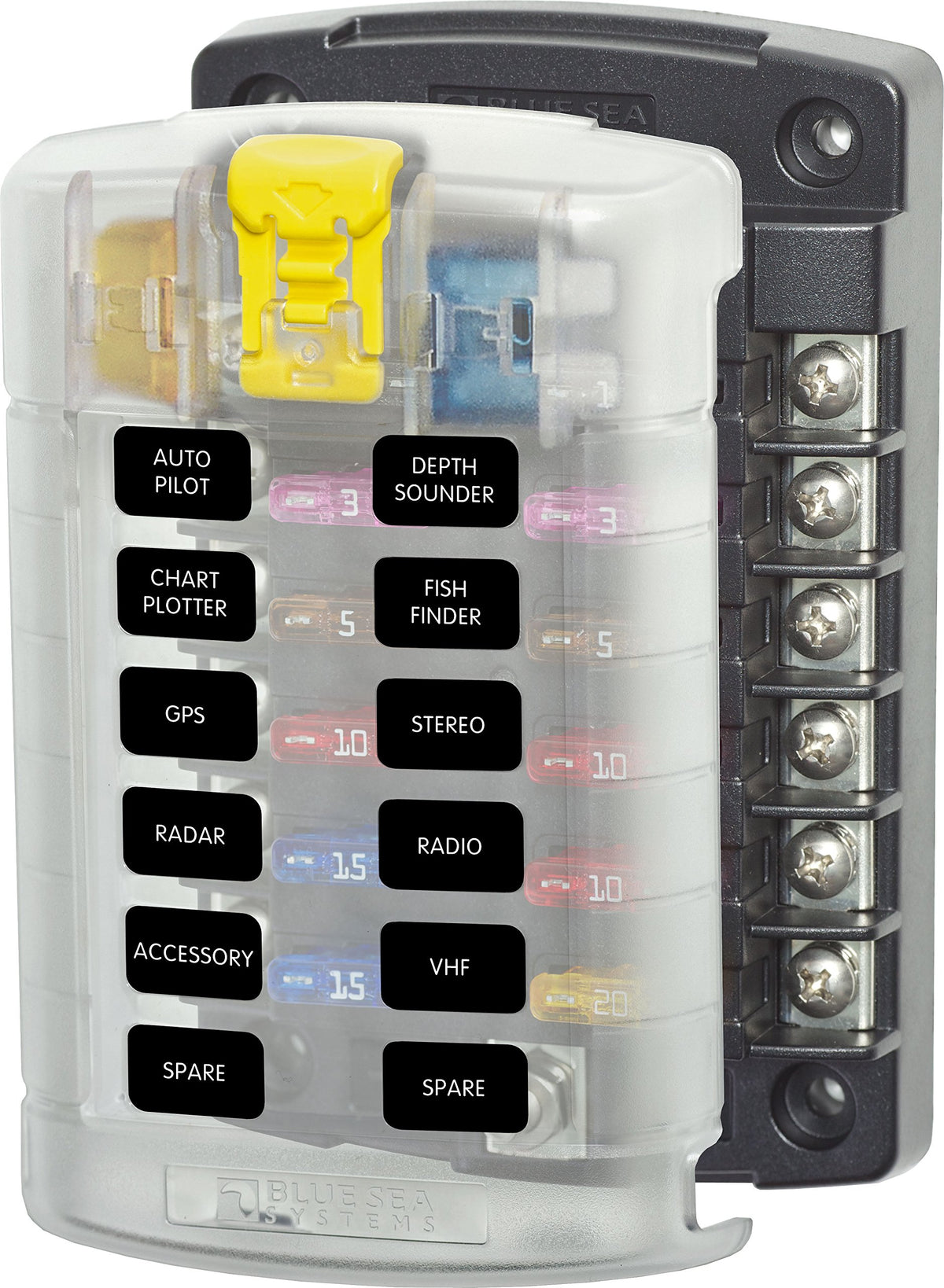

The clear insulating cover has label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements, and includes a push button latch that is easy to open.
It accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately.
The product includes 20 write on circuit labels.
Key Features
Specifications
- Length
- 7.87 lb
- Width
- 3.87 lb
- Height
- 1.79 lb
- Weight
- 0.68 lb
- ASIN
- B000MMH1GC
- UPC
- 632085050290
- Ships From
- United States
- Brand
- BLUE SEA
Frequently Asked Questions
About Fuse Block Blue Sea Systems 5029 Screw Term Blade
01 What is the part number of the Fuse Block?
The part number is 5029.
02 What is the maximum voltage for the Fuse Block?
Max Volts: 32V DC.
03 How many write on circuit labels are included?
Includes 20 write on circuit labels.
04 What is the ASIN for this product?
The ASIN for this product is B000MMH1GC.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 632085050290.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Oct 16.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
