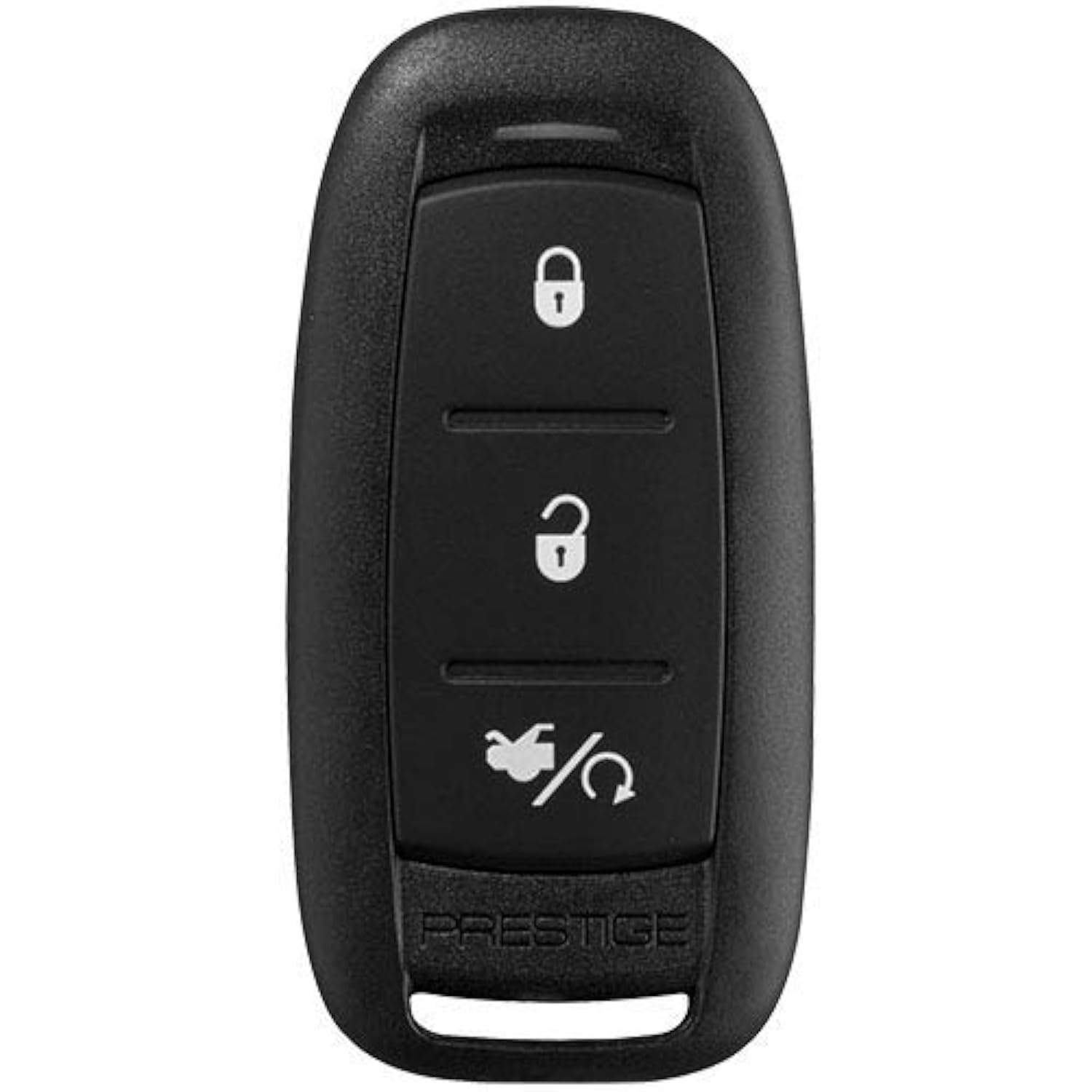

1-Way Remote Prestige 173BP.
FCC ID: ELVATNC.
To Auto Program a remote control: 1.
Cycle the ignition of the vehicle to ON.
2.
Press and release the valet/override button three (3) times.
The system will beep one (1) time to indicate it has entered programming for remote control.
3.
Press the #1 button of each remote control you wish to program.
The system will beep and flash the parking lights one (1) time to indicate the remote control is successfully programmed.
NOTE: The #1 button is the LOCK button on all keyless entry remote controls or the START button on all one (1) button remote controls.
4.
Cycle the ignition of the vehicle to OFF to exit programming mode, or cycle the ignition key OFF/ON to advance to the next Feature Bank.
Notes: The system will store a maximum of four (4) remote controls in memory.
Additional programmed remote controls will delete the oldest programmed remote control.
The system will accept a maximum of two (2) 2-Way remote controls.
During normal operation, the Programmed Transmitter Notification (PTN) function indicates how many remote controls are programmed by flashing the LED a certain number of times when the ignition of the vehicle is turned on.
Deleting All Remotes: 1.
Perform steps one (1) and two (2) above.
2.
Press and hold the Valet/Override button for five (5) seconds.
3.
The system will sound one (1) long beep.
This indicates all remotes have been deleted from memory.
