Brand: Rock Jock
Rod Ends Johnny Joint
Johnny Joint rod ends feature a 2 1/2 in. diameter and long shank.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.

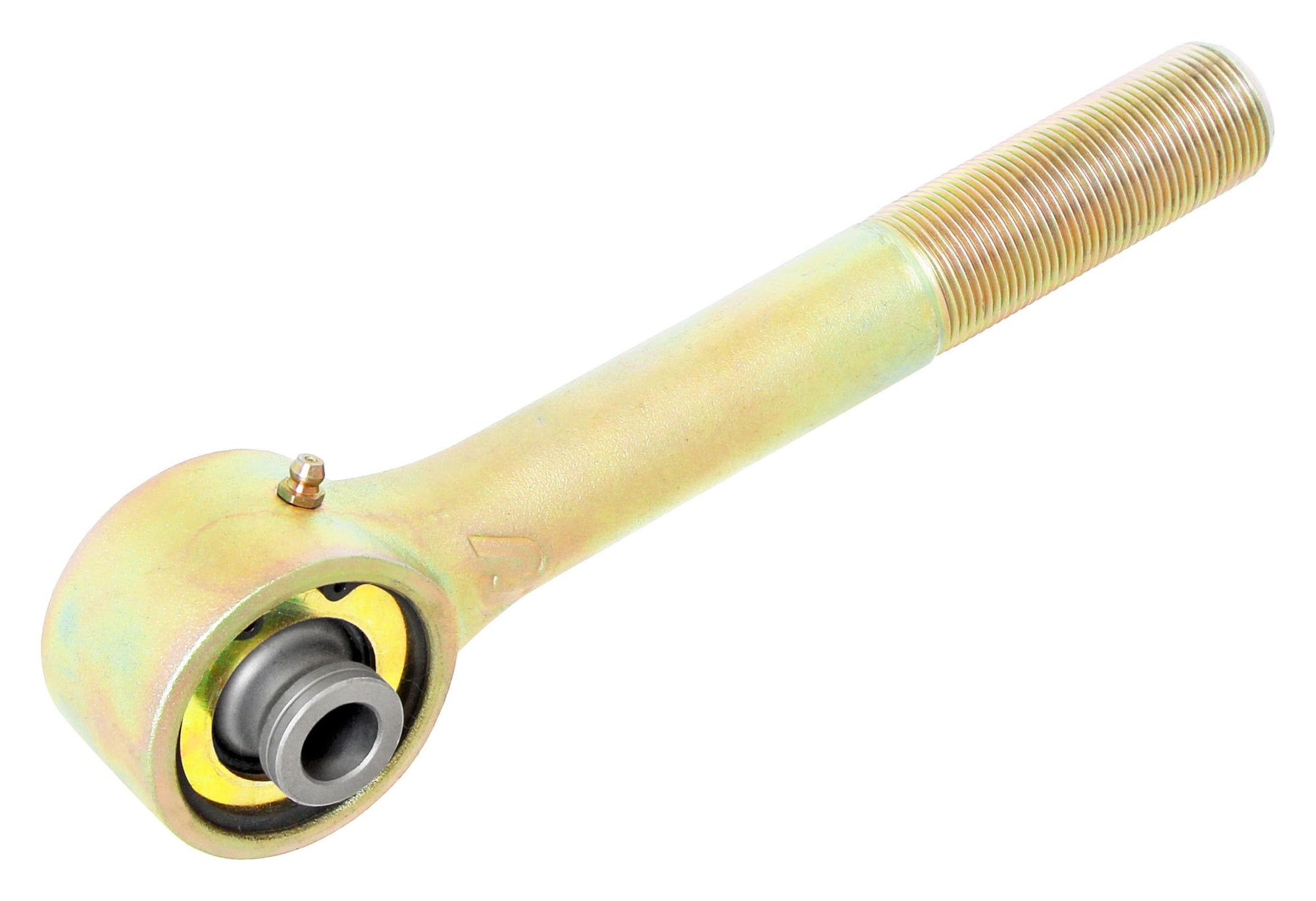

Rod Ends Johnny Joint
RockJock's narrow forged Johnny Joints for fabricators and builders of suspension systems offer unrestricted movement of 40 degrees in any direction, compared to 22 degrees on a common heim joint!
Johnny Joint rod ends provide cushioning that a heim joint cannot offer via high-density urethane bushing encasing the inner ball.
The center balls, which are heat treated, are cross-drilled for lubrication with a thru-bolt, and the internals of the joint are retained with 2 heavy-duty, heat-treated side washers and a snap ring.
This specific joint features a narrow body with a diameter of 2 1/2 in.
and a long shank measuring 9 1/2 in.
from the center line of the joint to the end of the threads, along with 3 1/2 in.
of 1 1/4 in.-12 RH threads and a center pivot ball that is 2.625 in.
wide x .562 in.
in diameter.
Additional features of the long shank design include the jam nut being pushed outward, away from the bracket where the joint mounts, to provide more clearance and accessibility to the jam nut.
Furthermore, the smooth shank area of the joint may be bent in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots.
The joint is externally greasable through a zerk fitting, and the finish is gold zinc plating.
Key Features
Specifications
- Length
- 6.0 lb
- Width
- 6.0 lb
- Height
- 3.5 lb
- Weight
- 2.0 lb
- ASIN
- B0CWSGKQ8F
- UPC
- 810038156576
- Ships From
- United States
- Brand
- Rock Jock
Frequently Asked Questions
About Rod Ends Johnny Joint
01 What is the diameter of the Johnny Joint rod end?
The diameter of the Johnny Joint rod end is 2 1/2 in.
02 What type of threads does the Johnny Joint rod end have?
The Johnny Joint rod end has 1 1/4 in.-12 RH threads.
03 What is the length of the shank on the Johnny Joint rod end?
The length of the shank on the Johnny Joint rod end is 9 1/2 in.
04 What is the ASIN for this product?
The ASIN for this product is B0CWSGKQ8F.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 810038156576.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 28.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
