Brand: ARCO Marine
TILT New Motor
ARCO Part #6268 fits specific Suzuki models from 1991 to 2003.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Why shop with us

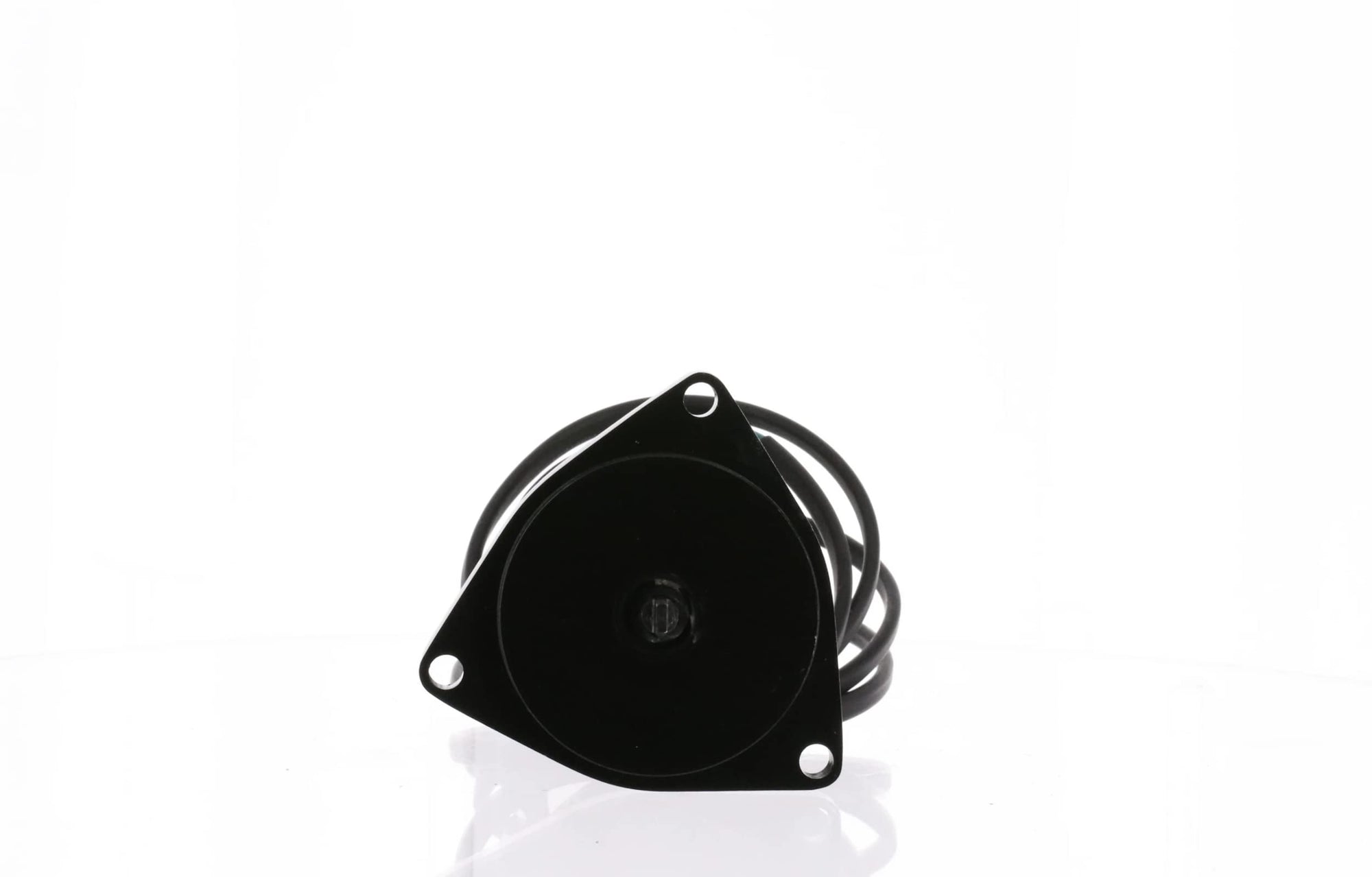

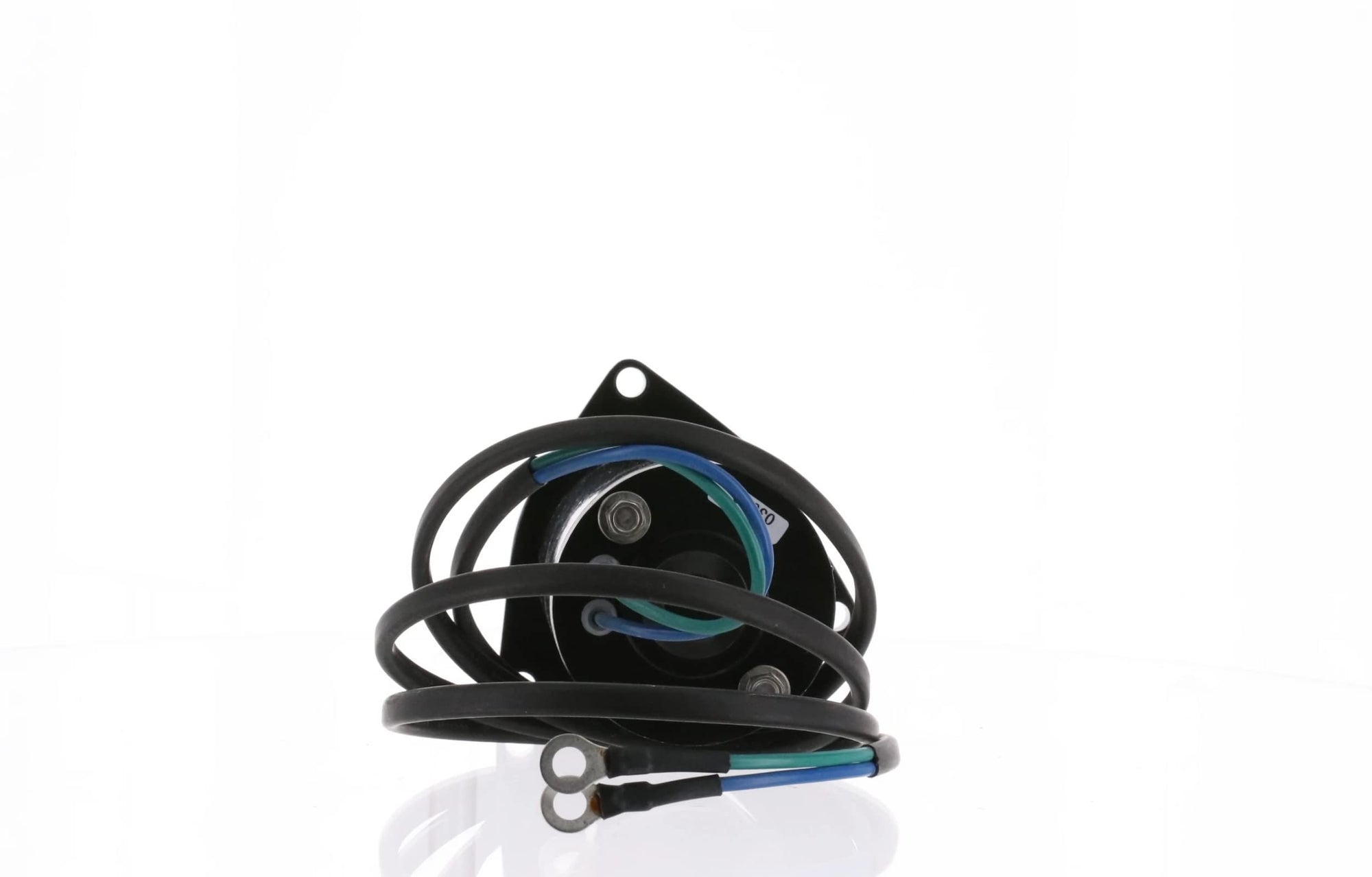

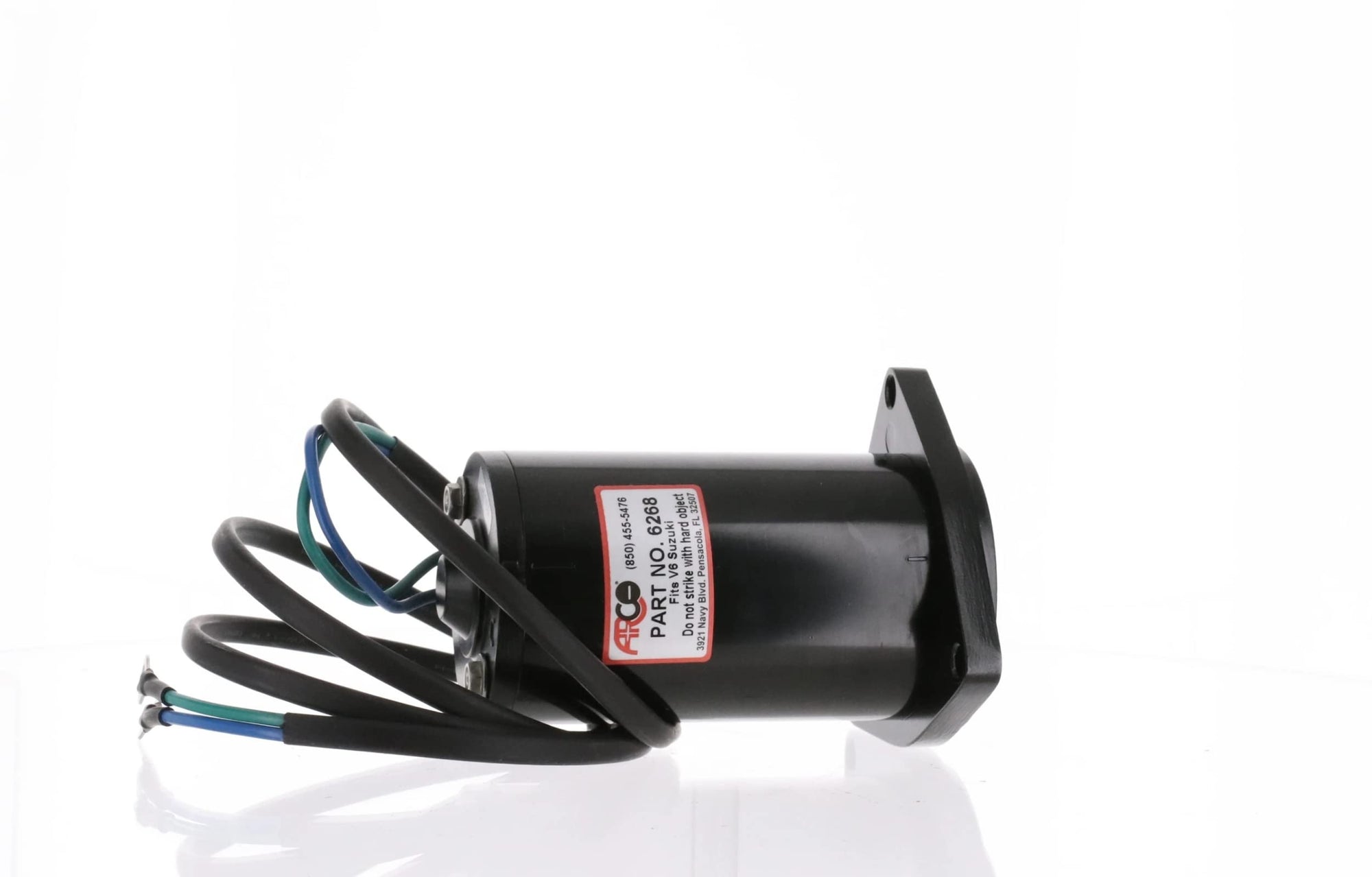

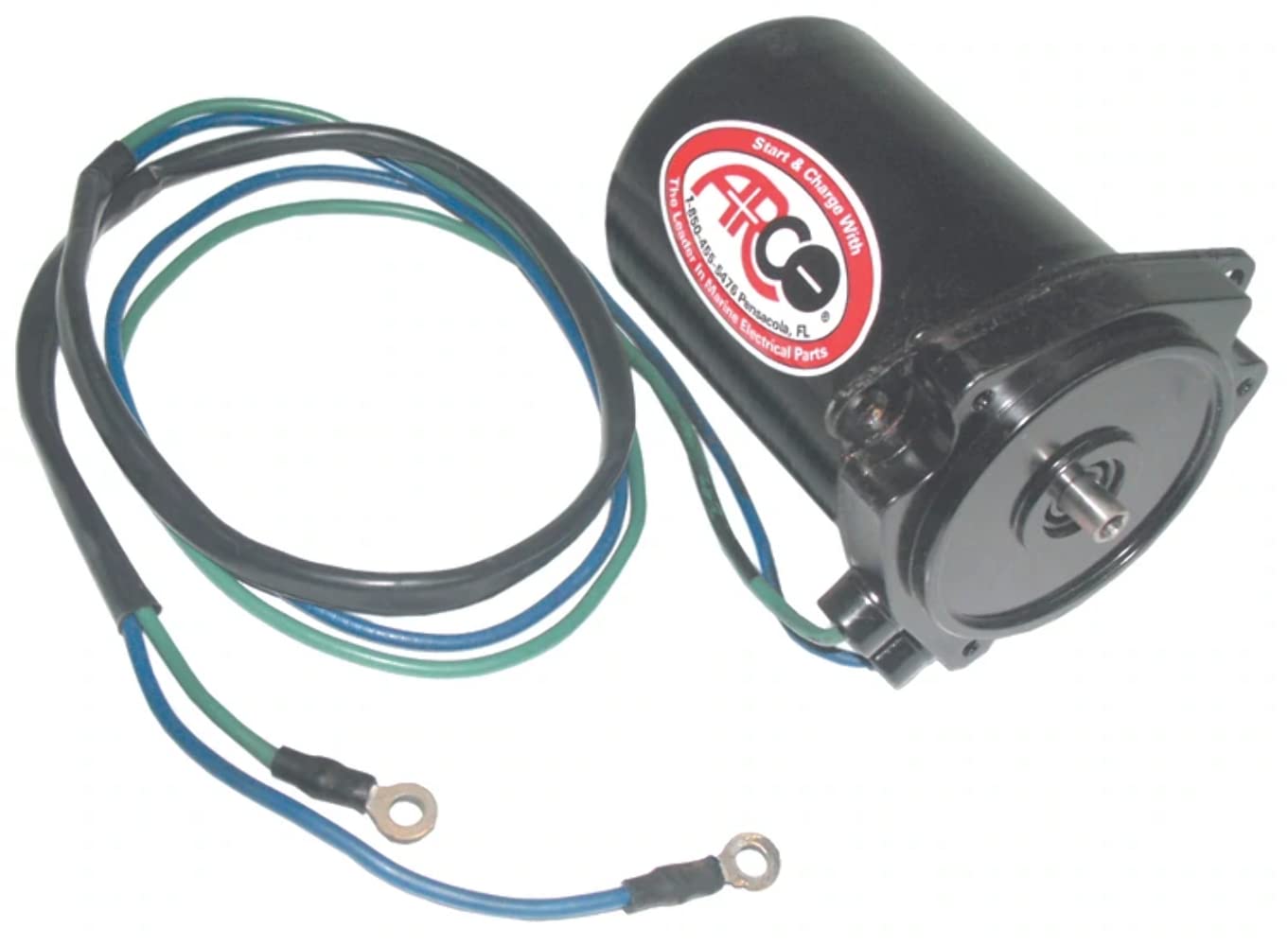

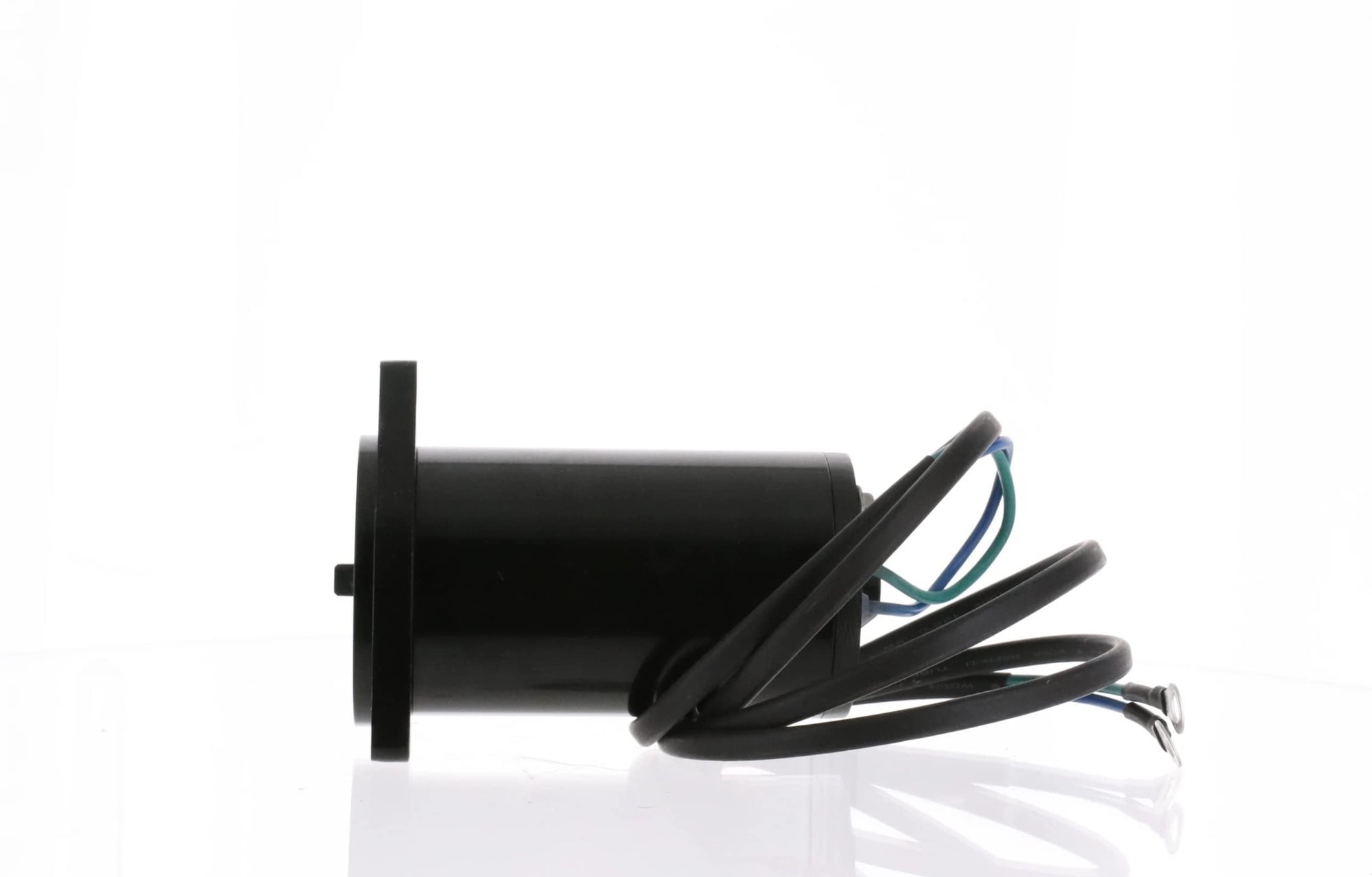

TILT New Motor
ARCO Part #6268 fits: Suzuki ONLY 1991-1997 DT90, 1991-2000 DT100, 1991-2003 DT150, 1991-1992 DT175, 1991-2000 DT200, 1991-2003 DT225.
WILL NOT FIT TOHATSU OR Nissan.
Includes O-ring and adaptor, 2-wire connection, 3-bolt mount, Ring Terminal Ends.
Replaces Part Numbers: SUZUKI Tilt Trim Motor 38100-87D10-0ED, SUZUKI Tilt Trim Motor 38100-87D10-35J, SUZUKI Tilt Trim Motor 38100-87D10-0IT, SUZUKI Tilt Trim Motor 38100-87E20-0ED, SUZUKI Tilt Trim Motor 38100-92E00-0ED, SUZUKI Tilt Trim Motor 38100-92E00-OEP, SIERRA Tilt Trim Motor 18-6786.
THIS PART QUALIFIES FOR AN ADDITIONAL YEAR OF PARTS WARRANTY WHEN REGISTERED.
Epoxy Powder coated for maximum corrosion protection.
Motor shafts induction case hardened at bearing surfaces for superior wear resistance.
All armatures tested to withstand 50 times operation voltage (12V).
All motors performance tested at 5 different load levels.
All motors must meet or exceed OEM performance before being boxed.
Key Features
Specifications
- Length
- 10.0 lb
- Width
- 5.0 lb
- Height
- 4.0 lb
- Weight
- 4.0 lb
- ASIN
- B004QXLJSY
- UPC
- 693006008318
- Ships From
- United States
- Brand
- ARCO Marine
Frequently Asked Questions
About TILT New Motor
01 What part number is associated with this motor?
ARCO Part #6268.
02 Which models does this motor fit?
Fits Suzuki ONLY 1991-1997 DT90, 1991-2000 DT100, 1991-2003 DT150, 1991-1992 DT175, 1991-2000 DT200, 1991-2003 DT225.
03 What is included with the motor?
Includes O-ring and adaptor, 2-wire connection, 3-bolt mount.
04 What is the ASIN for this product?
The ASIN for this product is B004QXLJSY.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 693006008318.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 28.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
