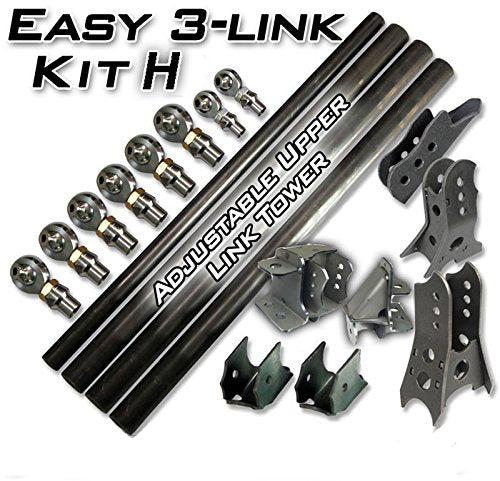

The Easy 3-Link Kit H is the simplest way to complete your links.
Based off the BR1071 Dual 3 Link Bracket and panhard bar, this kit is intended for axles that do not have a front truss.
The strongest and longest lasting heat and cryogenically treated chromo rod ends are on the market.
Featuring machined Wrench Flats, the included tube adapters conform to the outer diameter of the tubing it welds to for adjustments and tightening.
Maximum articulation in the rod end is allowed by the included stainless steel high misalignment spacers.
This kit offers four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your vehicle.
Features: Tubing: Yes Panhard Frame Orientation: Outside Frame Panhard Axle Orientation: Offset Includes: 1 RH, 1 LH - 7/8 inch -14tpi x 3/4 inch bore rod ends for panhard 1 RH, 1 LH - 7/8 inch -14tpi Tube Adapters for panhard 1 RH, 1 LH - 7/8 inch -14tpi Jam nuts for panhard 4 - 3/4 inch-9/16 inch High Misalignment Spacers 6 RH, 6 LH - 1.25 inch -12tpi x 1.0 inch bore rod ends 6 RH, 6 LH - 1.25 inch -12tpi Tube Adapters 6 RH, 6 LH - 1.25 inch -12tpi Jam nuts 12 - 1.0 inch-3/4 inch High Misalignment Spacers 1 - Pair Lower Link Axle Brackets (10 dig) 1 - Adjustable Link tower 1 - Dual 3 Link Bracket 1 - Adjustable Panhard Frame Mount - CHOOSE ORIENTATION 1 - Adjustable Panhard Axle Mount - CHOOSE Centered or Offset 1 - 4 ft 1.5 inch OD .250 inch thick DOM tubing (optional) 3 - 4 ft 2.0 inch OD .250 inch thick DOM tubing (optional) Note: This kit will require drilling of lower link holes to 3/4 inch unless you specify you'd like 9/16 inch bolts for your lower links.
