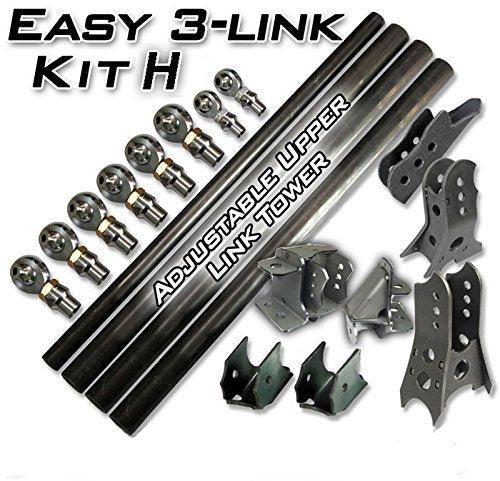

Artec Industries Easy 3 Link Kit H LK0162-GNKQ Adjustable Upper link with Tubing Outside Frame Offset, 1 Pack
Easy 3 Link Kit H includes adjustable upper link with tubing outside frame offset.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Artec Industries Easy 3 Link Kit H LK0162-GNKQ Adjustable Upper link with Tubing Outside Frame Offset, 1 Pack
The Easy 3-Link Kit H is the simplest way to complete your links.
Based off the BR1071 Dual 3 Link Bracket and panhard bar, this kit is intended for axles that do not have a front truss.
The strongest and longest lasting heat and cryogenically treated chromo rod ends are on the market.
Featuring machined Wrench Flats, the included tube adapters conform to the outer diameter of the tubing it welds to for adjustments and tightening.
Maximum articulation in the rod end is allowed by the included stainless steel high misalignment spacers.
This kit offers four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your vehicle.
Features: Tubing: Yes Panhard Frame Orientation: Outside Frame Panhard Axle Orientation: Offset Includes: 1 RH, 1 LH - 7/8 inch -14tpi x 3/4 inch bore rod ends for panhard 1 RH, 1 LH - 7/8 inch -14tpi Tube Adapters for panhard 1 RH, 1 LH - 7/8 inch -14tpi Jam nuts for panhard 4 - 3/4 inch-9/16 inch High Misalignment Spacers 6 RH, 6 LH - 1.25 inch -12tpi x 1.0 inch bore rod ends 6 RH, 6 LH - 1.25 inch -12tpi Tube Adapters 6 RH, 6 LH - 1.25 inch -12tpi Jam nuts 12 - 1.0 inch-3/4 inch High Misalignment Spacers 1 - Pair Lower Link Axle Brackets (10 dig) 1 - Adjustable Link tower 1 - Dual 3 Link Bracket 1 - Adjustable Panhard Frame Mount - CHOOSE ORIENTATION 1 - Adjustable Panhard Axle Mount - CHOOSE Centered or Offset 1 - 4 ft 1.5 inch OD .250 inch thick DOM tubing (optional) 3 - 4 ft 2.0 inch OD .250 inch thick DOM tubing (optional) Note: This kit will require drilling of lower link holes to 3/4 inch unless you specify you'd like 9/16 inch bolts for your lower links.
Key Features
Specifications
- Length
- 48.0 lb
- Width
- 7.0 lb
- Height
- 7.0 lb
- Weight
- 144.2 lb
- ASIN
- B07FMKYDB1
- UPC
- 816791025289
- Ships From
- United States
- Brand
- Artec Industries
Frequently Asked Questions
About Artec Industries Easy 3 Link Kit H LK0162-GNKQ Adjustable Upper link with Tubing Outside Frame Offset, 1 Pack
01 What is included in the Easy 3 Link Kit H?
Includes adjustable upper link with tubing outside frame offset.
02 What is the purpose of the Easy 3 Link Kit H?
The kit is intended for axles without a front truss.
03 What type of rod ends does the kit use?
The kit uses heat and cryogenically treated chromo rod ends.
04 What is the ASIN for this product?
The ASIN for this product is B07FMKYDB1.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 816791025289.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 31.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
