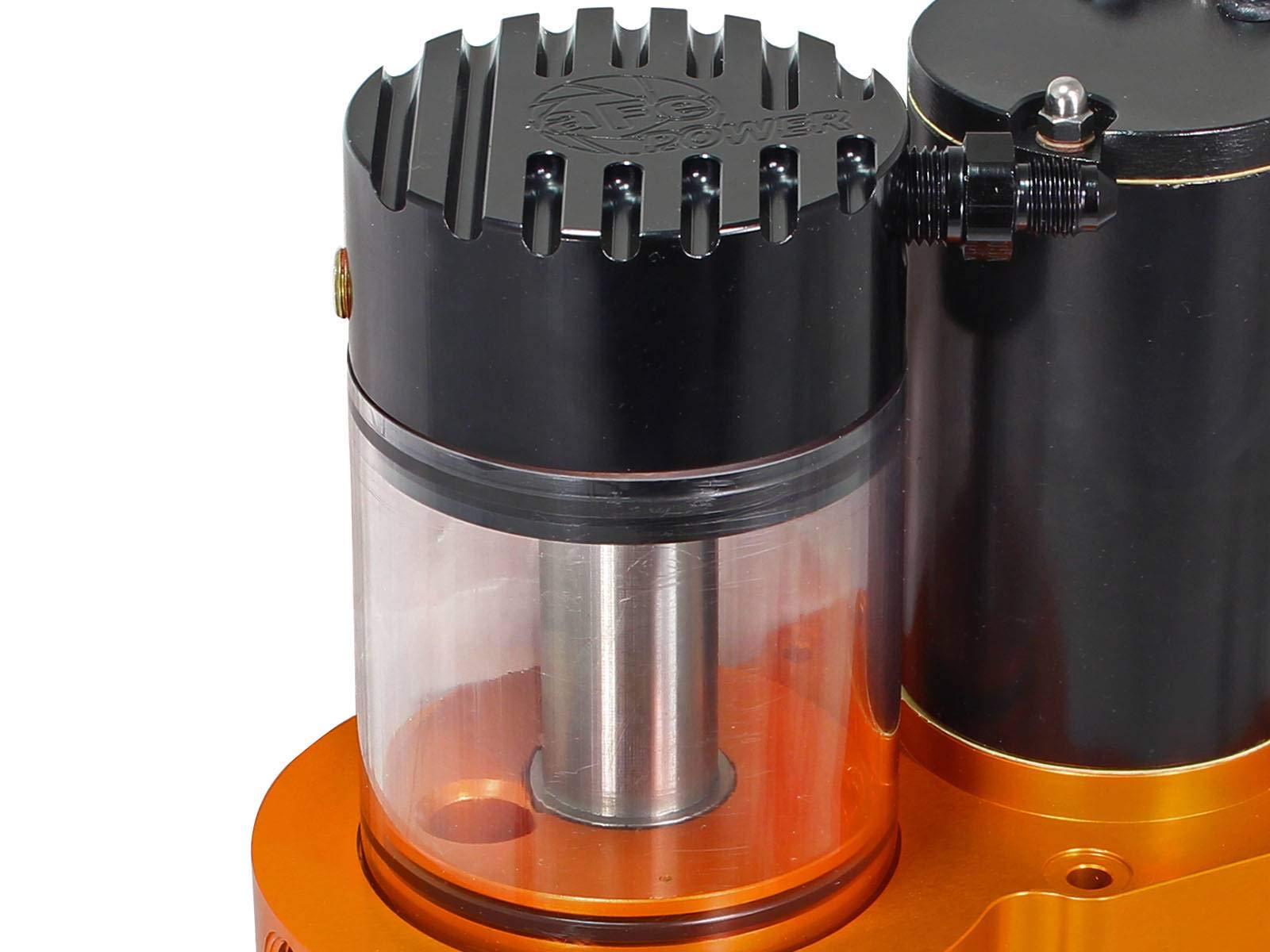

Clear High-Impact Polycarbonate Sight Glass: Allows for visual inspection of fuel.

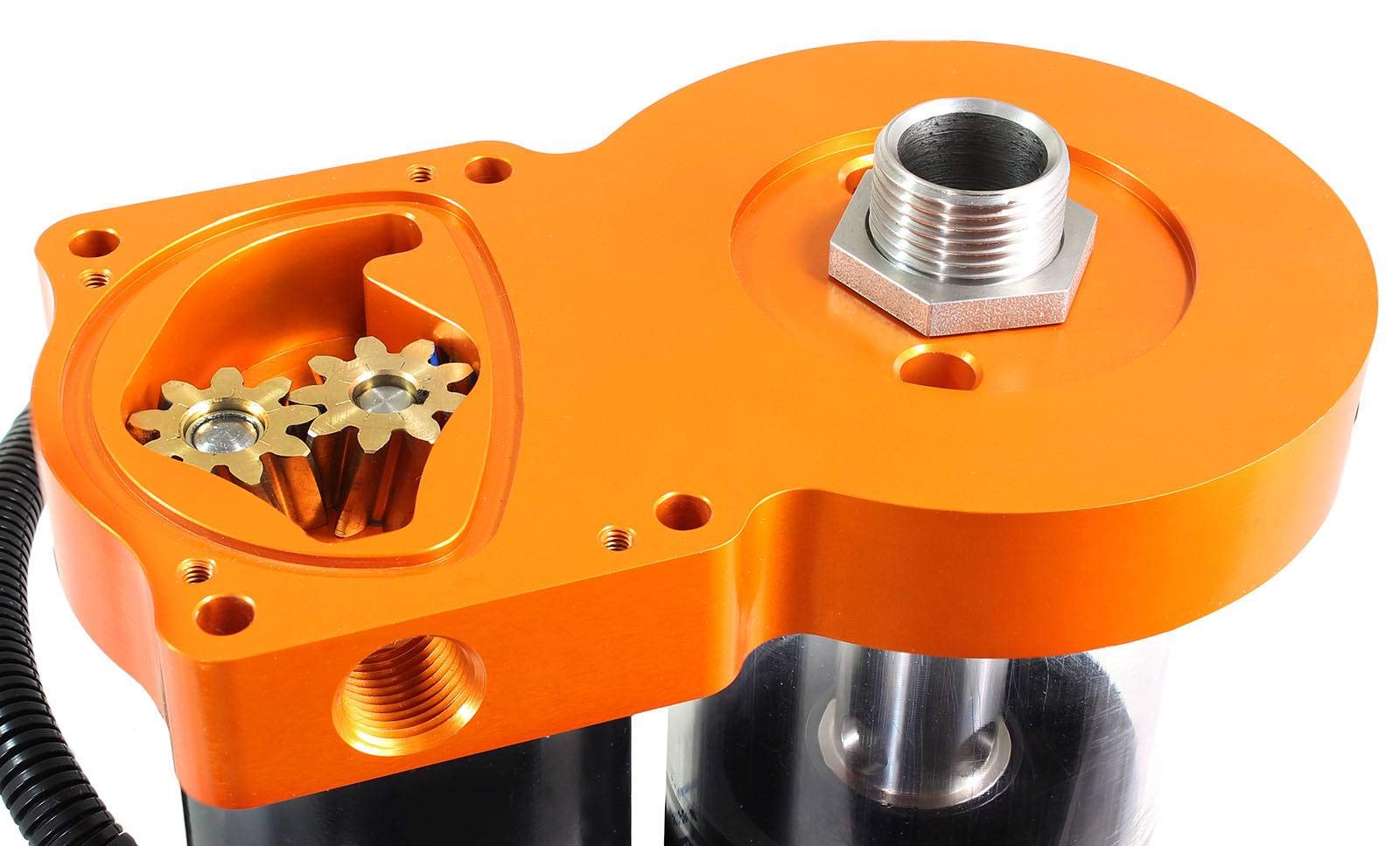

Helical Bronze Spur Gears: Bronze gears are more forgiving of contaminants than steel gears.
The helical spur gear design runs quieter than straight cut gears.
Billet 6061-T6 Aluminum Manifold: Eliminates concerns of porosity with cast aluminum.
"Marine Grade" Motor: Protected against intrusion of dust and powerful water jets.

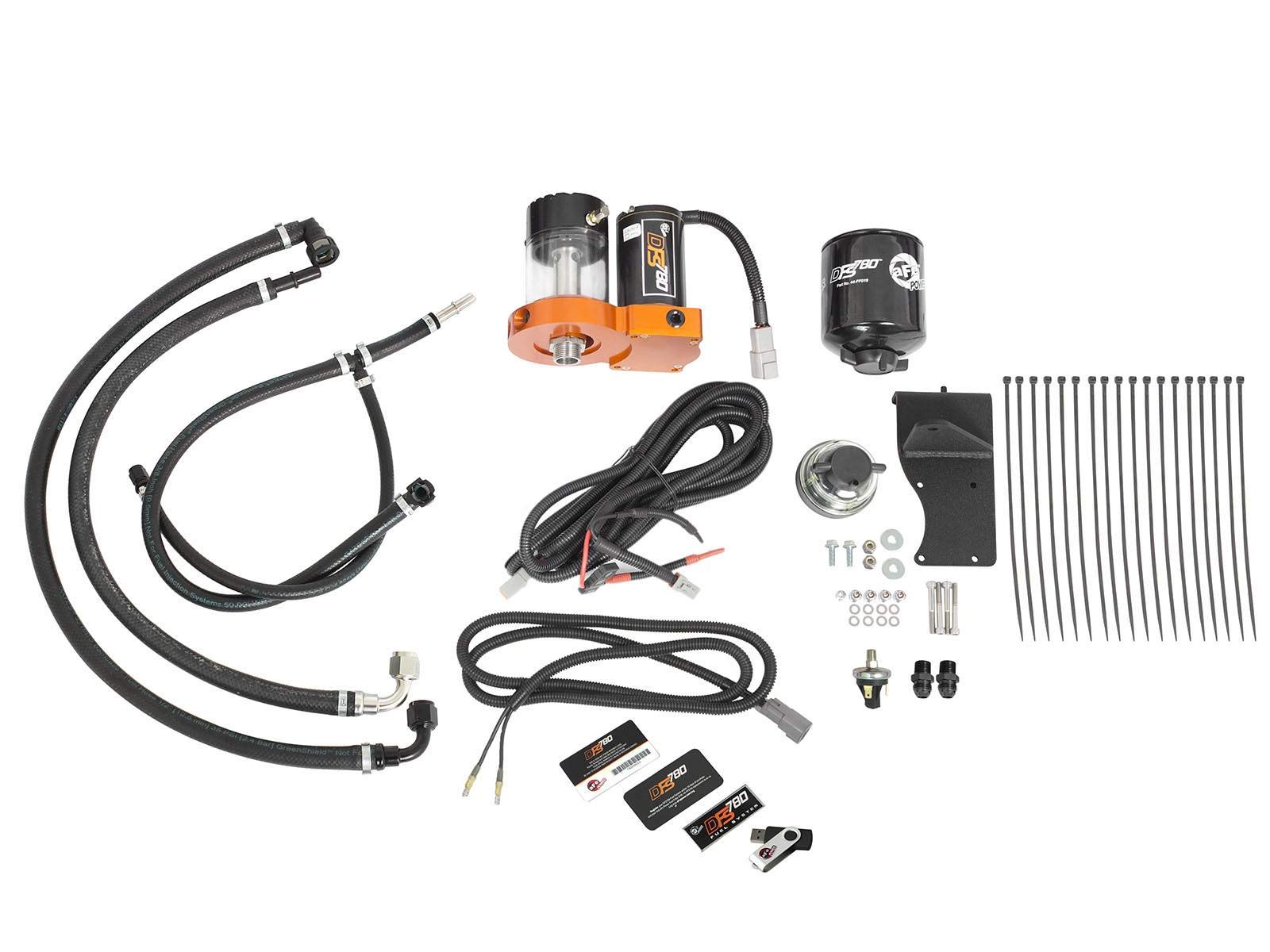

Plug & Play Installation: Supplied harness attaches directly to the battery and utilizes Deutsch weather-proof connectors.

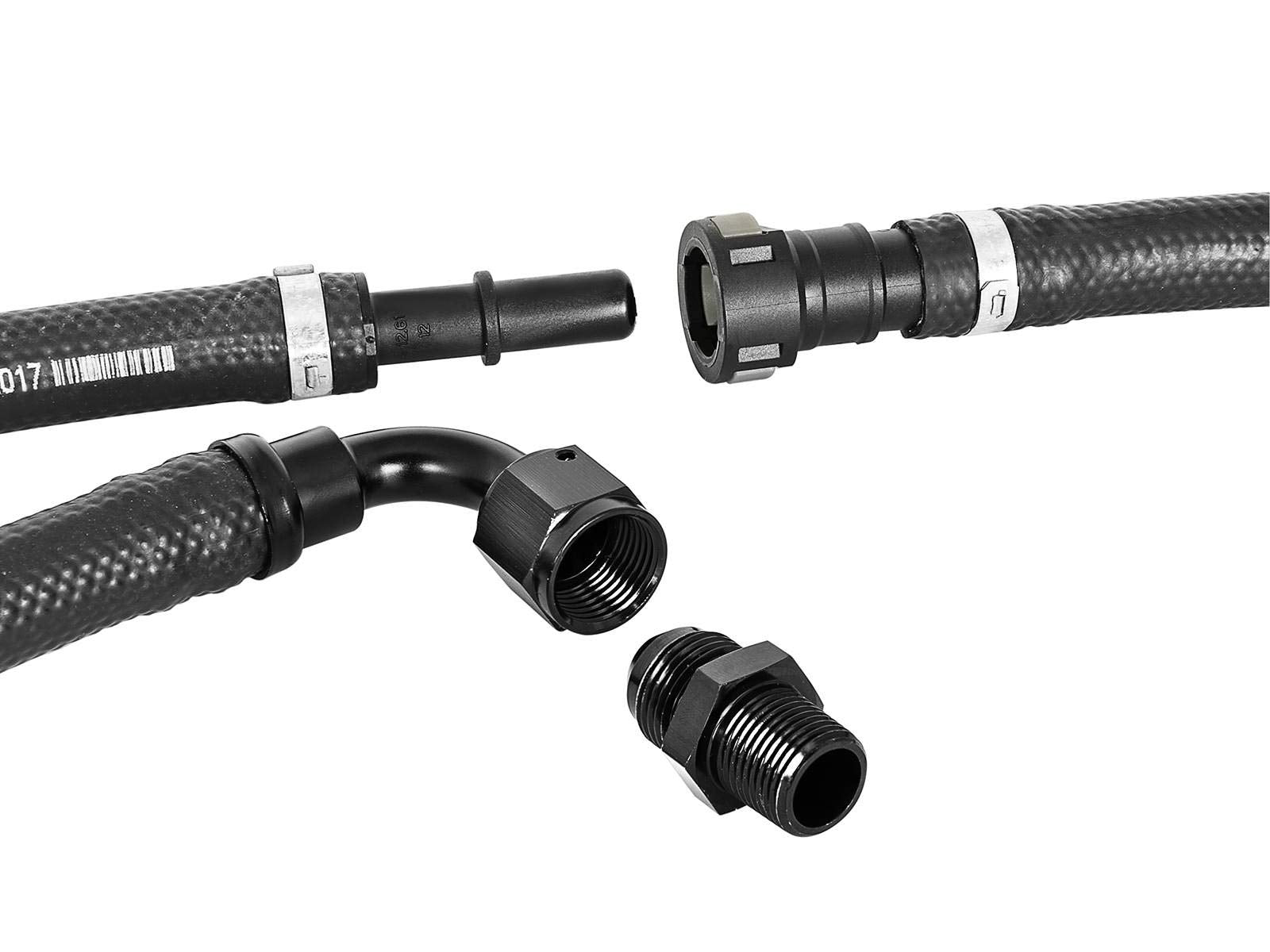

No cutting or modifications of the stock fuel lines are required.
The vehicle can easily be returned to stock.
Boost Activated Pump Engagement: Supplied preset boost switch activates the pump only under load, reducing wear and tear on the DFS780 pump.
PEEK Bearing Wear Surfaces: The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.
Contoured CNC Machining Of Manifold Passages: Enhances flow through the manifold to reduce pressure drop due to flow restrictions.
Direct Bolt-on Steel Mounting Bracket: Heavy duty bracket mounts to the frame and utilizes an existing hole to secure.
Fuel Pressure Gauge Port: 1/8" NPT port allows the customer to attach an external pressure gauge to monitor fuel pressure.
O.E Quality Viton Seals: Compatible with diesel and biodiesel fuels.
Note: This system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicle.
