DFS780 Diesel Fuel System aFe Power 42-14022 (Series)

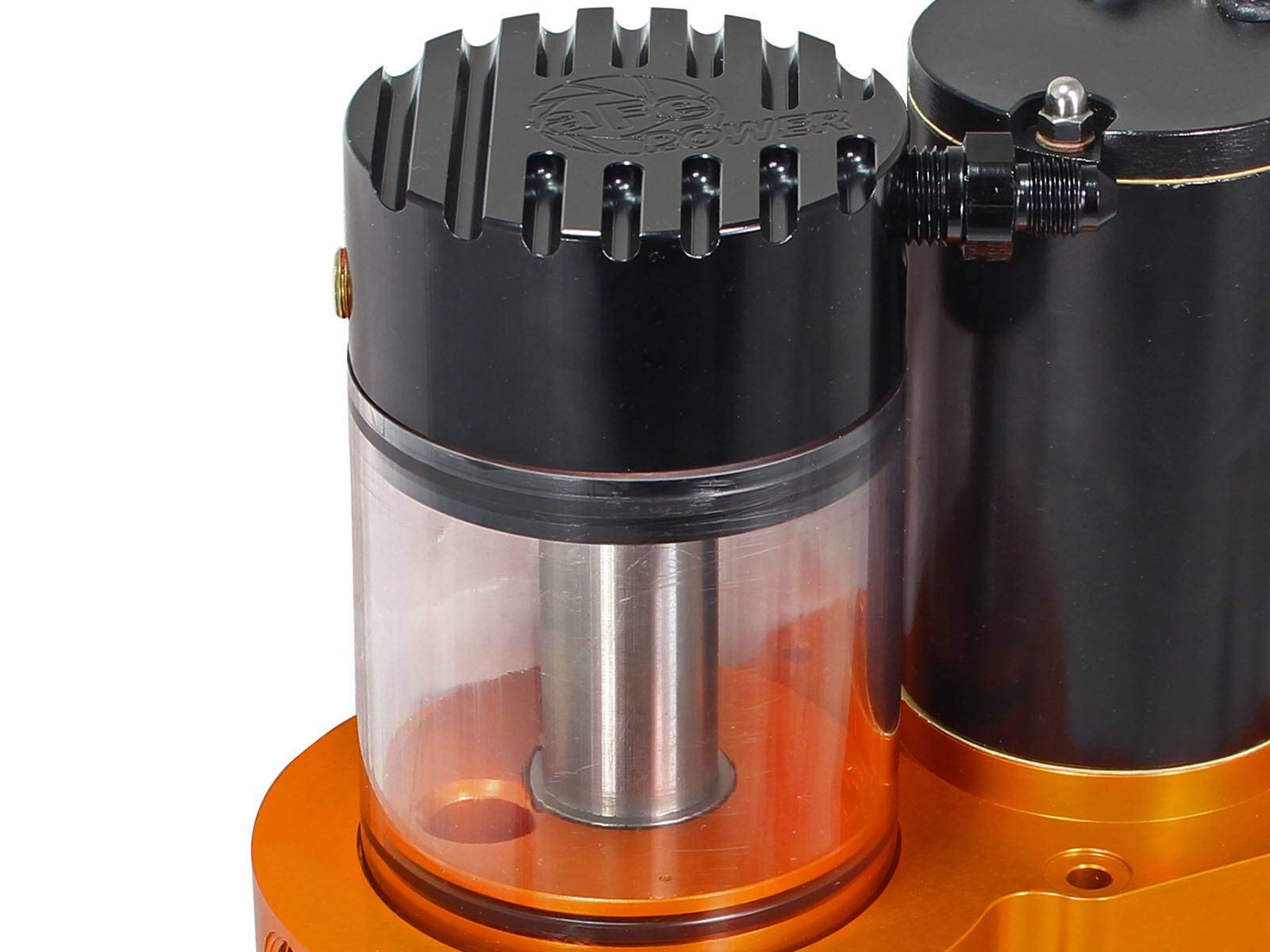

Clear High-Impact Polycarbonate Sight Glass: Allows for visual inspection of fuel.

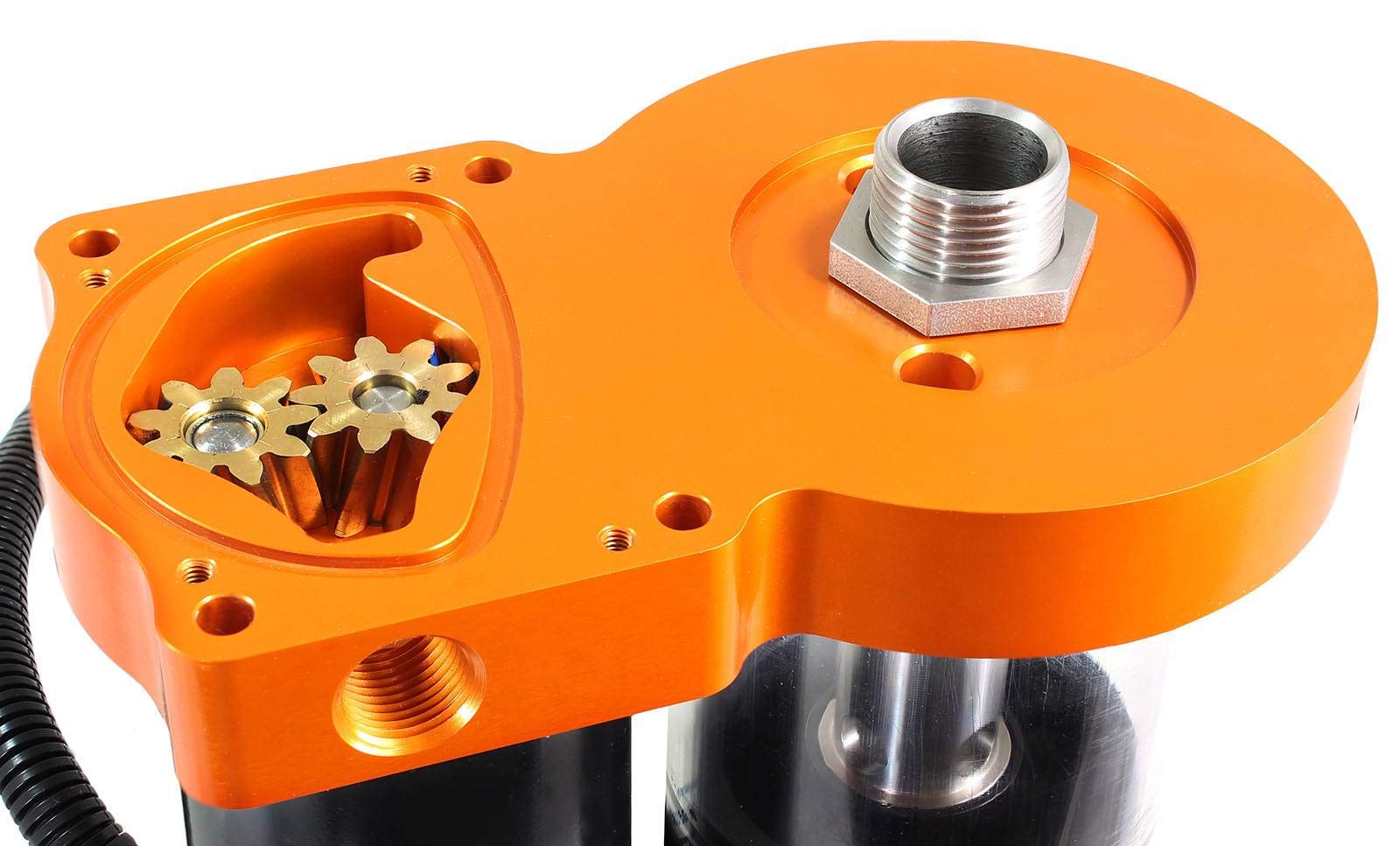

Helical Bronze Spur Gears: Bronze gears are more forgiving of contaminants than steel gears.

The helical spur gear design runs quieter than straight cut gears.

Billet 6061-T6 Aluminum Manifold: Eliminates concerns of porosity with cast aluminum.

"Marine Grade" Motor: Protected against intrusion of dust and powerful water jets.

Plug & Play Installation: Supplied harness attaches directly to the battery and utilizes Deutsch weather-proof connectors.

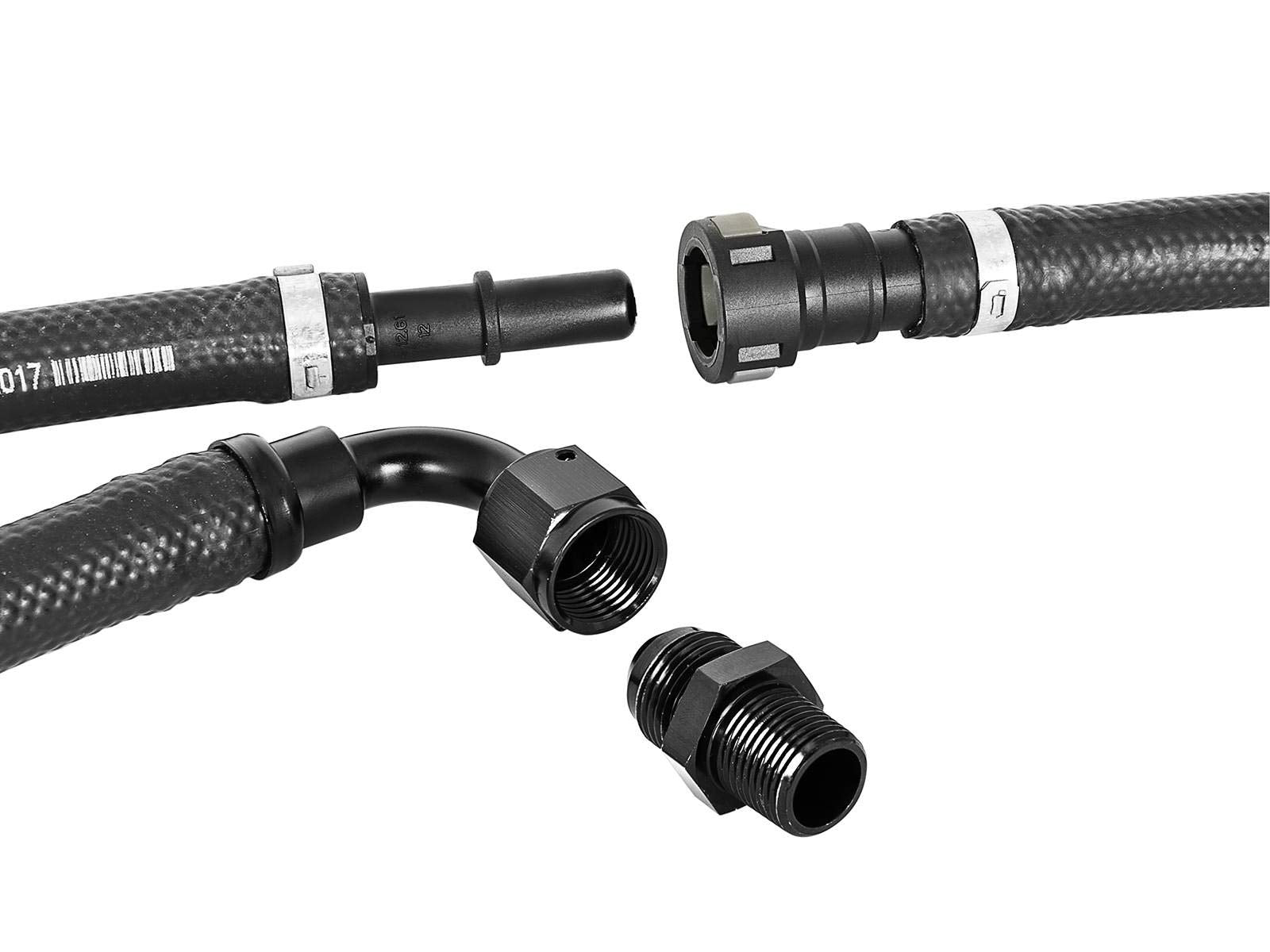

No cutting or modifications of the stock fuel lines are required.

The vehicle can easily be returned to stock.

Boost Activated Pump Engagement: Supplied preset boost switch activates the pump only under load, reducing wear and tear on the DFS780 pump.

PEEK Bearing Wear Surfaces: The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.

Contoured CNC Machining Of Manifold Passages: Enhances flow through the manifold to reduce pressure drop due to flow restrictions.

Direct Bolt-on Steel Mounting Bracket: Heavy duty bracket mounts to the frame and utilizes an existing hole to secure.

Fuel Pressure Gauge Port: 1/8" NPT port allows the customer to attach an external pressure gauge to monitor fuel pressure.

O.E Quality Viton Seals: Compatible with diesel and biodiesel fuels.

Note: This system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicle.
