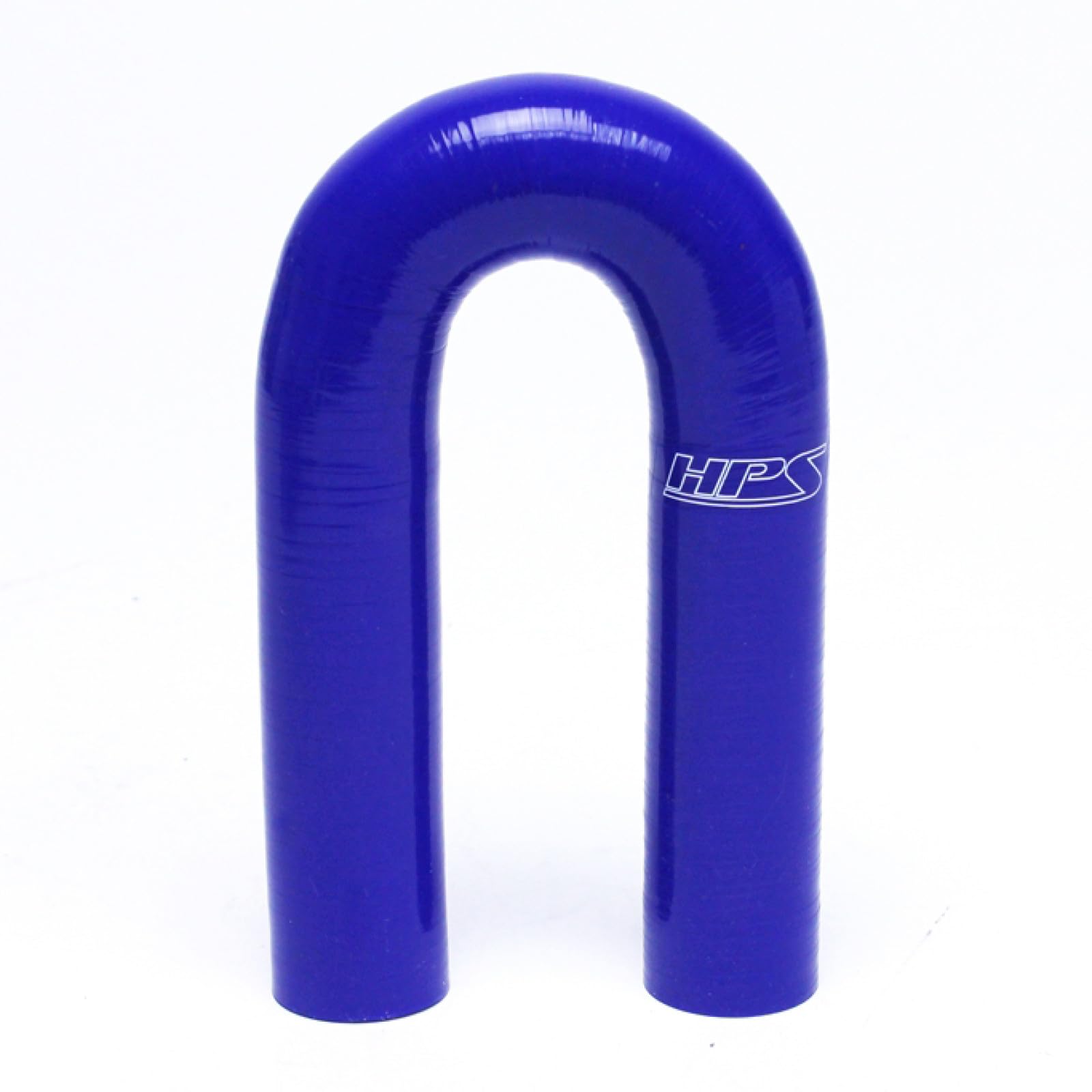

HPS 3/4" (19mm) High Temp 4-ply Reinforced Silicone 180 Degree U Bend Elbow Coupler Hose exceeds and meets SAEJ20 industry standards, ideal for connections under heavy duty pressure and offers excellent resistance for applications at high temperatures.
HPS performance silicone 180 Degree U Bend Elbow Coupler Hose is engineered and designed to meet high performance requirements specified in various industry standards, making it suitable for marine and industrial use, custom turbo or intercooler piping fabrication, and DIY intake or radiator cooling systems.
Technical Specification: Product Type: Silicone 180 Degree U Bend Elbow Coupler Hose.
Temperature Range: -65 deg.
F to +350 deg.
F (177 deg.
C).
Reinforced Layer: 4-ply.
Hose Inside Diameter: 3/4" (19mm).
Hose Outside Diameter: 1.15" (29mm).
Leg Length on each side: 4-1/2".
Center Line Radius: 1-1/8".
Outer Width (W): 3-1/4".
Inside Width (B): 1".
Overall Height: 6-3/4".
Wall Thickness: 4.5mm (+/- 0.5mm).
Color: Blue.
UV and ozone resistant.
Remark: Silicone hose is compatible with water and coolant, but it is NOT compatible with fuel or oil.
