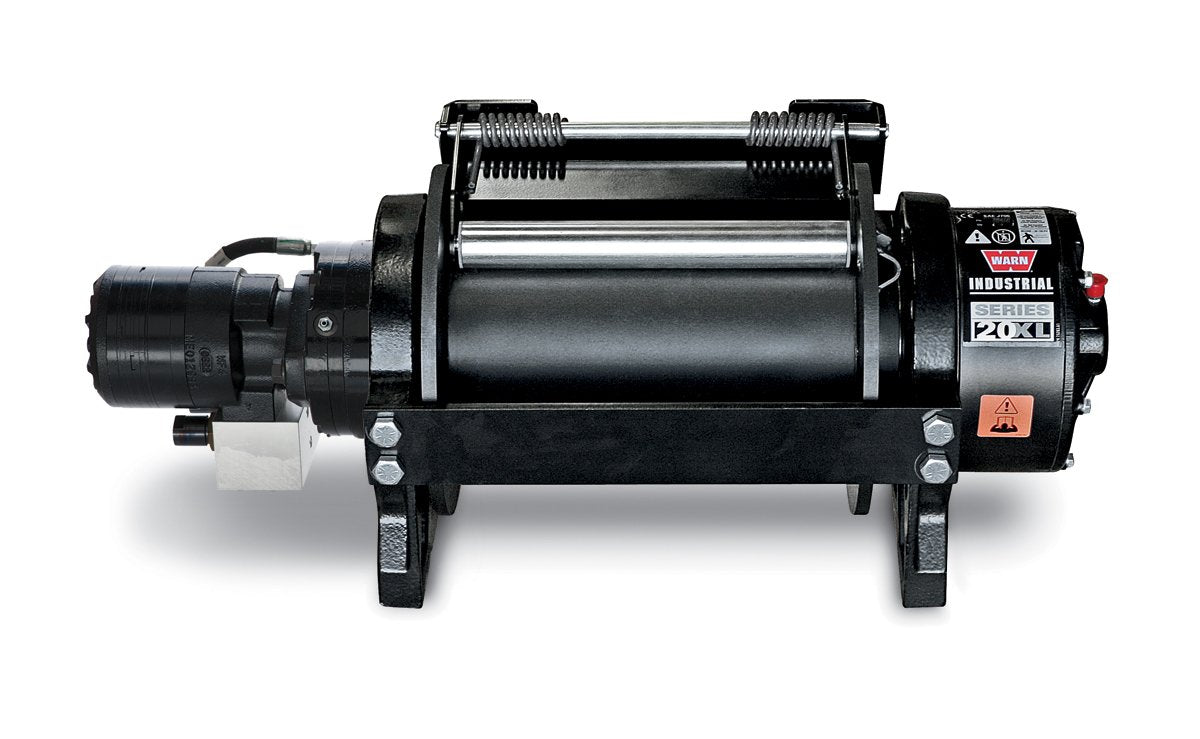

The WARN SERIES 20XL-LP Industrial Hydraulic Winch is suitable for wreckers, trailers, or severe-duty applications.
This winch is designed for use on trailers, rollback trailers, and heavy-duty applications with a pulling capacity of 20,000 lb.
The LP in its name stands for 'Low Pressure,' indicating that this winch utilizes a larger displacement motor to pull the full rated load at only 2200 psi.
The Series 20XL-LP winch is ideal for hydraulic systems operating below 3000 psi.
It includes a high-performance motor with a capacity of 11.9 cubic inches and spring-applied disc brakes designed to hold the full-rated load.
The hardened aircraft-grade nickel chromoly two-stage planetary geartrain ensures speed and reliability.
This model features an air clutch and long drum, meeting SAE J706 and CE specifications.
Rope and other accessories are sold separately and available.
