The TeraFlex JK 3” Lift Suspension System with Four (4) Sport Flex arms, Track Bar, & 9550 VSS Shock Absorbers delivers everything needed to lift your JK to tackle serious trails.
Features include front lower and rear upper Sport flex arms.
Every TeraFlex suspension system is engineered with performance and drivability in mind.
Properly developed suspension geometry, roll center, and load tuning ensure that all factory stability controls remain functional and within the parameters originally engineered into the vehicle by Jeep.
TeraFlex kits drive straight and crawl over anything to get you there and back!

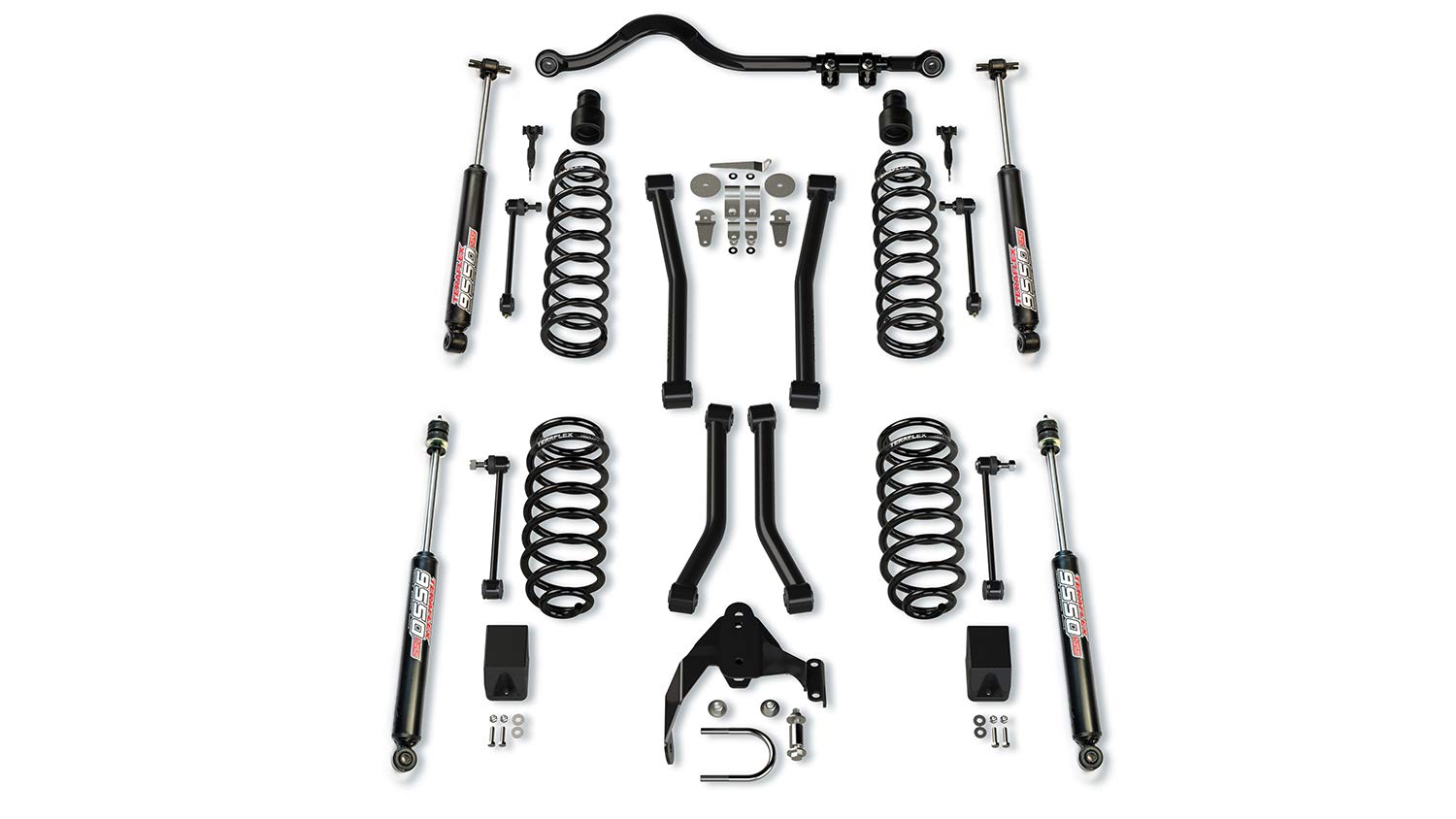

FITS: JK Wrangler (2-door) SPECS: LIFT HEIGHT: 3” MAX TIRE DIAMETER: 35” INCLUDES: 3” lift coil springs, Preset Sport flex arms (front lower, rear upper), HD forged adjustable front track bar, Bump stops, Front sway bar disconnects, Rear track bar bracket, Rear sway bar links, TeraFlex 9550 VSS shocks – set of 4, All necessary hardware, and more.
NOTES: Requires aftermarket wheels with 4.5” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels.
2012-2018 JK/JKU models require Exhaust Spacers (# 2610000) or other exhaust modification for proper driveshaft clearance.
Driveshaft modifications are recommended with this suspension system.
See the TeraFlex Repay High Angle CV Kit (# 1744014).
2007-2011 JK/JKU models will require Extended Length Front Brake Lines (# 4353300).
INSTALL TIME: 8 Hours.
