The TeraFlex JKU 3” Lift Suspension System w/ Four (4) Sport Flex arms & Track Bar delivers everything needed to lift your JKU to tackle serious trails.
It features front lower and rear upper Sport Flex arms.
Every TeraFlex suspension system is engineered with performance and drivability in mind.
Properly developed suspension geometry, roll center, and load tuning ensure that all factory stability controls remain functional and within the parameters originally engineered into the vehicle by Jeep.
TeraFlex kits not only drive straight but will crawl over anything to get you there and back!

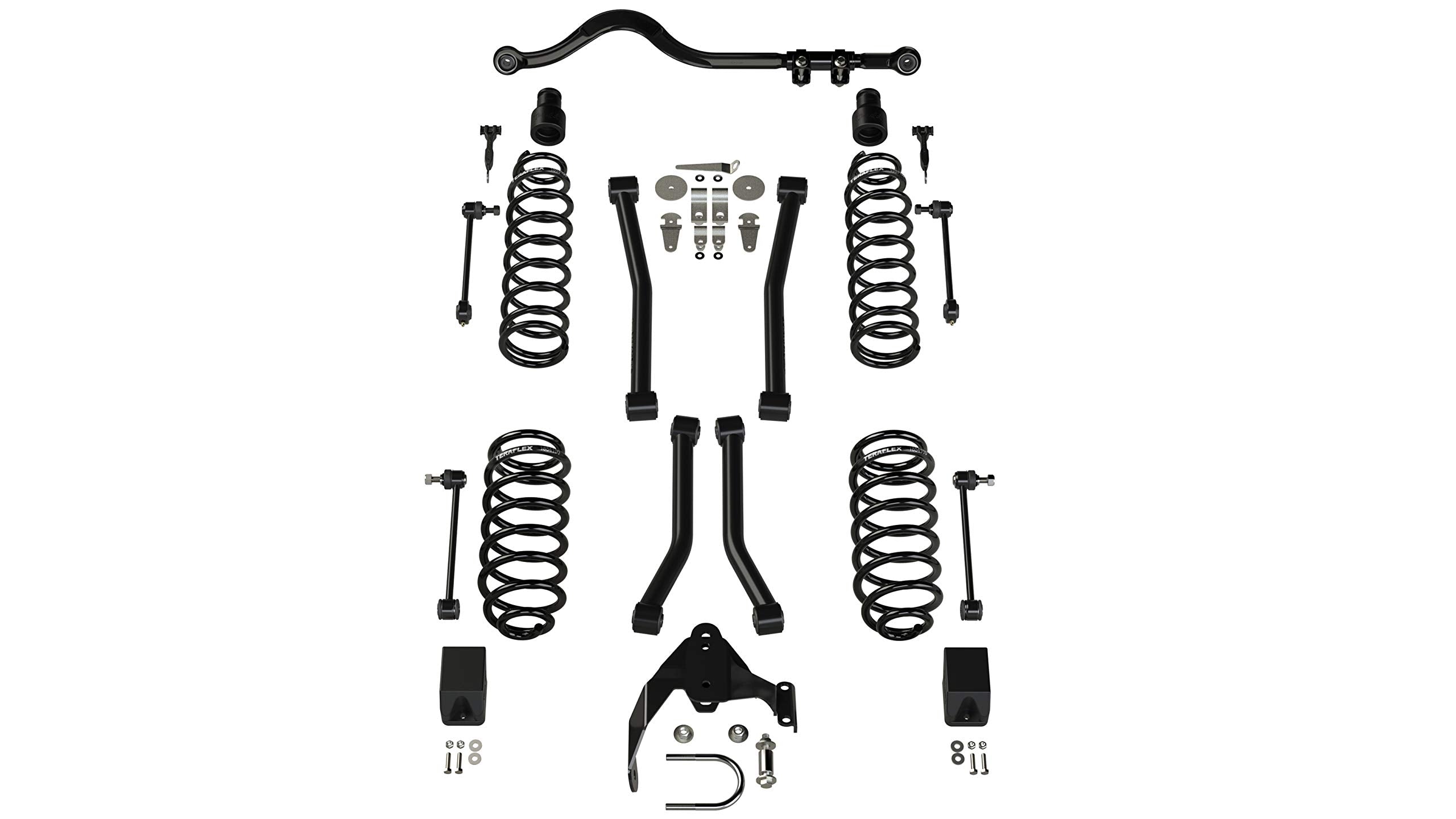

FITS: JKU Wrangler Unlimited (4-door) SPECS: LIFT HEIGHT: 3” MAX TIRE DIAMETER: 35” INCLUDES: 3” lift coil springs, Preset Sport flex arms (front lower, rear upper), HD forged adjustable front track bar, bump stops, front sway bar disconnects, rear track bar bracket, rear sway bar links, all necessary hardware, and more.
NOTES: Requires aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels.
2012-2018 JK/JKU models require Exhaust Spacers (# 2610000) or other exhaust modification for proper driveshaft clearance.
Modifications to the driveshaft are recommended with this suspension system.
See the TeraFlex Rzeppa High Angle CV Kit (# 1744014).
2007-2011 JK/JKU models will require Extended Length Front Brake Lines (# 4353300).
Longer shocks (not included in base kit) – TeraFlex 9550 VSS (# 1545200) or Falcon shock absorbers are recommended.
INSTALL TIME: 8 Hours.
