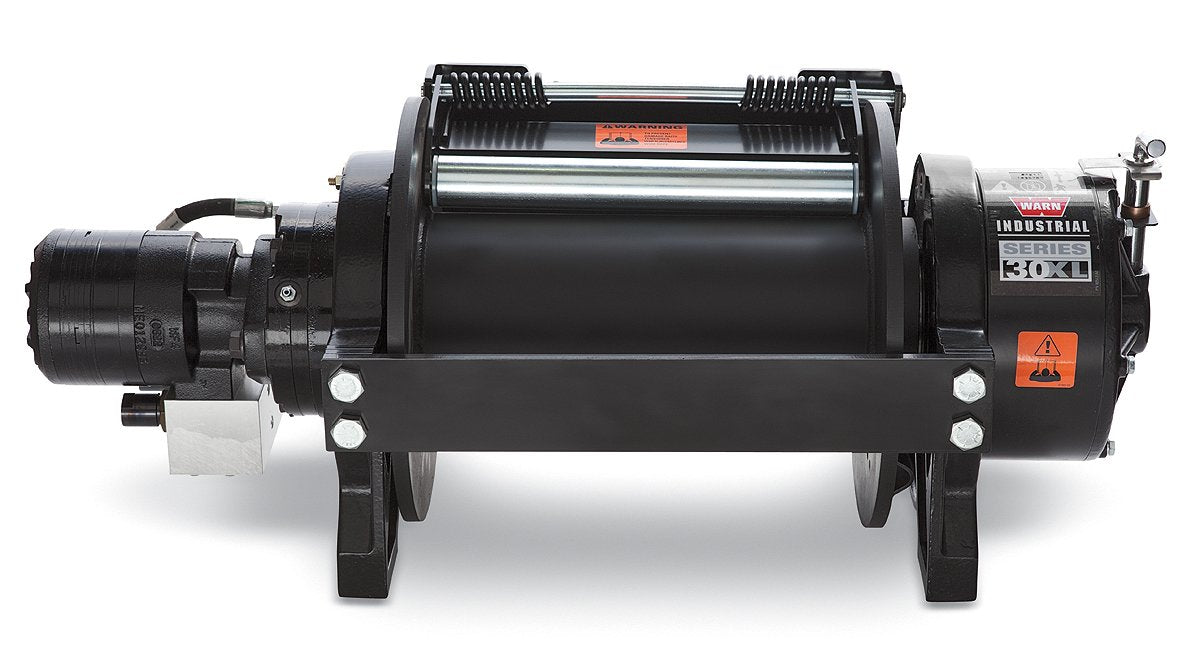

WARN SERIES 30XL-LP industrial hydraulic winch is designed for heavy tow utility and trailer applications.
This winch has a pulling capacity of 30,000 lb.
and is intended for use on rollback trailers, trailers, and heavy-duty applications.
LP stands for 'Low Pressure' and indicates this winch utilizes a larger displacement motor to pull the full rated load at only 2320 psi.
The Series 30XL-LP winch is ideal for hydraulic systems operating below 3000 psi.
It includes a high-performance motor of 14.9 cubic inches and spring-applied disc brakes designed to handle a full-rated load.
The hardened aircraft-grade nickel chromoly two-stage planetary geartrain provides speed and reliability.
This model features a long drum and manual clutch.
It meets CE and SAE J706 specifications.
Rope and other accessories are sold separately.
With a capacity of 30,000 lb., this winch is suitable for severe duty applications, wreckers, or trailers.
