396-1 Shakespeare 5-Foot 50 Watts 3dB Gain VHF Antenna with 15' RG58 Coax Cable and Pl259 Connector, Designed to Reduce Signal Fading in Rough Seas Using Brass and Copper Elements

More about this item : 396-1 Shakespeare 5-Foot 50 Watts 3dB Gain VHF Antenna with 15' RG58 Coax Cable and Pl259 Connector, Designed to Reduce Signal Fading in Rough Seas Using Brass and Copper Elements

Style 396-1 VHF 3dB Center-fed 1/2-wave coaxial sleeve.

This basic 3dB antenna is designed to reduce signal fading in rough seas.

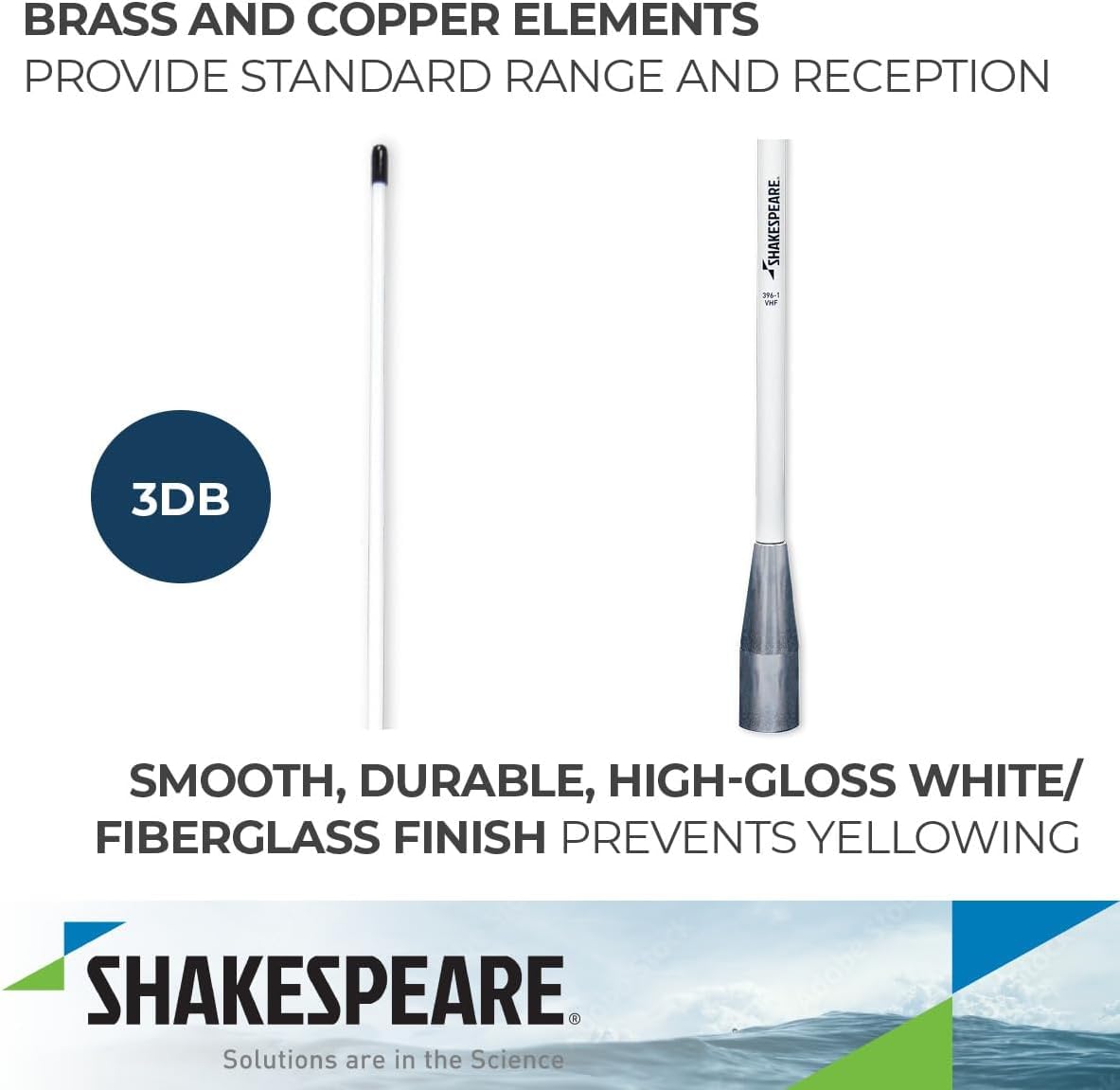

Probably the most widely used antenna on Coast Guard vessels, it features brass and copper elements.

Chrome-plated brass ferrule with standard 1&qout;-14 thread.

Includes 15' RG-58 cable and a PL-259 connector.

Suggested mount: Style 4187 Ratchet Mount.

Technical Specifications: Frequency: VHF Marine band.

Bandwidth: (within 2.0:1 SWR): 5 MHz.

SWR: 1.5:1 at 156.8 MHz.

Impedance (Ohms): 50.

Gain: 3 dB.

Max Input (Watts): 50.

DC Ground: NO.

Termination: 15' RG-58 cable.

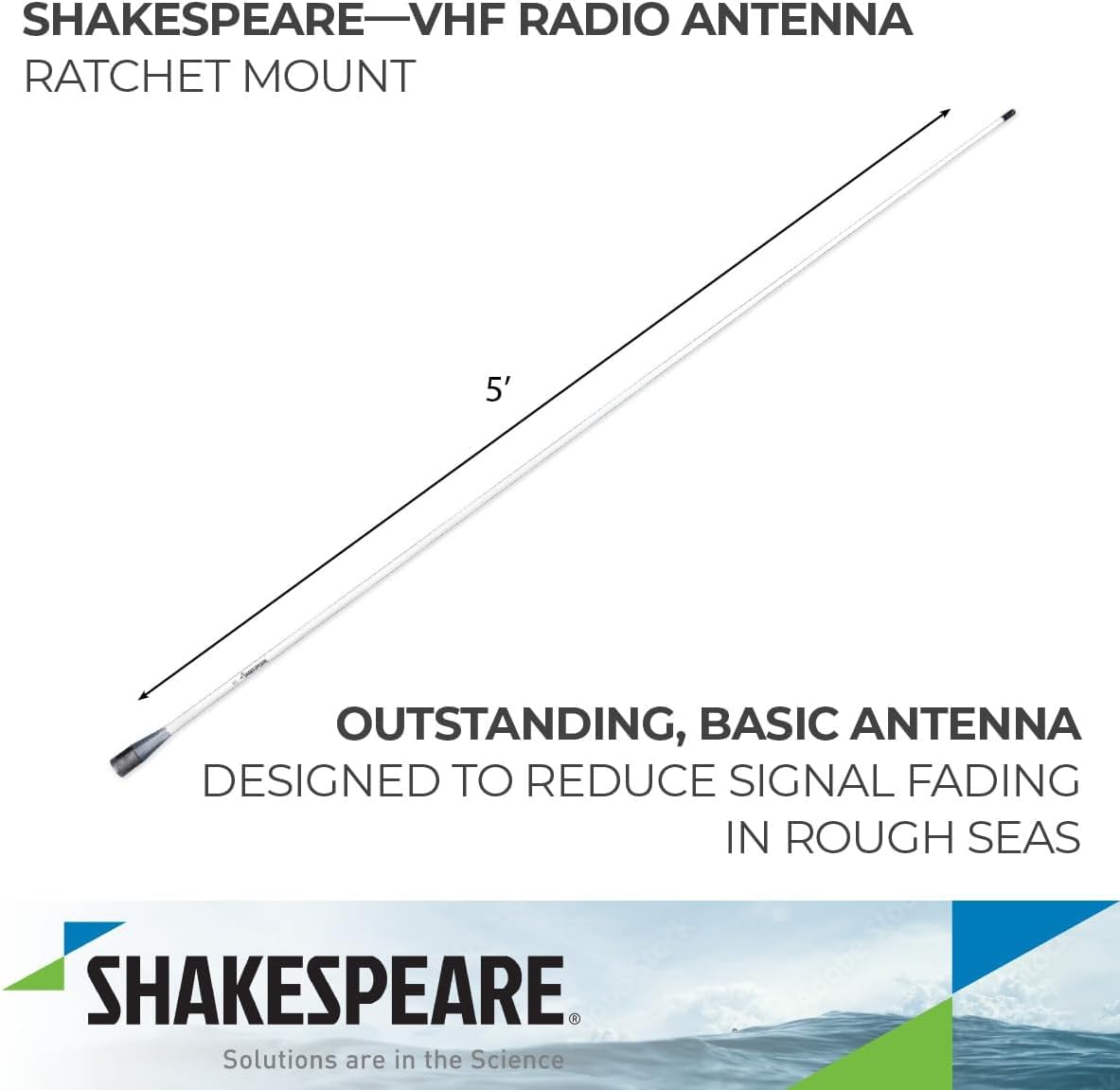

Height (feet): 5.

Polarization: Vertical.

Radiation pattern: Omni-directional.

Specifications: Antenna Band: VHF.

Cable Length (Feet): 15'.

Cable Type: RG-58.

Color: White.

Construction: Fiberglass.

DB Gain (dB): 3 dB.

Ferrule Type: Chrome Plated.

Length (Inches): 5'.

Box Dimensions: 3"H x 3"W x 63"L.

WT: 2.9 lbs.

UPC: 719441100018.

Quick Guide (pdf).
