590530L-1 Manley in our Pistons Department

$130.60 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Manley

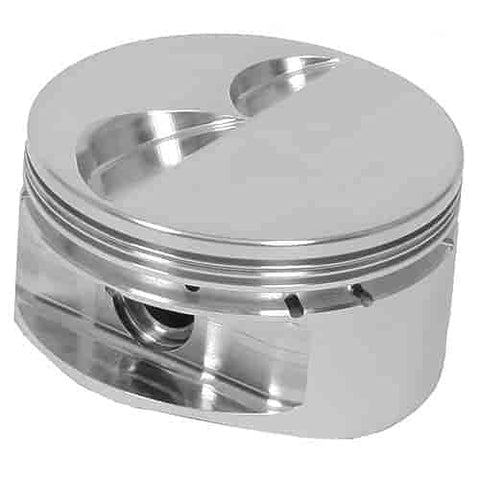

Manley 590530L-1 is a piston in the Pistons Department.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

590530L-1 Manley in our Pistons Department
590530L-1 Manley in our Pistons Department
View Detail
Type
Forged
Title
590530L-1 Manley in our Pistons Department
Price
$130.60 USD
Vendor
Manley
Description
4 Barrel Class Piston SB-Chevy Flat Top -4.0cc 4.030'' Bore (+.030'') 5.700'' Rod Length with 3.480-3.500'' Stroke 1.550'' Comp.Height 1/16'', 1/16'', 3/16'' Ring Grooves Left Side, 1/pkg.Technical Specs: Compression Height: 1.550'' Piston & Pin Weight: 553 grams Flat Top: -4.0cc valve reliefs Pin Size: 0.927'' dia, 2.300'' long, .130'' wall Round Wire Locks: .061'' Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom Piston Clearance: .005'' measured 1.100'' from bottom of the oil ring Valve Notches: .300'' Intake, .190'' Exhaust

More about this item : 590530L-1 Manley in our Pistons Department

4 Barrel Class Piston SB-Chevy Flat Top -4.0cc 4.030'' Bore (+.030'') 5.700'' Rod Length with 3.480-3.500'' Stroke 1.550'' Comp.

Height 1/16'', 1/16'', 3/16'' Ring Grooves Left Side, 1/pkg.

Technical Specs: Compression Height: 1.550'' Piston & Pin Weight: 553 grams Flat Top: -4.0cc valve reliefs Pin Size: 0.927'' dia, 2.300'' long, .130'' wall Round Wire Locks: .061'' Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom Piston Clearance: .005'' measured 1.100'' from bottom of the oil ring Valve Notches: .300'' Intake, .190'' Exhaust

590530L-1 Manley in our Pistons Department
Key Features
  • 4 Barrel Class Piston SB-Chevy
  • Flat Top -4.0cc valve reliefs
  • Piston & Pin Weight: 553 grams
  • Pin Size: 0.927'' dia, 2.300'' long, .130'' wall
  • Compression Height: 1.550''
  • Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom
Technical Specifications
  • Length : 7.75 lb
  • Width : 5.5 lb
  • Height : 4.25 lb
  • Weight : 1.25 lb
Product Identifiers
  • ASIN B07DB7Z4V1
  • UPC: 807298025599
Shipping Information
  • Ships From : United States
  • Brand : Manley

Frequently Asked Questions About : 590530L-1 Manley in our Pistons Department

01 What is the compression height?

Compression Height: 1.550''

02 What is the piston and pin weight?

Piston & Pin Weight: 553 grams

03 What is the pin size?

Pin Size: 0.927'' dia, 2.300'' long, .130'' wall
