Brand: Manley

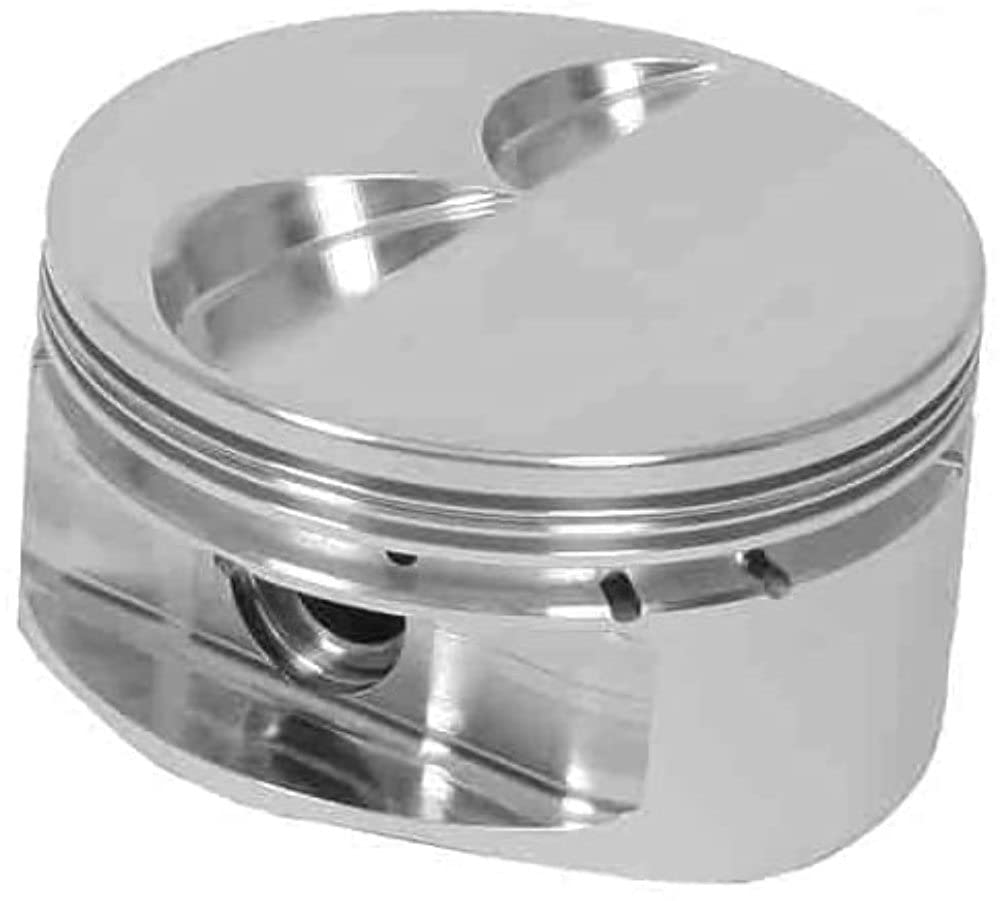

591130L-1 Manley in our Pistons Department
Manley 591130L-1 is a piston in the Pistons Department.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
591130L-1 Manley in our Pistons Department
2 Barrel Class Pistons SB-Chevy Flat Top -2.5cc 4.030'' Bore (+.030'') 6.000'' Rod Length with 3.480-3.500'' Stroke 1.250'' Comp.
Height.
.043'', .043'', 3mm Ring Grooves Left Side, 1/pkg.
Technical Specs: Compression Height: 1.250'' Piston & Pin Weight: 472 grams Flat Top: -2.5cc valve reliefs Pin Size: 0.927'' dia, 2.300'' long, .095'' wall Round Wire Locks: .061'' Ring Grooves: Gas Ported .043'' Top; .043'' Middle; 3mm Bottom Piston Clearance: .005'' measured 1.100'' from bottom of the oil ring Valve Notches: .210'' Intake, .150'' Exhaust
Key Features
Specifications
- Length
- 7.75 lb
- Width
- 5.5 lb
- Height
- 4.25 lb
- Weight
- 1.25 lb
- ASIN
- B07DB6WJTN
- UPC
- 807298025995
- Ships From
- United States
- Brand
- Manley
Frequently Asked Questions
About 591130L-1 Manley in our Pistons Department
01 What is the compression height?
Compression Height: 1.250''
02 What is the piston and pin weight?
Piston & Pin Weight: 472 grams
03 What is the pin size?
Pin Size: 0.927'' dia, 2.300'' long, .095'' wall
04 What is the ASIN for this product?
The ASIN for this product is B07DB6WJTN.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 807298025995.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 30.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
