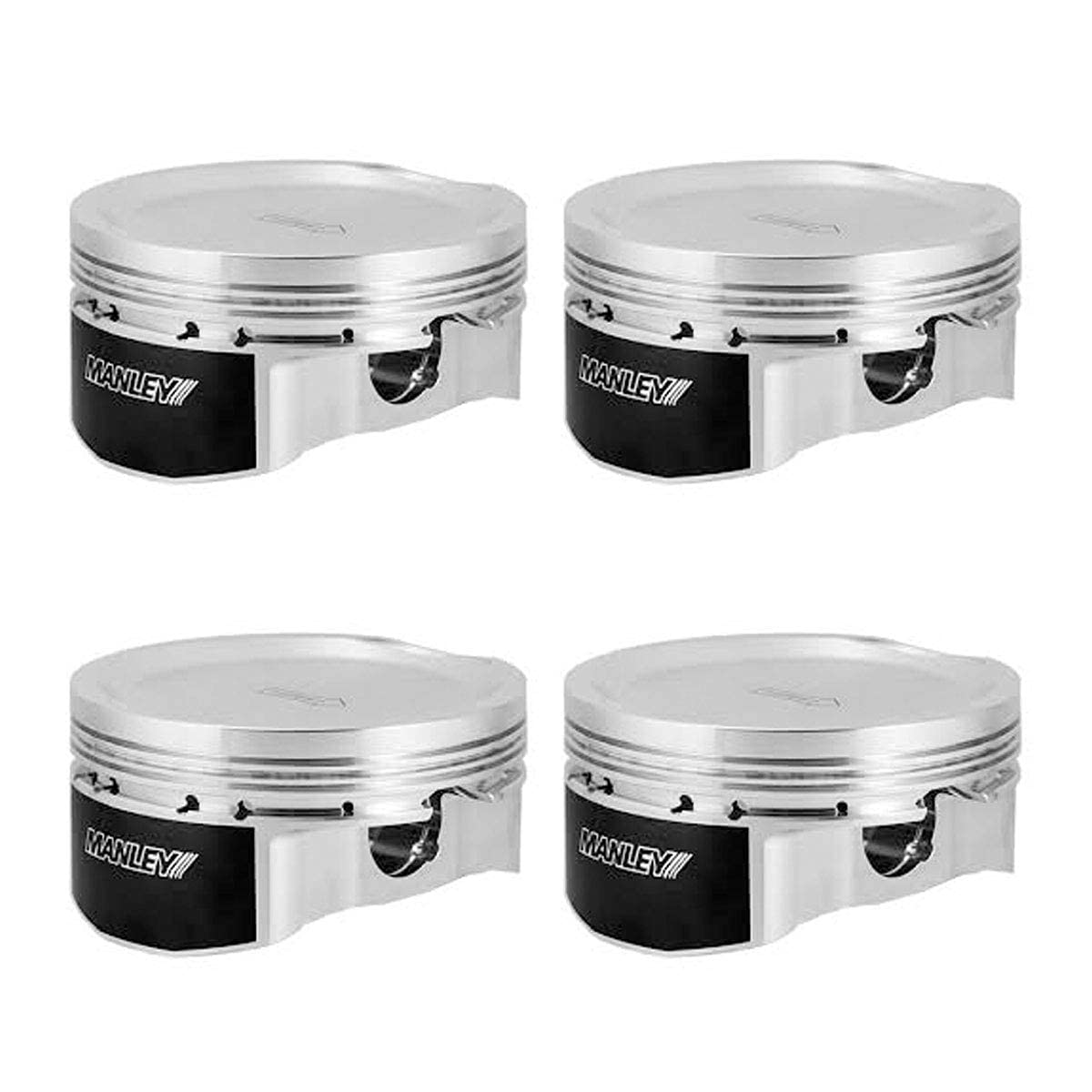

Pistons from Manley are machined from high strength 2618 material.
Each design is lightweight yet robust enough to deliver long service life.
The perfect ring groove to skirt squareness is achieved through our unique manufacturing method of 'one fixturing' that assures maximum horsepower.
Included with every set at no additional charge are round wire locks, tool steel wrist pins, and rings.
Forging 2618 alloy ensures maximum high temperature strength and fatigue resistance.
Attributes 'Contour forgings' provide the optimum balance between strength and weight with no grain-interrupting internal milling.
Our proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
Value-added features such as a pressure balance groove are included in all series.
Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.
Manley Sport Compact Platinum series pistons come complete with pistons, rings, pins, and locks.
