696000-1 Manley

$142.18 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Manley

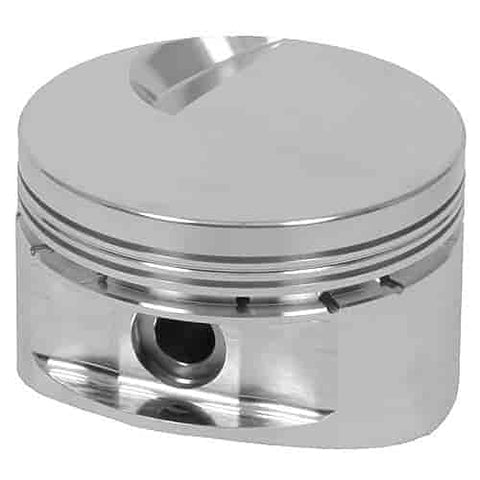

Manley 696000-1 is a BB-Chevy Flat Top Piston.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

696000-1 Manley
696000-1 Manley
View Detail
Type
Forged
Title
696000-1 Manley
Price
$142.18 USD
Vendor
Manley
Description
BB-Chevy Flat Top Piston with 4.500'' Bore, 509ci - 6.135'' Rod w/4.000'' Stroke (Std Deck) and 509ci - 6.535'' Rod w/4.000'' Stroke (Tall Deck).It has a 1.645'' Comp.Height and comes 1/pkg.Technical Specs include Compression Ratio: 9.0:1 (112cc); 8.7:1 (118cc); 8.4:1 (124cc), Compression Height: 1.645'', and Piston Weight: 713 grams.The Flat Top features -3.0cc valve relief, Pin Size of 0.990'' dia, 2.930'' long, .180'' wall (170 grams), and Spiral Locks of .042'' wide (4 per piston).Ring Grooves are 1/16'' Top; 1/16'' Middle; 3/16'' Bottom.Piston Clearance is .006'' measured 1.100'' from the bottom of the oil ring, and Valve Notch is .300'' Intake.

More about this item : 696000-1 Manley

BB-Chevy Flat Top Piston with 4.500'' Bore, 509ci - 6.135'' Rod w/4.000'' Stroke (Std Deck) and 509ci - 6.535'' Rod w/4.000'' Stroke (Tall Deck).

It has a 1.645'' Comp.

Height and comes 1/pkg.

Technical Specs include Compression Ratio: 9.0:1 (112cc); 8.7:1 (118cc); 8.4:1 (124cc), Compression Height: 1.645'', and Piston Weight: 713 grams.

The Flat Top features -3.0cc valve relief, Pin Size of 0.990'' dia, 2.930'' long, .180'' wall (170 grams), and Spiral Locks of .042'' wide (4 per piston).

Ring Grooves are 1/16'' Top; 1/16'' Middle; 3/16'' Bottom.

Piston Clearance is .006'' measured 1.100'' from the bottom of the oil ring, and Valve Notch is .300'' Intake.

696000-1 Manley
Key Features
  • BB-Chevy Flat Top Piston with 4.500'' Bore
  • Compression Ratio: 9.0:1 (112cc); 8.7:1 (118cc); 8.4:1 (124cc)
  • Piston Weight: 713 grams
  • 1/pkg
  • Comp. Height: 1.645''
  • Pin Size: 0.990'' dia, 2.930'' long, .180'' wall
Technical Specifications
  • Length : 7.75 lb
  • Width : 5.5 lb
  • Height : 4.25 lb
  • Weight : 1.25 lb
Product Identifiers
  • ASIN B00AZ6HOOE
  • UPC: 807298028323
Shipping Information
  • Ships From : United States
  • Brand : Manley

Frequently Asked Questions About : 696000-1 Manley

01 What is the bore size of the Manley 696000-1?

The bore size is 4.500''.

02 What is the compression height of the piston?

The compression height is 1.645''.

03 How much does the piston weigh?

The piston weight is 713 grams.
