Brand: Manley
696630-1 Manley

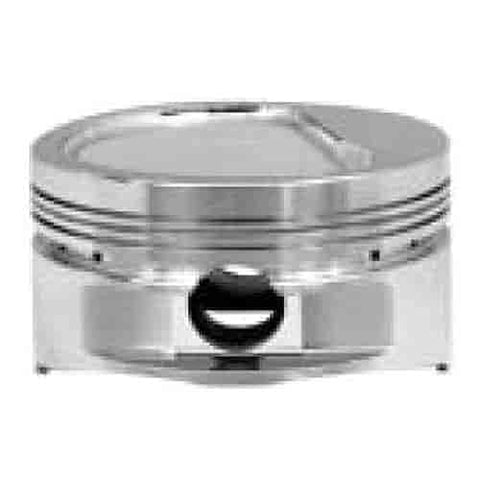

Manley 696630-1 is a BB-Chevy Inverted Dome Piston.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
696630-1 Manley
BB-Chevy Inverted Dome Piston 4.530'' Bore (+.030'') - 20cc Dome Volume 548ci - 6.135'' Rod w/4.250'' Stroke (Std Deck) 548ci - 6.535'' Rod w/4.250'' Stroke (Tall Deck) 1.520'' Comp.
Height 1/pkg.
Technical Specs: Compression Ratio: 8.7:1 (112cc); 8.4:1 (118cc); 8.1:1 (124cc) Compression Height: 1.520'' Piston Weight: 700 grams Inverted Dome Top: -20cc Pin Size: 0.990'' dia, 2.930'' long, .180'' wall (170 grams) Spiral Locks: .042'' wide (4 per piston) Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom Piston Clearance: .006'' measured 1.100'' from bottom of the oil ring Valve Notch: .300'' Intake Exhaust Valve: +.090''
Key Features
Specifications
- Length
- 7.75 lb
- Width
- 5.5 lb
- Height
- 4.25 lb
- Weight
- 1.25 lb
- ASIN
- B00AZ6IO7A
- UPC
- 807298028811
- Ships From
- United States
- Brand
- Manley
Frequently Asked Questions
About 696630-1 Manley
01 What is the bore size of the Manley 696630-1?
The bore size is 4.530'' (+.030'').
02 What is the dome volume of the piston?
The dome volume is 20cc.
03 What is the compression height of the piston?
The compression height is 1.520''.
04 What is the ASIN for this product?
The ASIN for this product is B00AZ6IO7A.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 807298028811.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 29.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
