Brand: Manley
696700-1 Manley

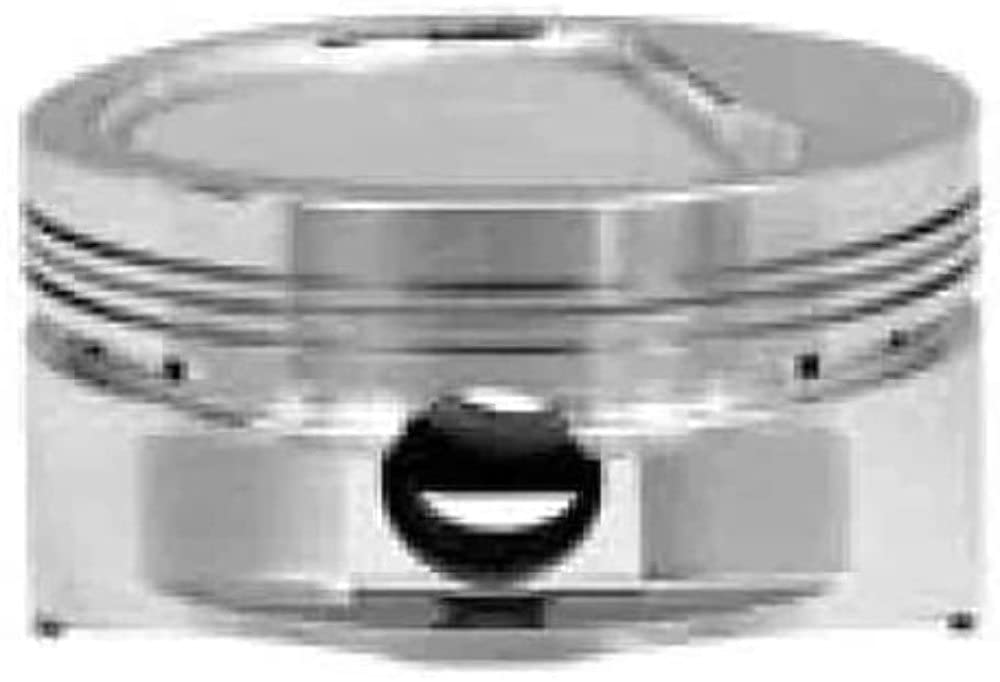

Manley 696700-1 is a BB-Chevy Inverted Dome Piston.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
696700-1 Manley
BB-Chevy Inverted Dome Piston 4.500'' Bore - 20cc Dome Volume 541ci - 6.385'' Rod w/4.250'' Stroke (Std Deck) 604ci - 6.535'' Rod w/4.750'' Stroke (Tall Deck) 1.270'' Comp.
Height 1/pkg.
Technical Specs: Compression Ratio (4.500'' Bore x 4.250'' Stroke): 8.6:1 (112cc); 8.3:1 (118cc); 8.0:1 (124cc) Compression Ratio (4.500'' Bore x 4.750'' Stroke): 9.5:1 (112cc); 9.1:1 (118cc); 8.8:1 (124cc) Compression Height: 1.270'' Piston Weight: 621 grams Inverted Dome Top: -20cc Pin Size: 0.990'' dia, 2.930'' long, .180'' wall (170 grams) Spiral Locks: .042'' wide (4 per piston) Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom Piston Clearance: .006'' measured 1.100'' from bottom of the oil ring Valve Notch: .300'' Intake Exhaust Valve: +.090''
Key Features
Specifications
- Length
- 7.75 lb
- Width
- 5.5 lb
- Height
- 4.25 lb
- Weight
- 1.25 lb
- ASIN
- B00AZ6ISL2
- UPC
- 807298028873
- Ships From
- United States
- Brand
- Manley
Frequently Asked Questions
About 696700-1 Manley
01 What is the bore size of the Manley 696700-1?
The bore size is 4.500''.
02 What is the compression height of the piston?
The compression height is 1.270''.
03 What is the weight of the piston?
The piston weight is 621 grams.
04 What is the ASIN for this product?
The ASIN for this product is B00AZ6ISL2.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 807298028873.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Sep 6.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
