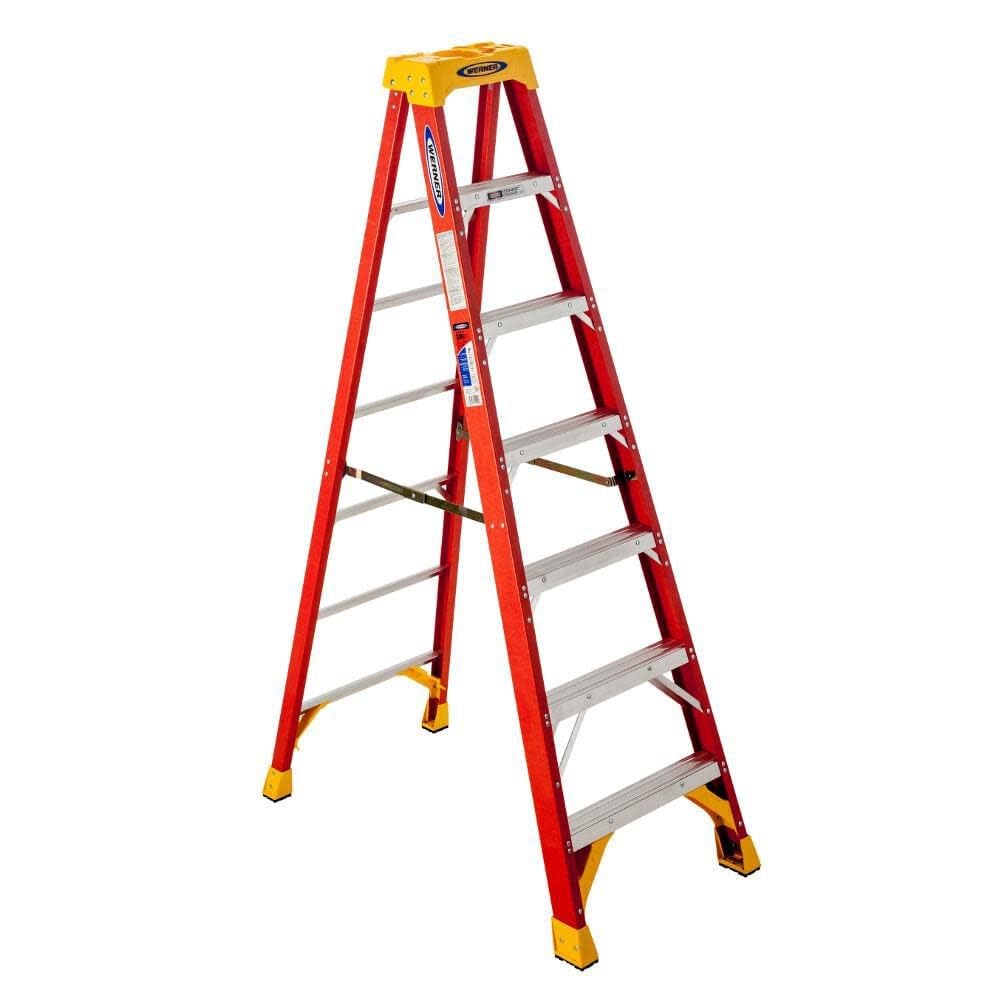

The Werner Orange 6200 Series Fiberglass Step Ladder has a load capacity of 300 lbs.
Type IA Duty Rating.

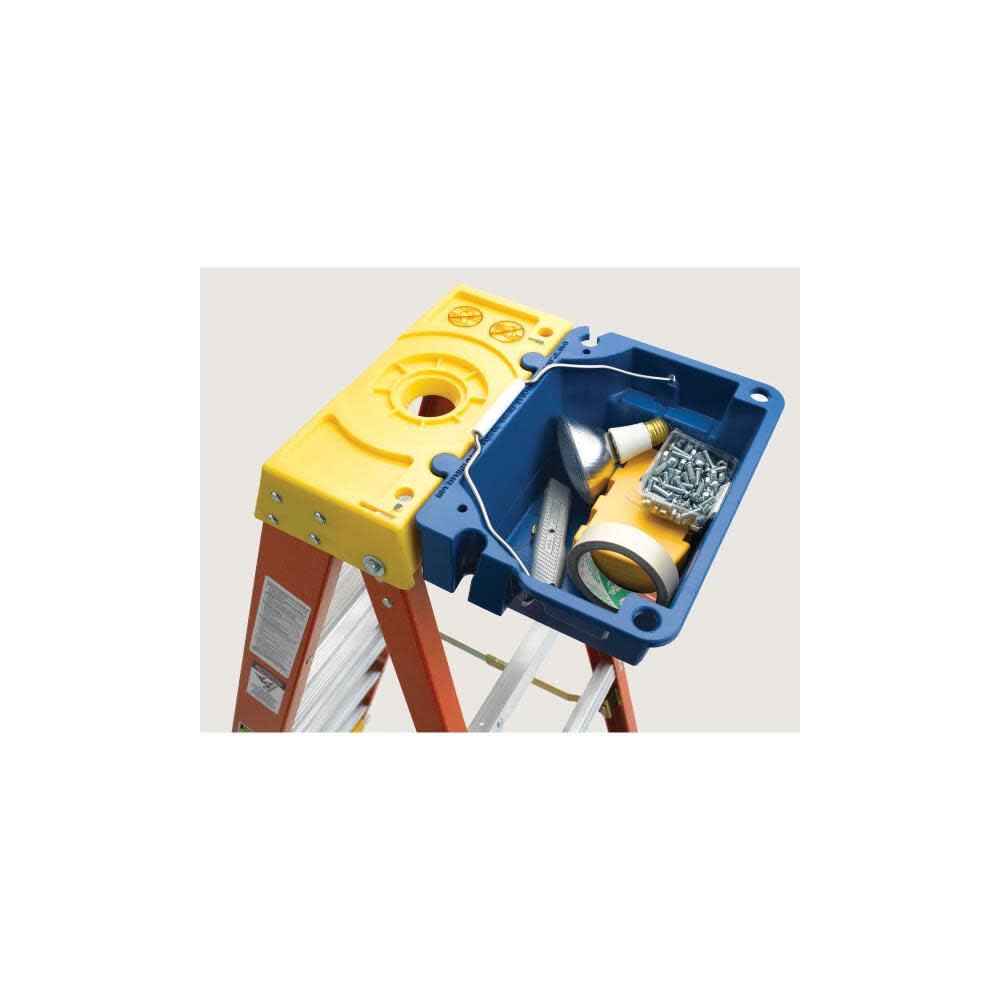

It features a Tool-Tra-Top with a drill holster and a convenient tray for tools.
The top is attached to the front rail with four rivets.
All top connectors are reinforced by back-up plates.
A full set of rear horizontals is spaced one per foot.
Knee-braced are all steps and two rear horizontals.

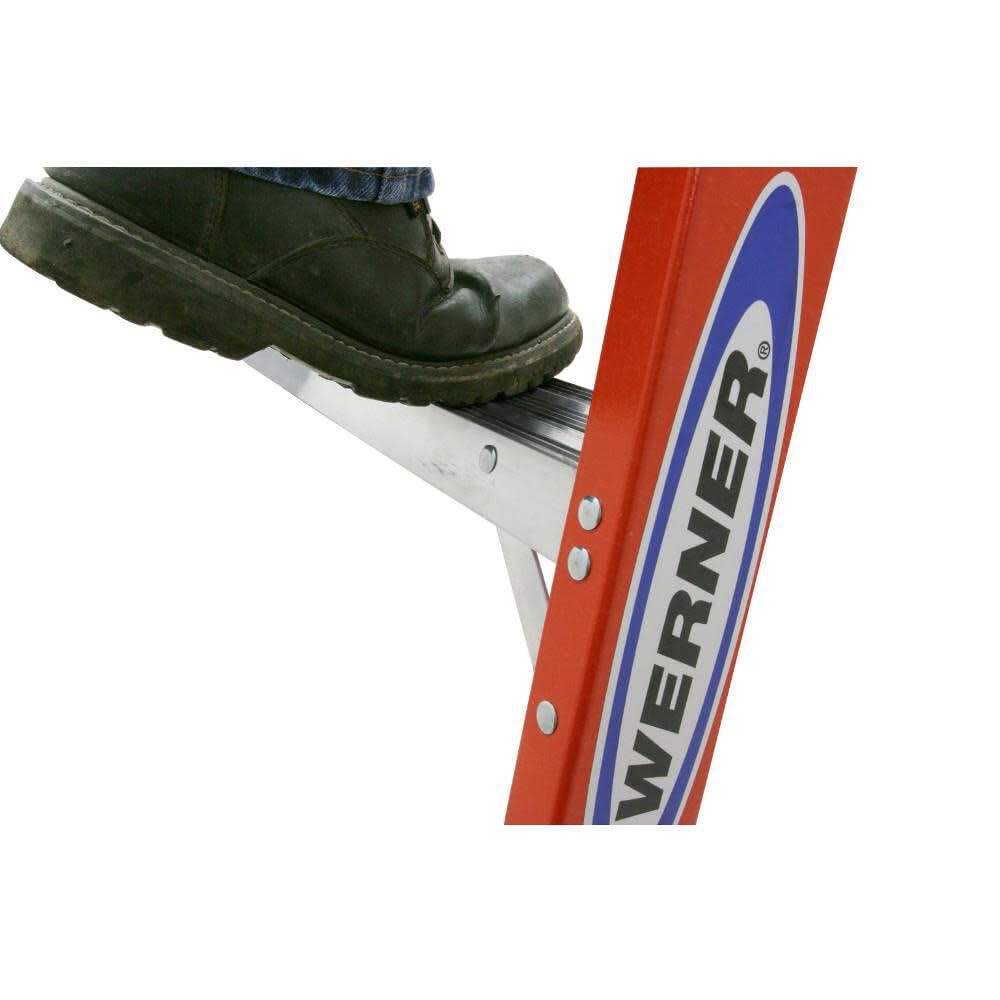

Slip-resistant Traction-Tred steps are double riveted.
Internal spreaders are heavy duty and pinch proof.

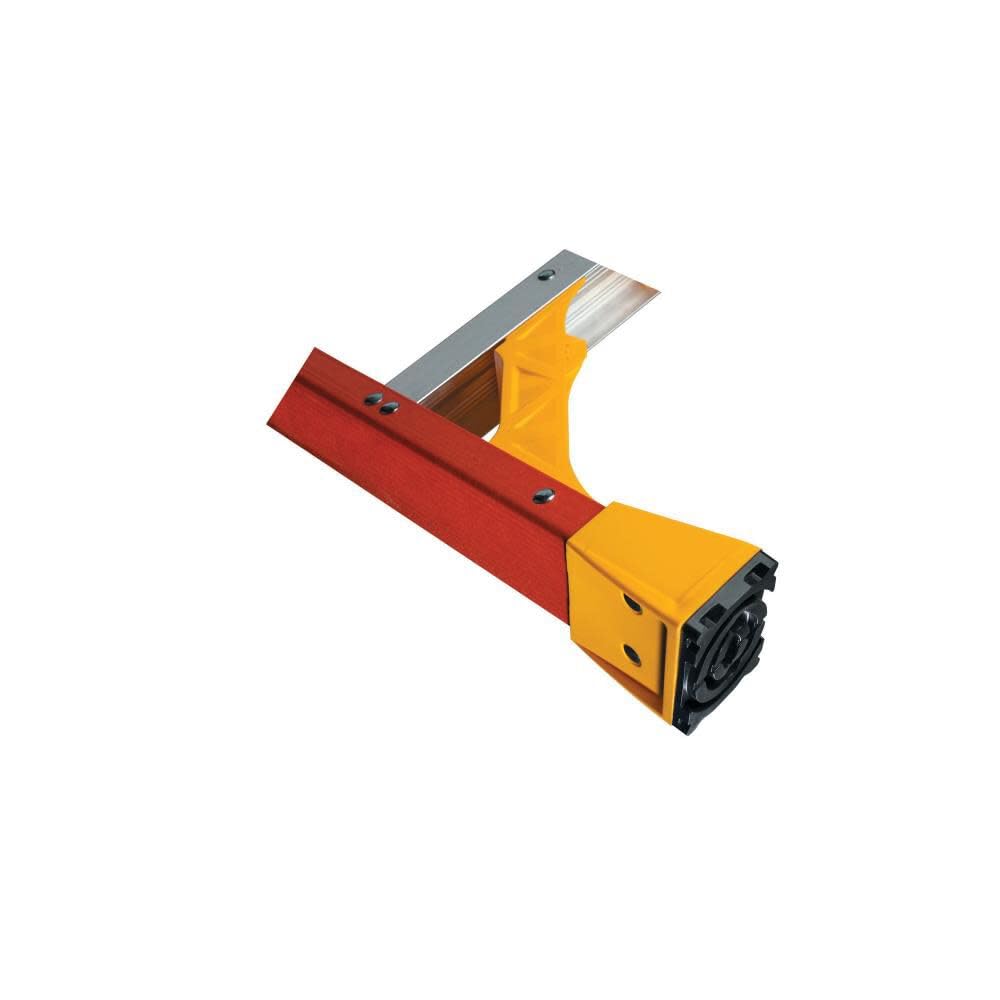

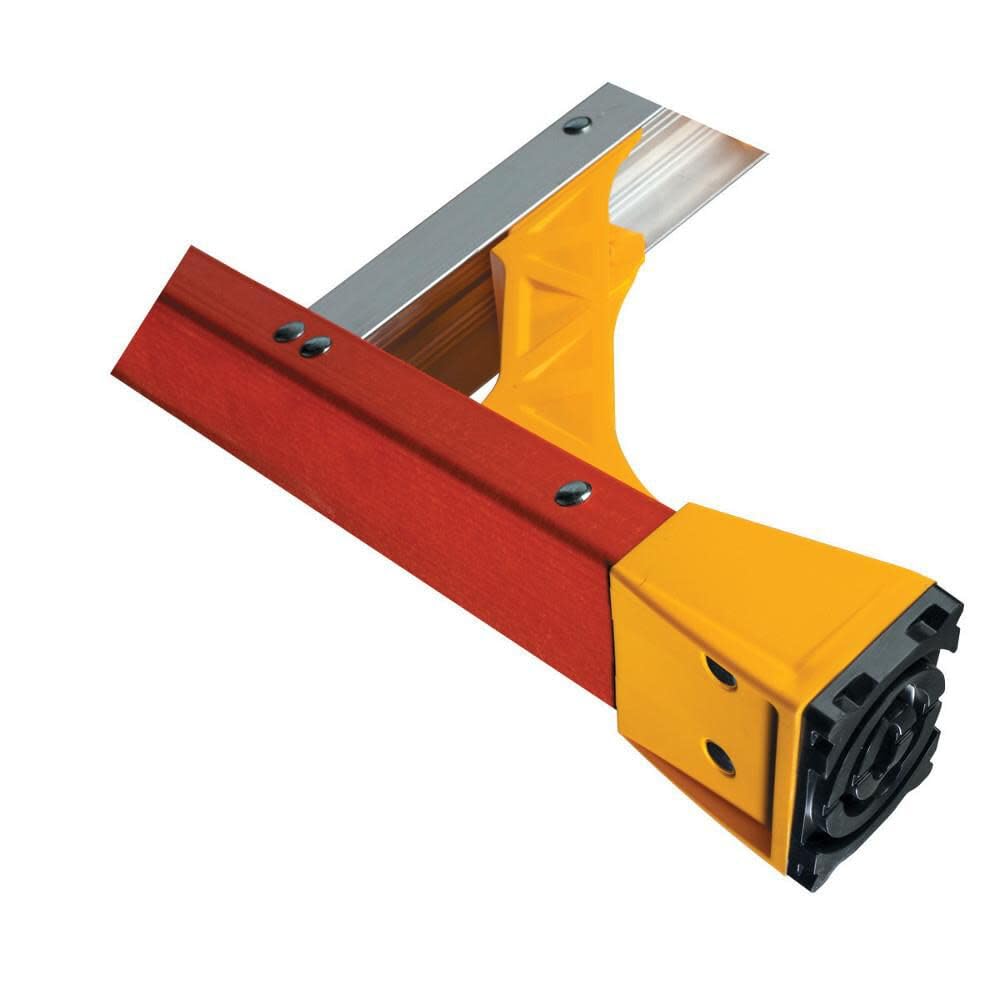

The EDGE molded brace and foot pad combination provides bracing strength and protection against damage.
Every rivet is backed up by a metal part or washers to protect the side rails.
Shoe pads are riveted to the EDGE structure.
An optional pail shelf is available.

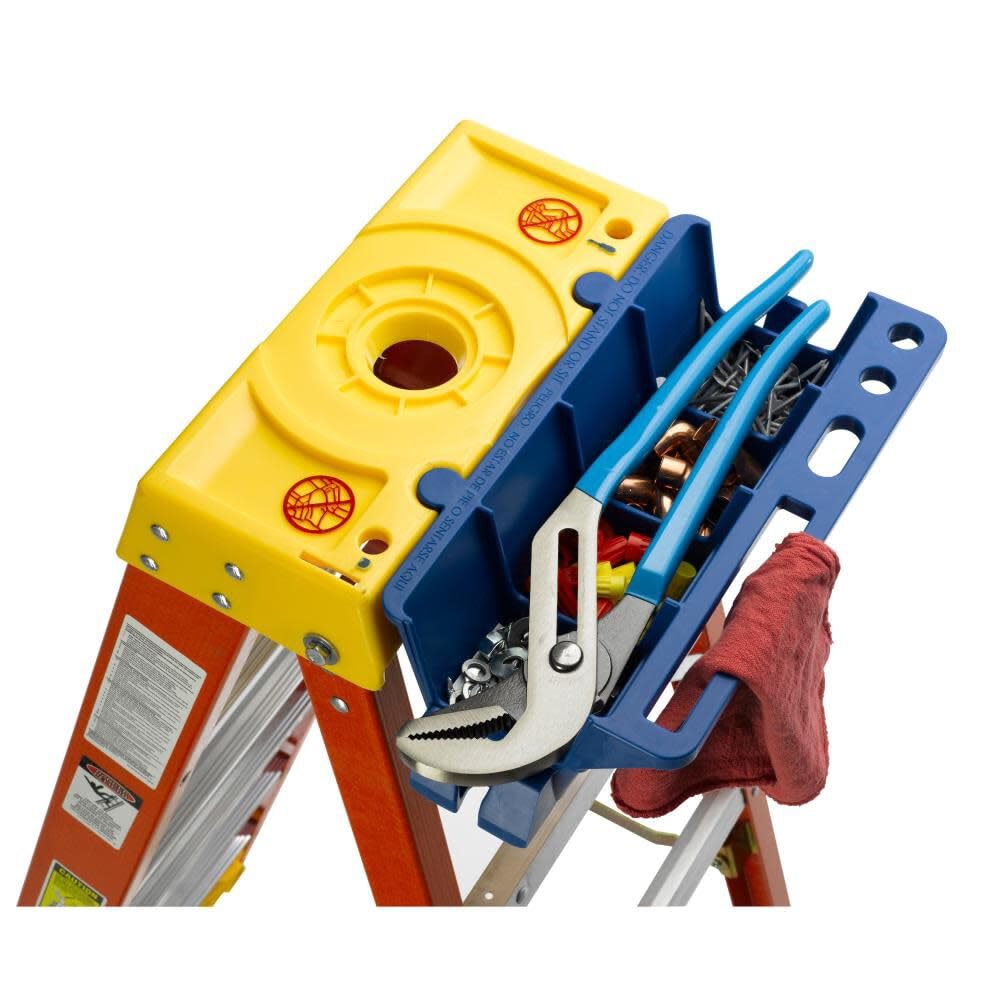

The Holster Top is ToolLasso ready.
A shoulder bolt and nut are on the top hinge.
Each front rail is attached to the top with four rivets.
All steps and two rear horizontals are knee-braced.
The Traction-Tred steps are double riveted and slip-resistant.
Internal spreaders are heavy duty.
A full set of rear horizontals is spaced one per foot.
The shoe pads are riveted to the EDGE molded brace and foot pad combination, which provides bracing strength and protection against damage.
Every rivet is backed up by a metal plate or washer to protect the rails.

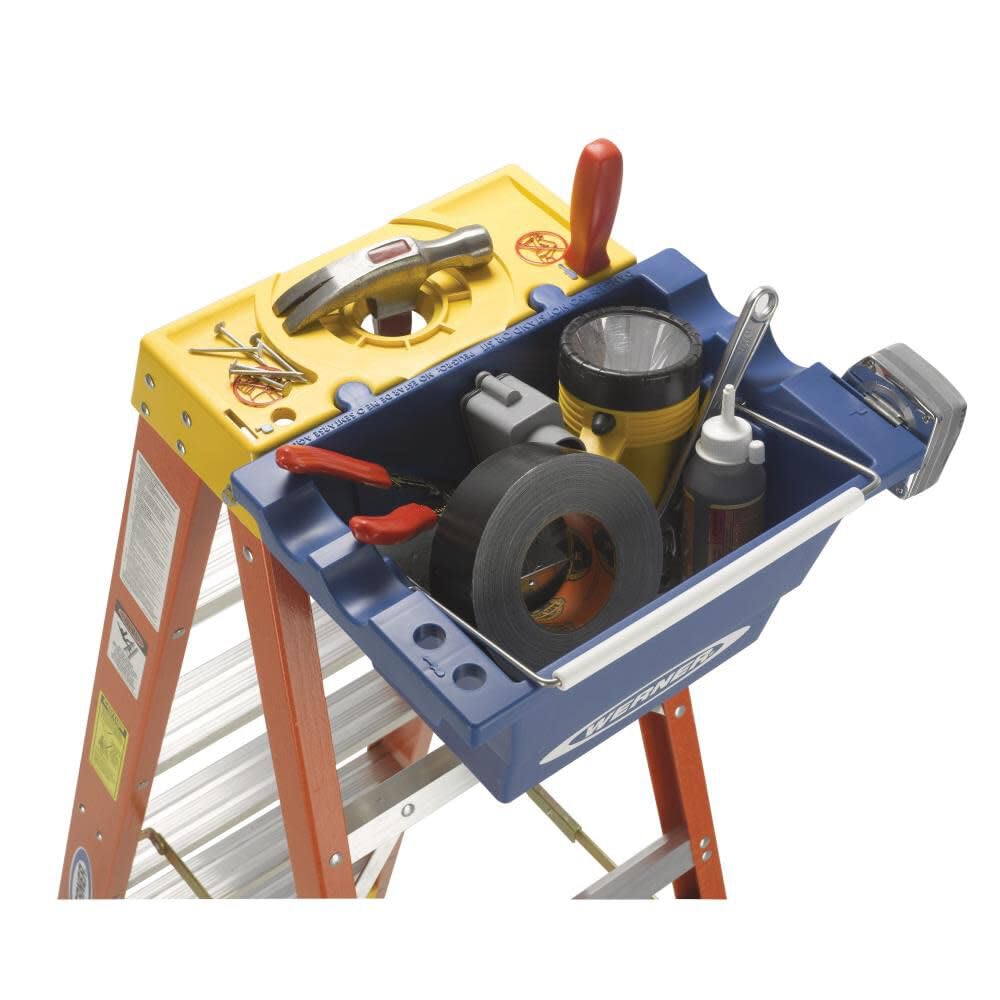

An optional yellow molded pail shelf kit is available.
Size: 7 ft.
Approx.
Width: 25-1/8 in.
Approx.
Spread: 47-1/2 in.
Top: 5-3/4 in.
x 13 in.
Steps: 3 in.
wide.
Front Rails: 3-1/8 in.
wide.
Rear Rails: 1-7/8 in.
wide.
Front Flange: 1-3/16 in.
wide.
Rear Flange: 1-3/16 in.
wide.
