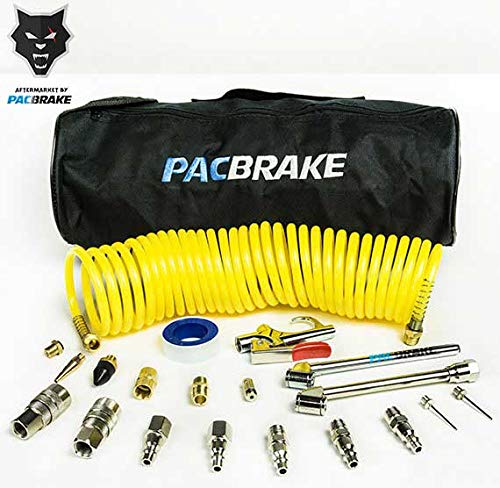

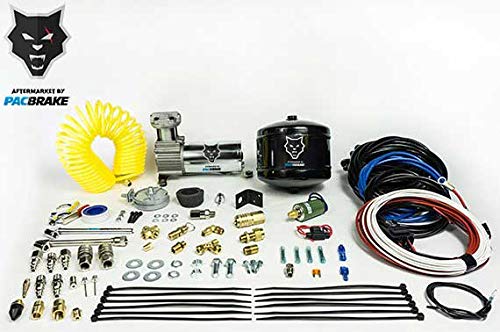

Onboard Air Kit with 1/2 Gallon Air Tank includes an air compressor, aluminum air tank, fittings, pressure switch, relay(s), electrical connectors, and required accessories.
Each Onboard Air System comes complete with a 12V DC compressor (Part Number HP10143), a 1/2 Gallon air tank (Part Number C11940), fittings, pressure switch, relay(s), electrical connectors, and all applicable accessories.

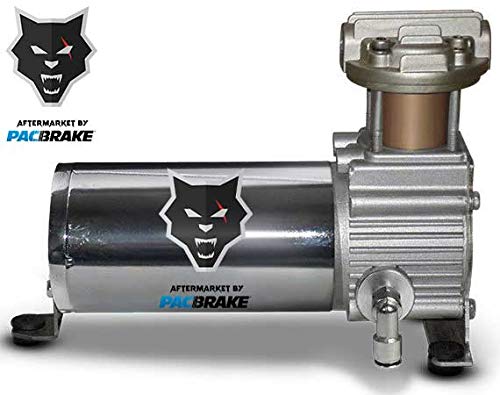

The compressor features a copper wire wound permanent magnet motor, oil-less design, sealed bearings, PTFE piston ring, cast aluminum cylinder head, hard anodized aluminum cylinder, and aluminum sleeve.
Compressor Specifications: Part Number HP10143 - 12 VDC, 100 percent (1 Hour at 100 PSI) duty cycle, 1/4 HP.
Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm.
Weight is 5.5 lbs.
Aluminum Air Tank Specifications (C11940): 0.5 gallon capacity, 2-1/4 inch NPT ports, rust inhibitor applied to inside of tank, max working pressure 150 PSI.
Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH).
Weight is 3.4 lbs.
Welded on mounting brackets.
