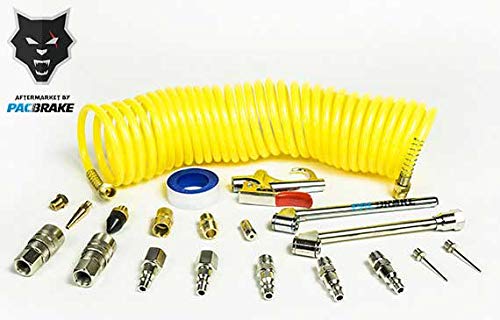

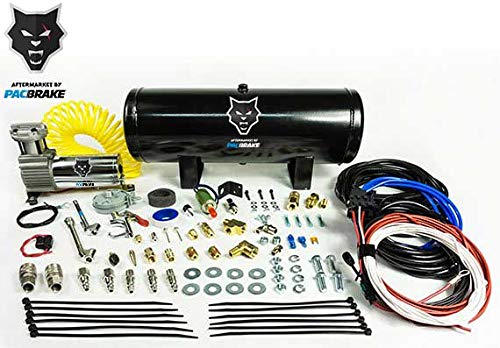

Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay(s), electrical connectors, and required accessories.
Each Onboard Air System comes complete with: HP325 Series 12V DC compressor (Part Number HP10143), 2 1/2 Gallon air tank (Part Number HP10013), fittings, pressure switch, relay(s), electrical connectors, and all applicable accessories.

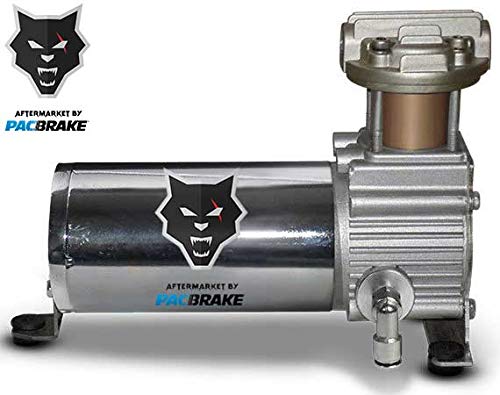

Compressor Specifications (Part Number HP10143) - 12 VDC, 100 percent (1 Hour at 100 PSI) duty cycle, 1/4 HP.
Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm.
Weight is 5.5 lbs.
Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.
Aluminum Air Tank Specifications (HP10013) - 2 1/2 gallon capacity, 5-3/8' NPT ports, rust inhibitor applied to inside of tank, max working pressure 150 PSI.
Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH).
Weight is 9.8 lbs.
Welded on mounting brackets.
