AirDog II-4G PureFlow 2019+ Dodge Cummins DF-100-4G Fuel Pump (A6SPBD255)

More about this item : AirDog II-4G PureFlow 2019+ Dodge Cummins DF-100-4G Fuel Pump (A6SPBD255)

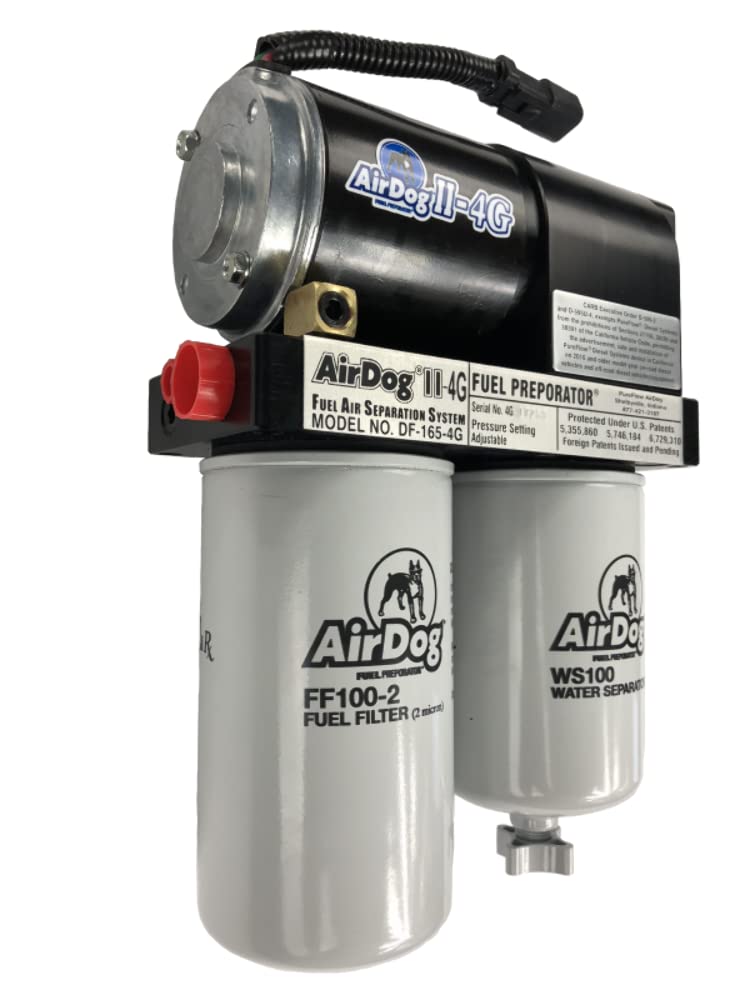

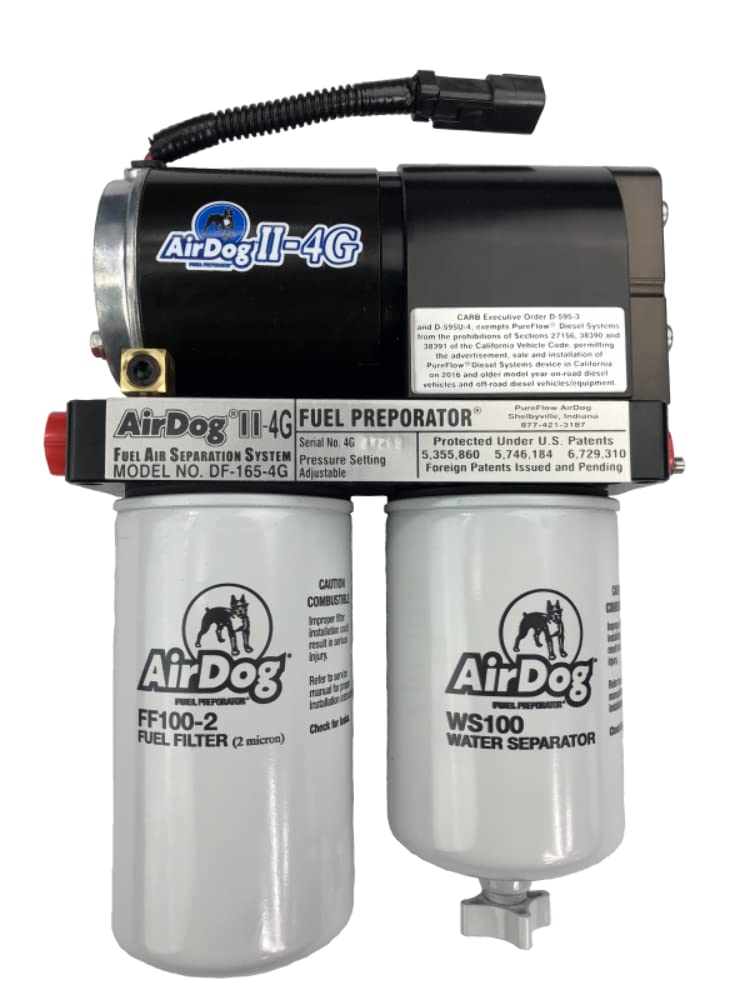

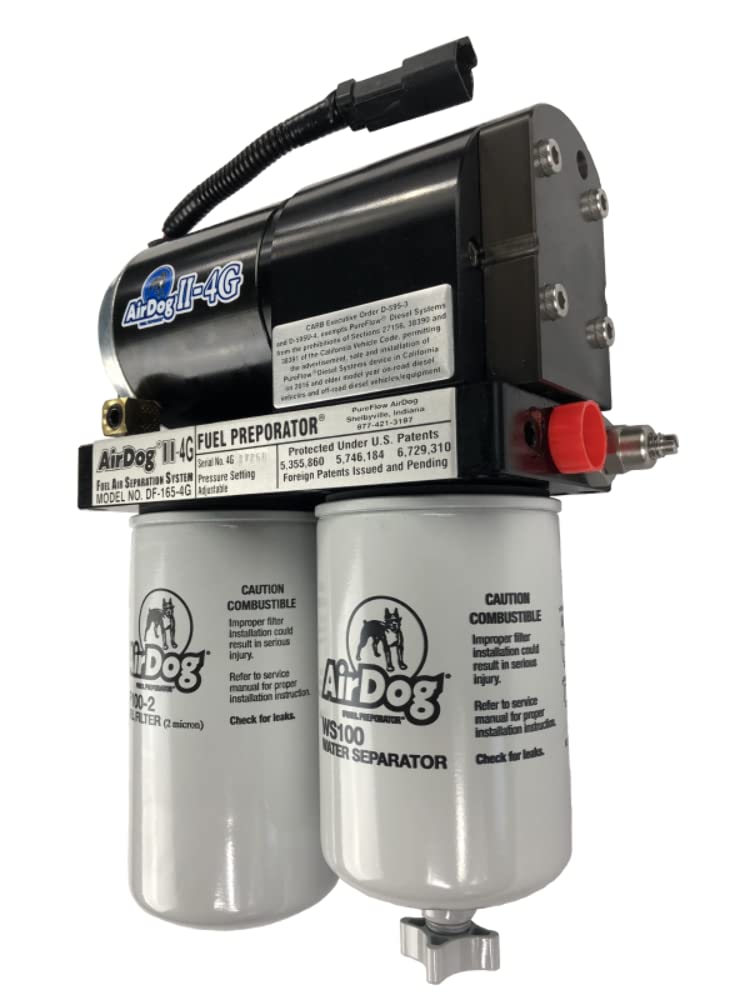

The AirDog II-4G DF-100 fuel system is designed for the 2019-2020 RAM with the 6.7 Cummins.

This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.

A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting.

This will bypass the factory in-tank lift pump.

The pressure side connects directly into the factory fuel filter housing.

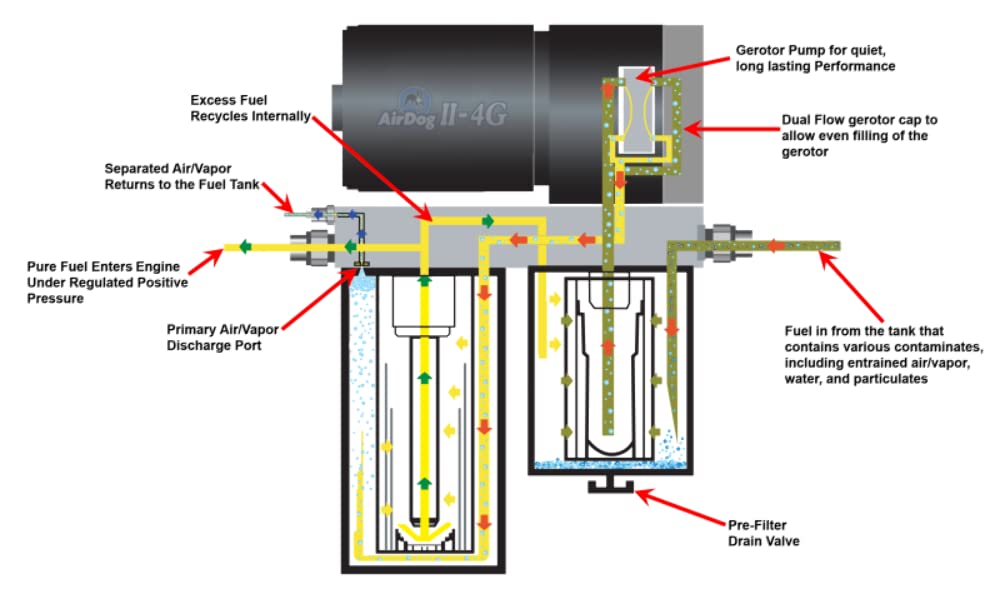

The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified.

This system is a 100GPH (Gallon Per Hour) lift pump for stock fuel trucks.

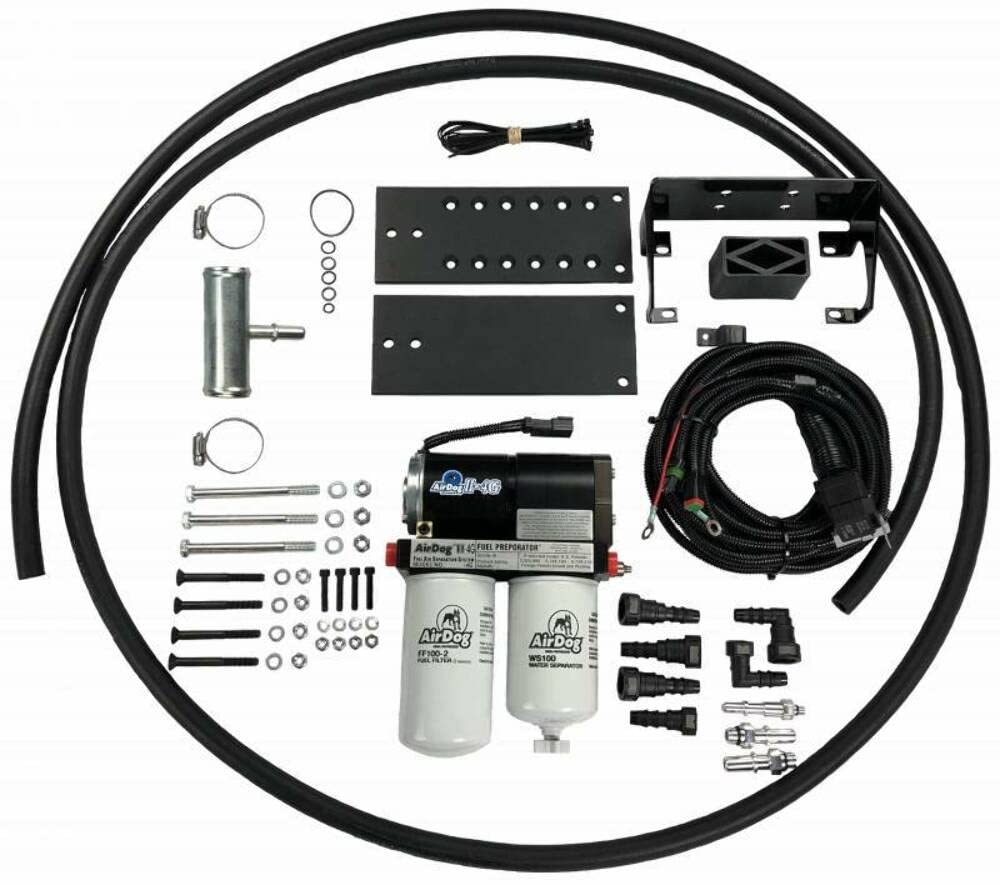

Check out the installation manual for a list of parts included with this kit.
