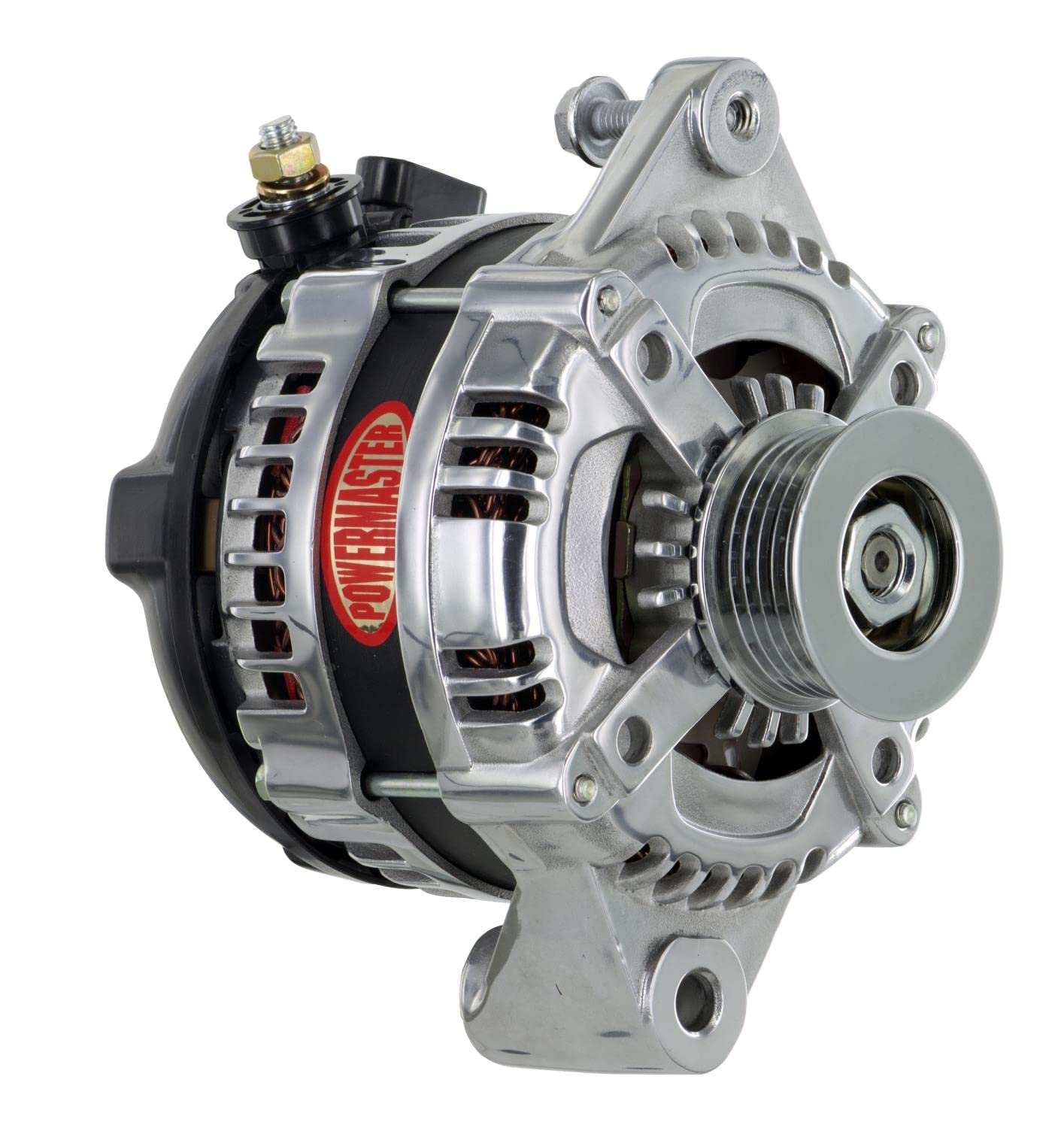

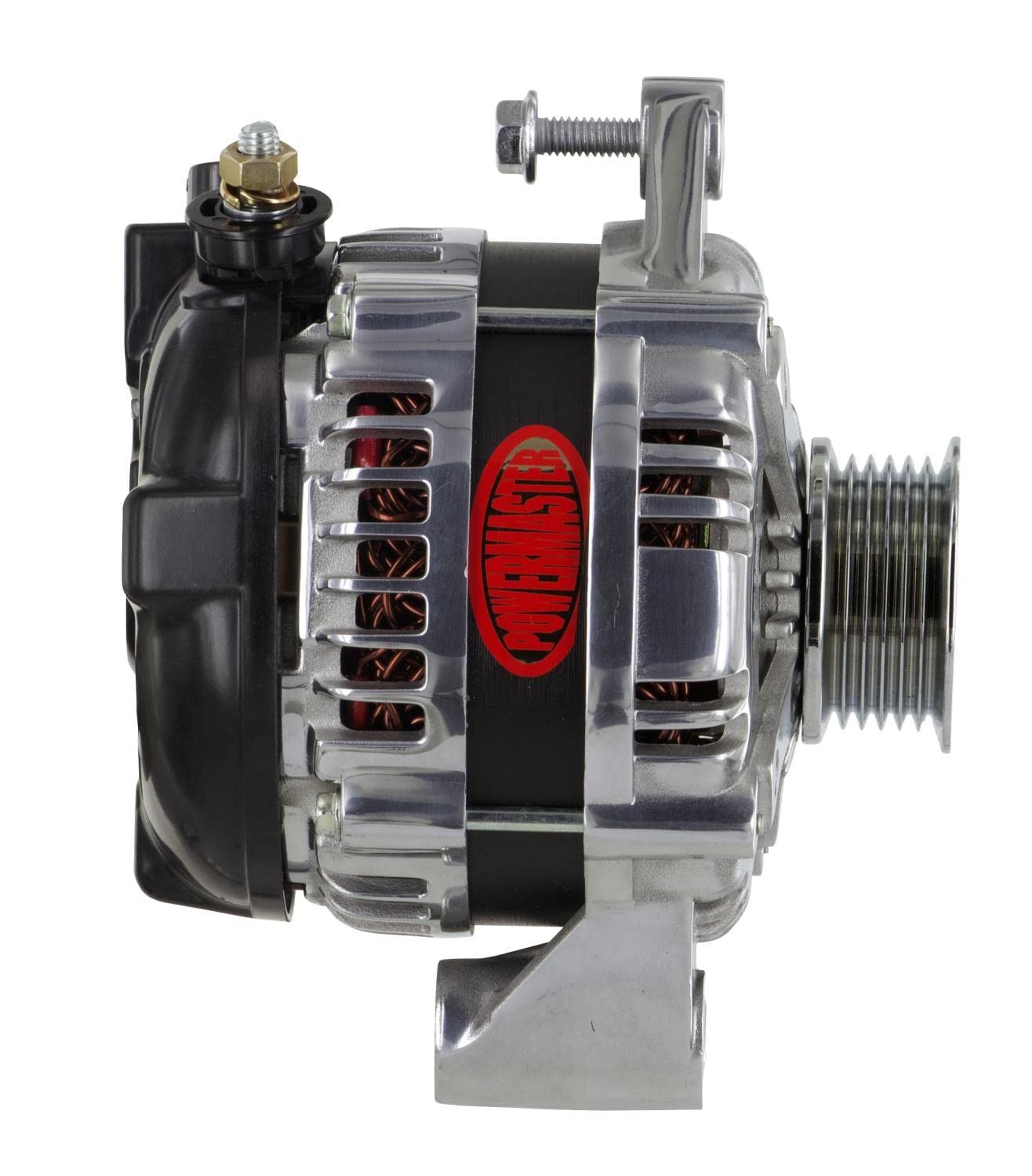

ALT Powermaster GM Polished 180A 6 grv HPR

For most people, the only rating of an alternator they are familiar with is the amperage rating.

Alternators are referred to as a 65 amp or 100 amp alternator.

When replacing the alternator on the family car, this is probably the only information necessary.

After all, all one needs is an alternator that matches the original.

However, when building a custom car from the ground up, a deeper understanding of the power curve of an alternator is required.

Usually, a custom pulley or so-called 'power pulley' set is used with a performance alternator.

A mismatched pulley ratio and alternator will spell trouble, especially at idle speeds where alternator performance is critical.

To avoid this, it is important to understand the capability of the alternator at slow speeds.

An alternator's output is dependent on speed, but this can be deceiving because this output is not linear.

Instead, it follows a curve.

Each alternator has a unique curve, and at idle, small changes in the speed of the alternator can make a big difference in its output capacity.

Because of the preceding, pulley ratios are very important, especially when using high amperage alternators.

The pulleys supplied with the alternator are matched to the winding and power curve.

It is important that any dress-up pulley sets do not deviate from this ratio.

Typically, a street-driven car should have a pulley ratio of at least 3:1.

If the vehicle has an automatic transmission with a low idle and spends a lot of time cruising, then a higher pulley ratio - perhaps 3.5:1 - should be used.

Alternators can take high speeds up to 20,000 RPMs for short periods, so overdriving the unit is not a problem.

The output of high amp alternators can drop off substantially under 2400 rotor RPMs.

Therefore, Powermaster does not recommend power pulleys with high amp alternators.

Powermaster uses a state-of-the-art computer alternator dyno to measure the performance of each alternator manufactured.

Output curves, engine idle speeds, and alternator pulley ratios are carefully considered to assure good drivability at idle and slow cruising speeds.
