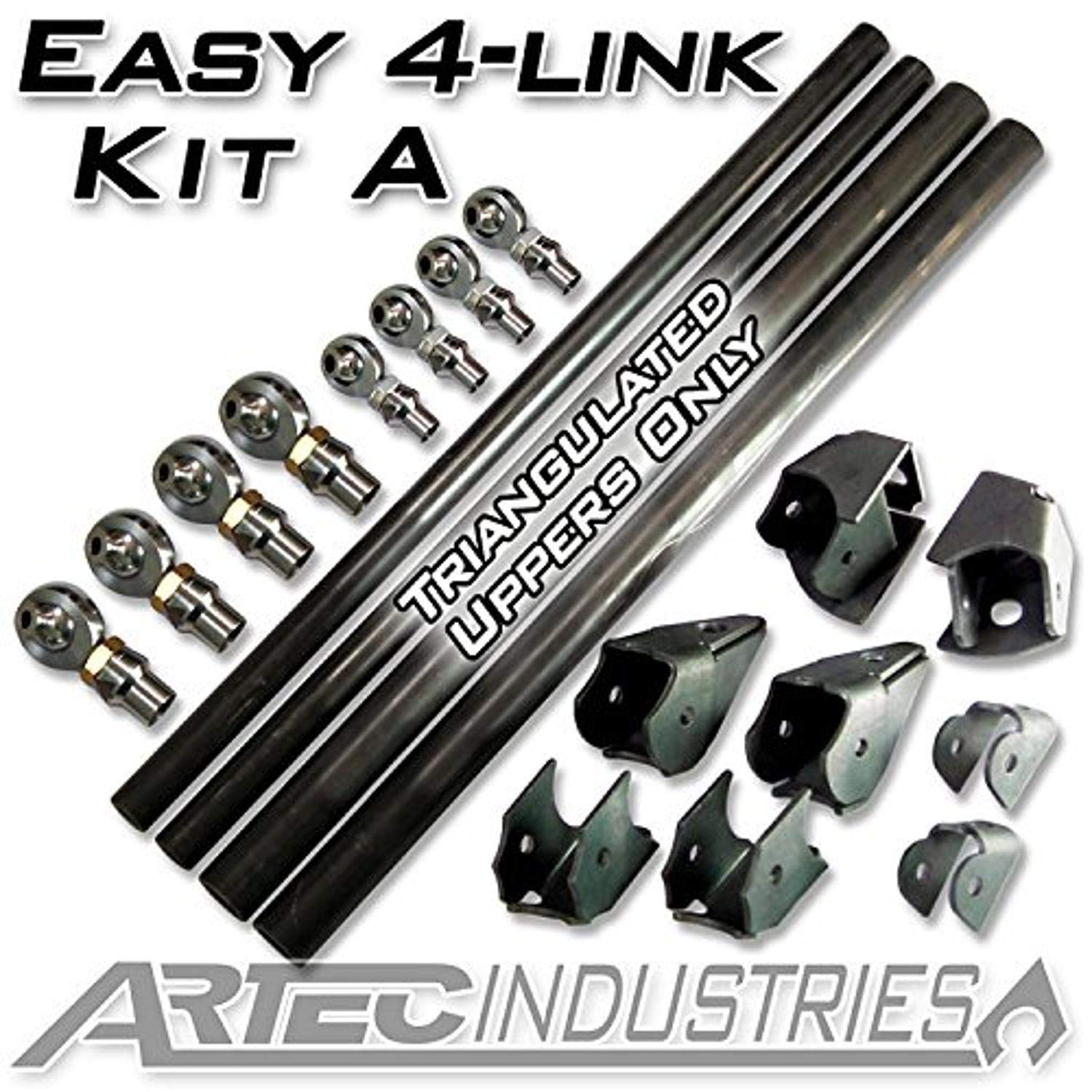

Kit A of the Easy 4 Link features triangulated adjustable uppers.
Based on our most popular parts, this kit is designed for a single triangulated 4-link with angled upper control arms and straight or slightly angled lowers.
The brackets in this kit allow for separate upper and lower mounts on the frame side for customizable 4-link setups.
The strongest and longest lasting heat and cryogenically treated chromo rod ends are included.
The tube adapters feature machined wrench flats for easy adjustments and conform to the outer diameter of the tubing it welds to.
Included stainless steel high misalignment spacers allow for maximum articulation in the rod end.
This kit offers optional four-foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your vehicle.
Drilling of lower link holes to 3/4 inch is required unless 9/16 inch bolts are specified for the lower links.
Features: Sold as Kit Tubing: No Tubing Upper Link Size: 1.2 inch rod end with 2.0 inch Tube Includes: 2 RH, 2 LH - 7/8 inch-14TPI X 3/4 inch Bore Rod Ends 2 RH, 2 LH - 7/8 inch-14TPI Tube Adapters 2 RH, 2 LH - 7/8 inch-14TPI Jam Nuts 8 - 3/4 inch-9/16 inch Wide High Misalignment Spacers 2 RH, 2 LH - 1.25 inch-12TPI X 1.0 inch Bore Rod Ends 2 RH, 2 LH - 1.25 inch-12tpi Tube Adapters 2 RH, 2 LH - 1.25 inch-12TPI Jam Nuts 8 - 1.0 inch-3/4 inch High Misalignment Spacers 1 - Pair of Dual 4-link Brackets 1 - Pair Lower Link Axle Brackets 1 - Pair Truss Upper Link Mounts (2.63 inch) 2 - 4 ft 1.5 inch OD .250 inch thick DOM tubing (optional) 2 - 4 ft 2.0 inch OD .250 inch thick DOM tubing (optional).
